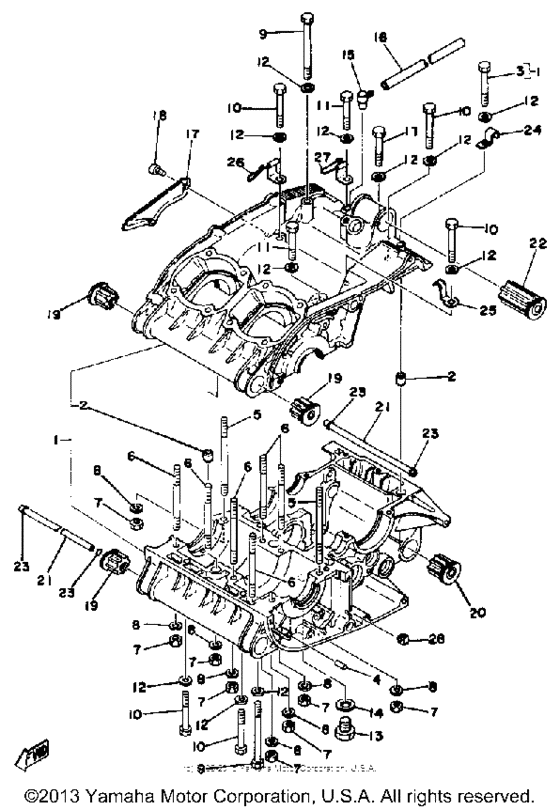

Crankcase Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-15100-01-00
Crankcase Assembly
|
1A1-15100-01-00 |
— | ||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
3
|
3
97313-06055-00 Bolt,w Wash |
97313-06055-00 |
from US $4.11 |
||
| replacements | |||||
|
3
|
3
97595-06555-00 Bolt, With Washer |
97595-06555-00 |
from US $4.11 |
||
|
3
|
3
97E95-06555-00 Bolt, Hexagon W/w Deep Recess |
97E95-06555-00 |
from US $1.21 |
||
|
4
|
4
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $1.98 |
||
|
5
|
5
90116-08232-00 Bolt, Stud (1A1) |
90116-08232-00 |
from US $9.63 |
||
|
6
|
6
90116-08064-00 Bolt, Stud |
90116-08064-00 |
from US $3.64 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
8
|
8
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
9
|
9
97311-06090-00 Bolt (4L3) |
97311-06090-00 |
from US $1.53 |
||
| replacement | |||||
|
9
|
9
97017-06090-00 Bolt(3Gg) |
97017-06090-00 |
from US $2.55 |
||
|
10
|
10
97313-06055-00 Bolt,w Wash |
97313-06055-00 |
from US $4.11 |
||
| replacements | |||||
|
10
|
10
97595-06555-00 Bolt, With Washer |
97595-06555-00 |
from US $4.11 |
||
|
10
|
10
97E95-06555-00 Bolt, Hexagon W/w Deep Recess |
97E95-06555-00 |
from US $1.21 |
||
|
11
|
11
97313-06045-00 Bolt, Hexagon |
97313-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
11
|
11
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
12
|
12
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
13
|
13
90109-14385-00 Bolt |
90109-14385-00 |
from US $9.63 |
||
|
14
|
14
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
15
|
15
583-15371-00-00 Breather |
583-15371-00-00 |
from US $1.34 |
||
|
16
|
16
904-46072-41-00 Hose (3Ak)3AK |
904-46072-41-00 |
from US $3.40 |
||
|
17
|
17
278-15492-01-00 Cover |
278-15492-01-00 |
from US $6.09 |
||
|
18
|
18
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
19
|
19
1A1-15316-00-00
Damper, Eng Mount 1
|
1A1-15316-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
1A1-15326-00-00
Damper, Eng Mount 2
|
1A1-15326-00-00 |
— | ||
|
21
|
21
1A1-15317-00-00
Spacer, Eng Mount
|
1A1-15317-00-00 |
— | ||
|
22
|
22
1A1-15336-00-00
Damper, Eng Mount 3
|
1A1-15336-00-00 |
— | ||
|
23
|
23
93210-11073-00 O-Ring |
93210-11073-00 |
from US $1.70 |
||
|
24
|
24
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
25
|
25
904-62060-25-00
Clamp
|
904-62060-25-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
90465-06093-00
Clamp
|
90465-06093-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
90465-06094-00 Clamp |
90465-06094-00 |
from US $7.51 |
||
|
28
|
28
90480-01148-00
Grommet 136825450000
|
90480-01148-00 |
— | ||
