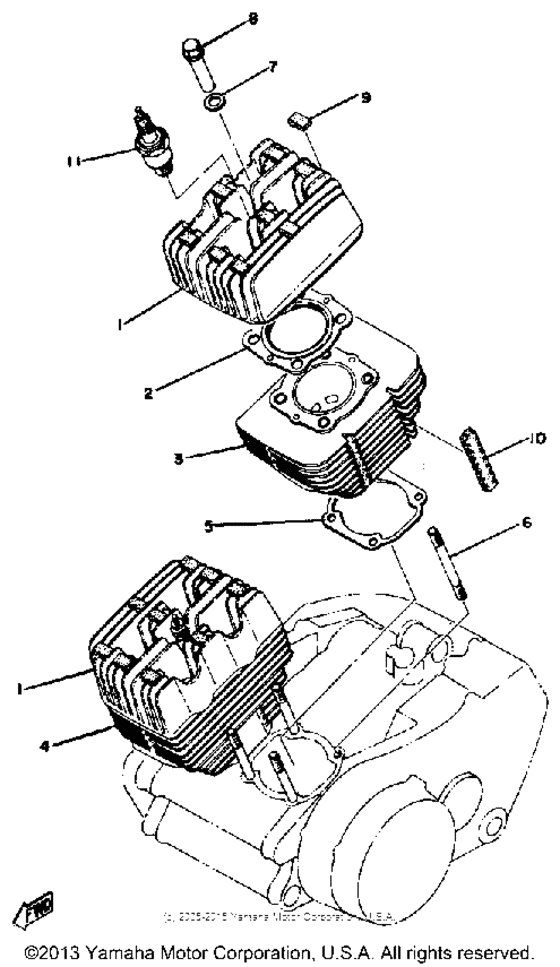

Cylinder head & cylinder Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-11111-00-00
Head, Cylinder 1
|
1A1-11111-00-00 |
— | ||
|
2
|
2
1A1-11181-00-00
Gasket, Cylinder Head 1
|
1A1-11181-00-00 |
— | ||
|
3
|
3
1A1-11311-00-00
Cylinder 1
|
1A1-11311-00-00 |
— | ||
|
4
|
4
1A1-11321-00-00
Cylinder 2
|
1A1-11321-00-00 |
— | ||
|
5
|
5
278-11351-01-00 Gasket, Cylinder |
278-11351-01-00 |
from US $8.36 |
||
| replacement | |||||
|
5
|
5
278-11351-11-00 Gasket, Cylinder |
278-11351-11-00 |
from US $6.46 |
||
|
6
|
6
90116-08232-00 Bolt, Stud (1A1) |
90116-08232-00 |
from US $9.63 |
||
|
6
|
6
1A1-00000-20-00
Gskt Kit Rd400C/d
FOR KIT COMPONENT |
1A1-00000-20-00 |
— | ||
|
7
|
7
90201-12362-00 Washer, Plate |
90201-12362-00 |
from US $1.70 |
||
|
8
|
8
90179-08026-00
Nut, Spec''l Shape
|
90179-08026-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
521-11161-01-00 Absorber 1 |
521-11161-01-00 |
from US $7.37 |
||
|
10
|
10
1A0-11162-02-00
Absorber 2 (1A0-11162-01)
1A0-11162-01 |
1A0-11162-02-00 |
— | ||
|
11
|
11
NGK-B8ES0-00-00
B8Es Ngk Splug 10P
10P |
NGK-B8ES0-00-00 |
— | ||
| replacements | |||||
|
11
|
11
B8E-S0000-00-00 UNI CVR XA800A/ XA1210P |
B8E-S0000-00-00 |
US $4.23 |
||
|
11
|
11
BR8-ES000-00-00 Spark plug BR8ES10P |
BR8-ES000-00-00 |
US $20.32 |
||
