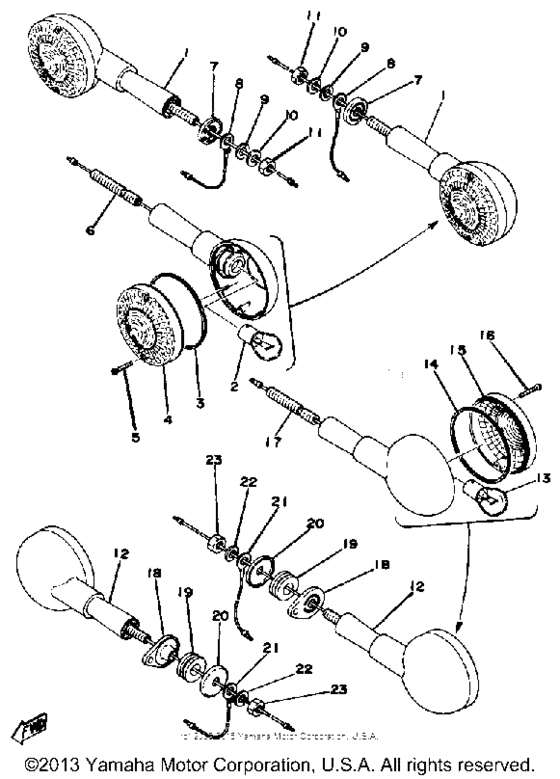

Flasher lamp Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4G5-83310-90-00
Front Flasher Assembly
|
4G5-83310-90-00 |
— | ||
|
2
|
2
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
3
|
3
3Y6-83313-00-00 Gasket, Flshr Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
4
|
4
341-83312-70-00 Lens, Flasher |
341-83312-70-00 |
from US $7.28 |
||
|
5
|
5
341-83333-70-00 Screw, Special |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
5
|
5
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
5
|
5
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
6
|
6
360-83367-09-00
Bolt, Stud
|
360-83367-09-00 |
— | ||
|
7
|
7
360-83316-00-00
Collar, Flasher 1
|
360-83316-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
256-84313-01-00
Wire, Earth
|
256-84313-01-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
10
|
10
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
11
|
11
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
12
|
12
360-83330-21-93 R Flshr Lite Assembly |
360-83330-21-93 |
US $144.25 |
||
| replacement | |||||
|
12
|
12
1E5-83330-20-93
R Flshr Lite Assembly
|
1E5-83330-20-93 |
— | ||
|
12
|
12
360-83330-71-93
R Flshr Lite Assembly
|
360-83330-71-93 |
— | ||
|
13
|
13
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
14
|
14
3Y6-83313-00-00 Gasket, Flshr Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
15
|
15
341-83312-70-00 Lens, Flasher |
341-83312-70-00 |
from US $7.28 |
||
|
15
|
15
341-83332-70-00
Lens, Flasher
|
341-83332-70-00 |
— | ||
|
16
|
16
341-83333-70-00 Screw, Special |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
16
|
16
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
16
|
16
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
17
|
17
360-83367-09-00
Bolt, Stud
|
360-83367-09-00 |
— | ||
|
18
|
18
360-83326-00-00
Collar, Flasher 2
|
360-83326-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
904-80181-28-00 Grommet |
904-80181-28-00 |
from US $3.26 |
||
| replacement | |||||
|
19
|
19
90480-18488-00 Grommet |
90480-18488-00 |
from US $3.26 |
||
|
20
|
20
90201-08612-00 Washer, Plate |
90201-08612-00 |
from US $2.69 |
||
| replacement | |||||
|
20
|
20
90201-088C4-00
Washer, Plate
|
90201-088C4-00 |
— | ||
|
21
|
21
256-83336-01-00
Cord
|
256-83336-01-00 |
— | ||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
23
|
23
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
