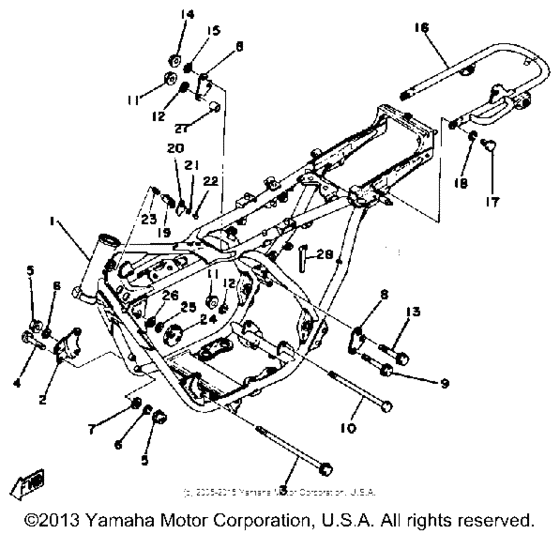

Frame Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-21110-00-33
Frame
|
1A1-21110-00-33 |
— | ||
|
2
|
2
1A0-21317-00-00
New Genuine Part
IN PRICE BOOK |
1A0-21317-00-00 |
— | ||
|
3
|
3
901-05080-33-00
Bolt, Washer Based
|
901-05080-33-00 |
— | ||
|
4
|
4
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
4
|
4
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
5
|
5
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
8
|
8
1A1-21315-00-00
Stay, Engine 2
|
1A1-21315-00-00 |
— | ||
|
9
|
9
95811-10070-00 Bolt, Flange (95812-10070-00) |
95811-10070-00 |
from US $2.69 |
||
| replacement | |||||
|
9
|
9
95817-10070-00 Bolt, Flange(7Lu) |
95817-10070-00 |
from US $2.69 |
||
|
9
|
9
958-21100-80-00 Bolt, Flange |
958-21100-80-00 |
from US $3.71 |
||
| replacement | |||||
|
9
|
9
958-17100-80-00 Bolt, Flange |
958-17100-80-00 |
from US $4.39 |
||
|
10
|
10
901-01102-97-00
Bolt
|
901-01102-97-00 |
— | ||
|
11
|
11
957-01105-00-00
Nut, With Washer
|
957-01105-00-00 |
— | ||
| replacements | |||||
|
11
|
11
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.07 |
||
|
11
|
11
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
12
|
12
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
13
|
13
95811-08070-00 Bolt, Flange |
95811-08070-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08070-00 Bolt, Flange(Jn5) |
95817-08070-00 |
from US $1.07 |
||
|
14
|
14
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
14
|
14
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
16
|
16
1A0-21645-01-00
Stay, Rear
|
1A0-21645-01-00 |
— | ||
|
17
|
17
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
17
|
17
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
17
|
17
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
19
|
19
2A6-23408-00-00 Steering Lock Assy |
2A6-23408-00-00 |
from US $77.92 |
||
|
20
|
20
3DM-23484-00-00 Cap, Handle Lock |
3DM-23484-00-00 |
from US $11.05 |
||
|
21
|
21
90206-04003-00
Washer, Wave
214-23488-00 |
90206-04003-00 |
— | ||
|
22
|
22
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
23
|
23
90502-09024-00 Spring, Conical |
90502-09024-00 |
from US $2.55 |
||
|
24
|
24
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
25
|
25
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
26
|
26
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
27
|
27
903-87121-01-00
Collar
|
903-87121-01-00 |
— | ||
|
28
|
28
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
