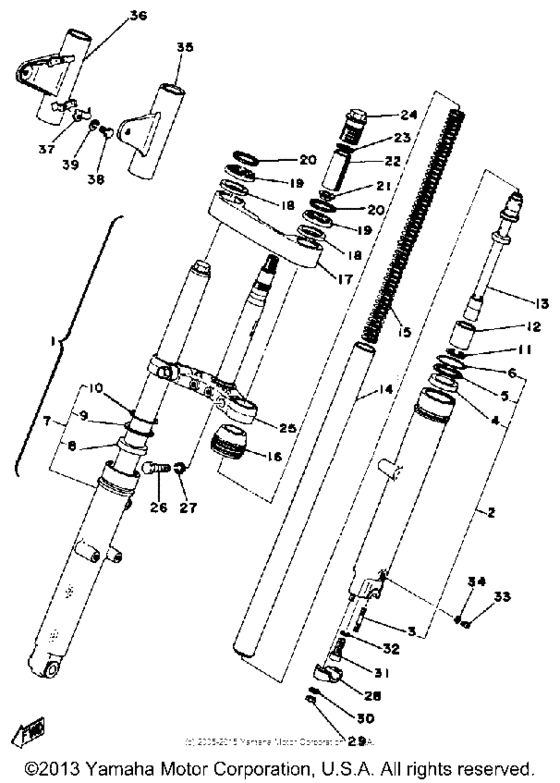

Front fork Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-23101-01-00
Front Fork Assembly
|
1A0-23101-01-00 |
— | ||
|
2
|
2
1A0-23126-01-00
Tube, Outer 1
|
1A0-23126-01-00 |
— | ||
|
3
|
3
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
4
|
4
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
4
|
4
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
5
|
5
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
1A0-23136-01-00
Tube, Outer 2
|
1A0-23136-01-00 |
— | ||
|
8
|
8
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
8
|
8
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
9
|
9
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
934-50300-33-00
Circlip, Inner
|
934-50300-33-00 |
— | ||
|
12
|
12
434-23171-00-00
Piston, Front Fork
|
434-23171-00-00 |
— | ||
|
13
|
13
1A0-23170-01-00
Cylinder, Frtfrk
|
1A0-23170-01-00 |
— | ||
|
14
|
14
1A0-23124-01-00
Tube, Inner 1
|
1A0-23124-01-00 |
— | ||
|
15
|
15
1A1-23141-00-00
Spring, Front Fork (1A0-23141
1A0-23141 |
1A1-23141-00-00 |
— | ||
|
16
|
16
584-23144-50-00 Seal, Dust |
584-23144-50-00 |
from US $32.67 |
||
|
17
|
17
1A0-23122-00-00
Cover, Outer 1
|
1A0-23122-00-00 |
— | ||
|
18
|
18
291-23163-61-00
Gasket (Lamp Stay)
|
291-23163-61-00 |
— | ||
|
19
|
19
2R8-23116-00-00
Guide, Cover Lower
|
2R8-23116-00-00 |
— | ||
|
20
|
20
2R8-23115-00-00
Guide, Cover Upper
|
2R8-23115-00-00 |
— | ||
|
21
|
21
256-23142-60-00
Seat, Spring Upper
|
256-23142-60-00 |
— | ||
|
22
|
22
214-23118-00-00
Spacer
|
214-23118-00-00 |
— | ||
|
23
|
23
214-23114-00-00
Gasket
|
214-23114-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
366-23111-60-00
Bolt, Cap
|
366-23111-60-00 |
— | ||
|
25
|
25
1A2-23340-30-33
Under Bracket
|
1A2-23340-30-33 |
— | ||
|
26
|
26
306-23346-60-00
Bolt 1
|
306-23346-60-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
28
|
28
306-23167-60-00
Holder, Axle
|
306-23167-60-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
29
|
29
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
30
|
30
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
31
|
31
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
31
|
31
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
32
|
32
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
33
|
33
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
34
|
34
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
35
|
35
1A0-23121-01-33
Cover, Upper 1
YAMAHA BLK |
1A0-23121-01-33 |
— | ||
|
36
|
36
1A0-23131-01-33
Cover, Upper 2
YAMAHA BLK |
1A0-23131-01-33 |
— | ||
|
37
|
37
1A0-23164-00-00
Stay, Light Guard
|
1A0-23164-00-00 |
— | ||
|
38
|
38
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
38
|
38
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
