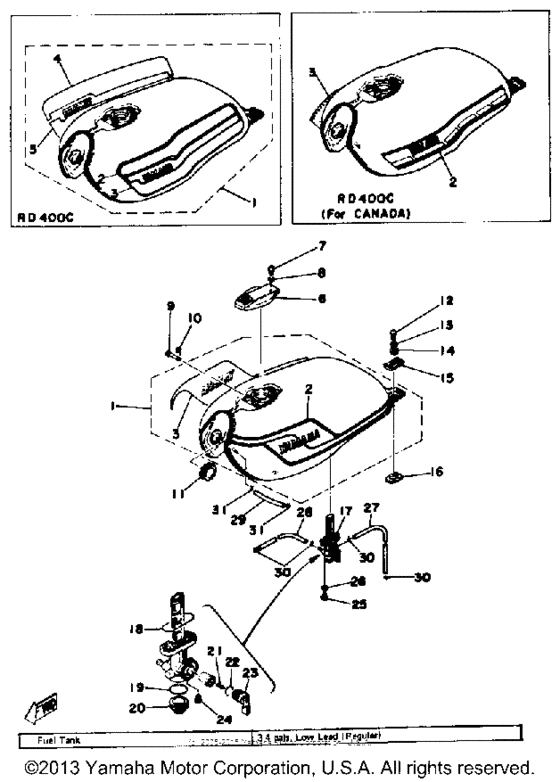

Fuel tank Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-24110-00-07
Fuel Tank
FOR U.S.A.CHAPPY RED |
1A0-24110-00-07 |
— | ||
|
1
|
1
1A1-24110-00-02
New Genuine Part
IN PRICE BOOK FOR CANADAN/A |
1A1-24110-00-02 |
— | ||
|
1
|
1
1A0-24110-00-K6
Fuel Tank
FOR U.S.A.GENEVA GREEN |
1A0-24110-00-K6 |
— | ||
|
1
|
1
1A0-24110-00-G3
Fuel Tank
FOR U.S.AFRENCH BLUE |
1A0-24110-00-G3 |
— | ||
|
2
|
2
1A1-24244-00-00
Graphic, Fuel Tnk 1
FOR U.S.A.CHAPPY RED |
1A1-24244-00-00 |
— | ||
|
2
|
2
1A1-24244-50-00
Graphic, Fuel Tnk 1
FOR U.S.A.FOR CANADACHAPPY RED |
1A1-24244-50-00 |
— | ||
|
2
|
2
1A1-24244-40-00
Graphic, Fuel Tnk 1
FOR U.S.A.FRENCH BLUE |
1A1-24244-40-00 |
— | ||
|
2
|
2
1A1-24244-10-00
New Genuine Part
IN PRICE BOOK FOR CANADAN/A |
1A1-24244-10-00 |
— | ||
|
2
|
2
1A1-24244-30-00
Graphic, Fuel Tnk 1
FOR U.S.A.GENEVA GREEN |
1A1-24244-30-00 |
— | ||
|
3
|
3
1A0-24245-00-00
Graphic, Fuel Tnk 2
FOR U.S.A.CHAPPY RED |
1A0-24245-00-00 |
— | ||
|
3
|
3
1A1-24245-10-00
New Genuine Part
IN PRICE BOOK FOR CANADAN/A |
1A1-24245-10-00 |
— | ||
|
3
|
3
1A1-24245-40-00
Graphic, Fuel Tnk 2
FOR U.S.A.FRENCH BLUE |
1A1-24245-40-00 |
— | ||
|
3
|
3
1A1-24245-50-00
Graphic, Fuel Tnk 2
FOR U.S.A.FOR CANADACHAPPY RED |
1A1-24245-50-00 |
— | ||
|
3
|
3
1A1-24245-30-00
Graphic, Fuel Tnk 2
FOR U.S.A.GENEVA GREEN |
1A1-24245-30-00 |
— | ||
|
4
|
4
1A1-24246-00-00
Graphic, Fuel Tnk 3
FOR U.S.A.CHAPPY RED |
1A1-24246-00-00 |
— | ||
|
4
|
4
1A1-24246-30-00
Graphic, Fuel Tnk 3
FOR U.S.A.GENEVA GREEN |
1A1-24246-30-00 |
— | ||
|
5
|
5
1A0-24247-00-00
Graphic, Fuel Tnk 4
FOR U.S.A.CHAPPY RED |
1A0-24247-00-00 |
— | ||
|
5
|
5
1A1-24247-30-00
Graphic, Fuel Tnk 4
FOR U.S.A.GENEVA GREEN |
1A1-24247-30-00 |
— | ||
|
6
|
6
1E7-24602-00-00 Cap Assembly |
1E7-24602-00-00 |
US $121.93 |
||
|
7
|
7
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
7
|
7
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
90249-03123-00
Pin, Special Shape
|
90249-03123-00 |
— | ||
|
10
|
10
93430-02001-00 Circlip |
93430-02001-00 |
from US $1.84 |
||
|
11
|
11
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
902-09061-39-00
Washer, Special Shape
|
902-09061-39-00 |
— | ||
|
15
|
15
1A0-24186-00-00 Washer, Special |
1A0-24186-00-00 |
from US $7.45 |
||
|
16
|
16
1A0-24181-00-00 Damper, Locating 1 |
1A0-24181-00-00 |
from US $9.34 |
||
|
17
|
17
4L0-24500-00-00 Fuel Cock Assembly 1 |
4L0-24500-00-00 |
from US $201.73 |
||
|
18
|
18
214-24512-00-00 Gasket |
214-24512-00-00 |
from US $21.11 |
||
|
19
|
19
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
20
|
20
1A0-24521-01-00 Cup, Filter |
1A0-24521-01-00 |
US $32.87 |
||
|
21
|
21
1A0-24529-01-00 Spring |
1A0-24529-01-00 |
from US $4.56 |
||
|
22
|
22
1A0-24512-00-00 Gasket |
1A0-24512-00-00 |
from US $9.85 |
||
|
23
|
23
1A0-24524-01-00
Lever, Cock
|
1A0-24524-01-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
619-24535-00-00
Screw (1E7)
|
619-24535-00-00 |
— | ||
|
25
|
25
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
26
|
26
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
27
|
27
90445-09083-00 Hose (L155) |
90445-09083-00 |
from US $6.52 |
||
| replacements | |||||
|
27
|
27
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
27
|
27
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
28
|
28
90445-09094-00 Hose (L420) |
90445-09094-00 |
from US $6.52 |
||
| replacements | |||||
|
28
|
28
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
28
|
28
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
29
|
29
90445-10308-00 Hose (L110) |
90445-10308-00 |
from US $3.68 |
||
| replacement | |||||
|
29
|
29
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $3.68 |
||
|
30
|
30
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
31
|
31
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
31
|
31
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
