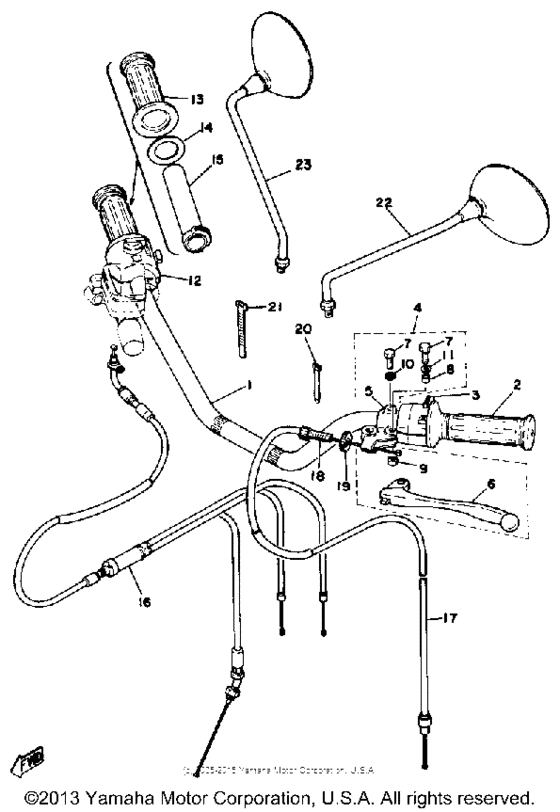

Handle - wire Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2L0-26111-00-00
Handlebar
|
2L0-26111-00-00 |
— | ||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $15.58 |
||
|
3
|
3
1A0-83973-02-98
Switch, Handle 3
LOW GLOSS BLK |
1A0-83973-02-98 |
— | ||
|
4
|
4
360-82910-02-00
Lever Holder Assembly 1 (360-82
360-82 |
360-82910-02-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
360-82 |
999-99999-99-00 |
— | ||
|
5
|
5
341-82911-00-00 Holder, Lever 1 |
341-82911-00-00 |
from US $29.95 |
||
|
6
|
6
214-83912-00-00 Lever 1 |
214-83912-00-00 |
from US $20.12 |
||
|
7
|
7
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
7
|
7
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
7
|
7
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
7
|
7
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
8
|
8
214-83913-00-00 Collar, Lever 1 |
214-83913-00-00 |
from US $4.82 |
||
|
9
|
9
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
9
|
9
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
9
|
9
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
12
|
12
1A0-83975-00-98
Switch, Handle 2
LOW GLOSS BLK |
1A0-83975-00-98 |
— | ||
|
13
|
13
1A0-26242-01-00 Grip Rh (R.h.)RH R.H. |
1A0-26242-01-00 |
from US $13.46 |
||
|
14
|
14
90201-261L0-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L0-00 |
from US $2.69 |
||
| replacement | |||||
|
14
|
14
90201-261L1-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L1-00 |
from US $2.69 |
||
|
15
|
15
1A0-26243-01-00
Tube,thrtl Guide
|
1A0-26243-01-00 |
— | ||
| replacement | |||||
|
15
|
15
1GU-26243-00-00 Tube, Throttle Guide |
1GU-26243-00-00 |
from US $29.20 |
||
|
16
|
16
1A0-26260-00-00 Cble Assembly, Thrtl/pmp |
1A0-26260-00-00 |
from US $56.41 |
||
| replacement | |||||
|
16
|
16
1A0-26260-01-00 Cable Assy, Throttle & Pump |
1A0-26260-01-00 |
US $56.30 |
||
|
17
|
17
1A0-26335-10-00 Cable, Clutch (1A0-26335-00)1A0-26335-00 |
1A0-26335-10-00 |
US $57.96 |
||
|
18
|
18
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
| replacement | |||||
|
18
|
18
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
19
|
19
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
19
|
19
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
21
|
21
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
22
|
22
1J7-26290-12-00
Mirror Assembly Lh (1J7-26290-1
LH 1J7-26290-1 N/A |
1J7-26290-12-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
LH 1J7-26290-1 N/A |
999-99999-99-00 |
— | ||
|
22
|
22
341-26290-10-00
Mirror Assembly Lh
LH |
341-26290-10-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
23
|
23
1J7-26290-02-00
Mirror Assembly Rh (1J7-26290-0
RH 1J7-26290-0 OPTIONAL PARTSN/A |
1J7-26290-02-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
RH 1J7-26290-0 OPTIONAL PARTSN/A |
999-99999-99-00 |
— | ||
|
23
|
23
341-26290-01-00
Back Mirror Rh (341-26290-01)
RH 341-26290-01 OPTIONAL PARTS |
341-26290-01-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
RH 341-26290-01 OPTIONAL PARTS |
999-99999-99-00 |
— | ||
