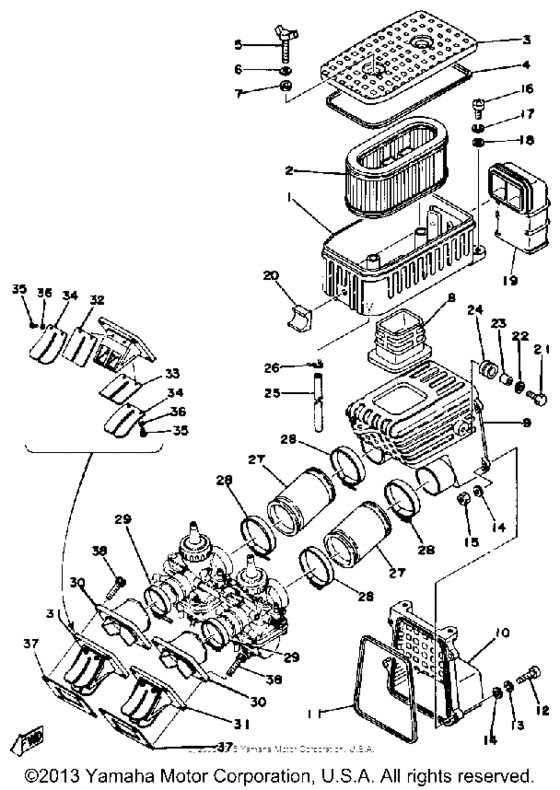

Intake Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-14411-00-00
Case, Air Cleaner 1
|
1A0-14411-00-00 |
— | ||
|
2
|
2
1A0-14451-01-00
Element, Air Clnr
|
1A0-14451-01-00 |
— | ||
|
3
|
3
1A0-14412-01-00
Cap, Cleaner Case 1
|
1A0-14412-01-00 |
— | ||
|
4
|
4
4L0-14457-01-00 Seal |
4L0-14457-01-00 |
from US $8.93 |
||
| replacement | |||||
|
4
|
4
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
5
|
5
90122-06002-00 Bolt, Wing |
90122-06002-00 |
from US $5.81 |
||
| replacement | |||||
|
5
|
5
90122-06010-00 Bolt, Wing |
90122-06010-00 |
from US $4.30 |
||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
7
|
7
902-02051-01-00
Washer, Plate
|
902-02051-01-00 |
— | ||
|
8
|
8
2R9-14419-00-00
Pipe
|
2R9-14419-00-00 |
— | ||
|
9
|
9
1A0-14431-00-00
Silencer, Intake 1
|
1A0-14431-00-00 |
— | ||
|
10
|
10
1A0-14441-00-00
Silencer, Intake 2
|
1A0-14441-00-00 |
— | ||
|
11
|
11
4L0-14457-01-00 Seal |
4L0-14457-01-00 |
from US $8.93 |
||
| replacement | |||||
|
11
|
11
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
12
|
12
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
16
|
16
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
19
|
19
3J7-14437-00-00
Duct
|
3J7-14437-00-00 |
— | ||
|
20
|
20
1A0-14435-01-00
Grommet
|
1A0-14435-01-00 |
— | ||
|
21
|
21
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
21
|
21
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
22
|
22
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
23
|
23
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
23
|
23
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
24
|
24
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
25
|
25
904-45090-78-00
Hose (L420)
|
904-45090-78-00 |
— | ||
| replacements | |||||
|
25
|
25
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
25
|
25
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
26
|
26
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
27
|
27
1A0-14453-01-00
Joint, Air Clnr 1
|
1A0-14453-01-00 |
— | ||
|
28
|
28
90460-49058-00 Clamp, Hose |
90460-49058-00 |
from US $2.98 |
||
|
29
|
29
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
29
|
29
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
30
|
30
345-13565-71-00
Joint, Carburetor
|
345-13565-71-00 |
— | ||
|
31
|
31
558-13610-00-00 Reed Valve Asy |
558-13610-00-00 |
from US $265.15 |
||
| replacement | |||||
|
31
|
31
345-13610-20-00 Reed Valve Assy |
345-13610-20-00 |
from US $266.45 |
||
|
32
|
32
2R9-13613-00-00
Reed, Valve (401-13613-00)
401-13613-00 |
2R9-13613-00-00 |
— | ||
|
33
|
33
345-13613-70-00 Reed, Valve |
345-13613-70-00 |
from US $46.70 |
||
|
34
|
34
345-13616-70-00 Stopper, Reed Valve |
345-13616-70-00 |
from US $21.99 |
||
|
35
|
35
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
36
|
36
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
37
|
37
1A1-13621-01-00 Gasket, Valve Seat |
1A1-13621-01-00 |
from US $4.11 |
||
| replacement | |||||
|
37
|
37
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $2.32 |
||
|
38
|
38
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
38
|
38
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
