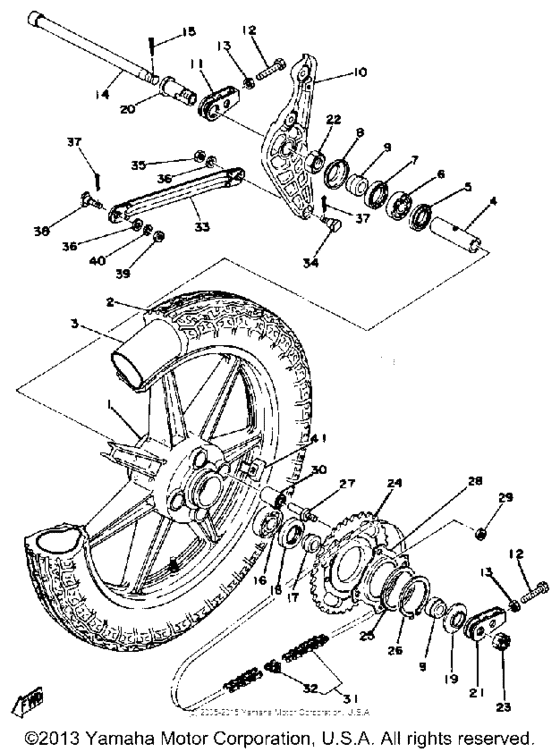

Rear wheel Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-25338-00-00
Wheel, Cast Rear
|
1A1-25338-00-00 |
— | ||
|
2
|
2
941-35183-80-00
Yoko 350S18Y 987
350S18Y 987 |
941-35183-80-00 |
— | ||
|
3
|
3
94235-18085-00 Tube (2.75-18)2.75-18 |
94235-18085-00 |
US $22.55 |
||
| replacement | |||||
|
3
|
3
94232-18113-00 Tube2.75-18 |
94232-18113-00 |
from US $23.82 |
||
|
4
|
4
90560-17233-00
Spacer
|
90560-17233-00 |
— | ||
|
5
|
5
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.40 |
||
|
6
|
6
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
6
|
6
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
7
|
7
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $4.64 |
||
|
8
|
8
341-25118-00-00
Cover, Hub Dust
|
341-25118-00-00 |
— | ||
|
9
|
9
90387-17433-00
Collar
|
90387-17433-00 |
— | ||
|
10
|
10
1A1-25819-00-33
Bracket, Caliper
|
1A1-25819-00-33 |
— | ||
|
11
|
11
1A1-25389-00-00
Puller, Chain 2
|
1A1-25389-00-00 |
— | ||
|
12
|
12
90101-08699-00 Bolt |
90101-08699-00 |
from US $3.42 |
||
| replacements | |||||
|
12
|
12
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
12
|
12
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.66 |
||
|
13
|
13
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $1.84 |
||
|
14
|
14
150-25381-00-00 Axle,wheel |
150-25381-00-00 |
US $58.36 |
||
| replacement | |||||
|
14
|
14
150-25381-01-00 Axle, Wheel |
150-25381-01-00 |
US $57.15 |
||
|
15
|
15
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
15
|
15
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
16
|
16
93306-30417-00 Bearing |
93306-30417-00 |
from US $13.32 |
||
| replacement | |||||
|
16
|
16
933-06304-37-00 Bearing |
933-06304-37-00 |
from US $13.32 |
||
|
17
|
17
1A1-25377-00-00
Collar, Wheel
|
1A1-25377-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
93102-28023-00 Oil SealOil seal (sc-28-52-6) |
93102-28023-00 |
from US $7.23 |
||
|
19
|
19
1A1-25367-00-00
Cover, Hub Dust
|
1A1-25367-00-00 |
— | ||
|
20
|
20
1A1-25387-00-00
Shaft, Brkt Caliper
|
1A1-25387-00-00 |
— | ||
|
21
|
21
168-25389-00-00
Puller, Chain 2
|
168-25389-00-00 |
— | ||
| replacement | |||||
|
21
|
21
12R-25389-00-00
Puller, Chain 2
|
12R-25389-00-00 |
— | ||
|
22
|
22
901-70220-97-00
Nut, Hexagon
|
901-70220-97-00 |
— | ||
|
23
|
23
901-71160-07-00
Nut, Castle (275-25382-00)
275-25382-00 |
901-71160-07-00 |
— | ||
|
24
|
24
1A3-25436-20-00
Sprocket, Drivn 36T (1A1-25436-
36T 1A1-25436- U.R. U.R. |
1A3-25436-20-00 |
— | ||
|
24
|
24
1A1-25438-20-00
Sprocket, Drivn 38T
38T U.R. U.R. STD |
1A1-25438-20-00 |
— | ||
|
25
|
25
90201-66585-00
Washer, Plate
|
90201-66585-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
93410-65040-00
Circlip, S-Type
|
93410-65040-00 |
— | ||
|
27
|
27
901-09124-29-00
Bolt
|
901-09124-29-00 |
— | ||
|
28
|
28
1A1-25412-00-00
New Genuine Part
IN PRICE BOOK |
1A1-25412-00-00 |
— | ||
| replacement | |||||
|
28
|
28
1J3-25412-00-00 WasherIN PRICE BOOK |
1J3-25412-00-00 |
from US $17.49 |
||
|
29
|
29
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
29
|
29
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.13 |
||
|
29
|
29
95311-12700-00 Nut (1A2) |
95311-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
29
|
29
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.13 |
||
|
30
|
30
1A1-25363-00-00
Bush, Clutch Pin
|
1A1-25363-00-00 |
— | ||
|
31
|
31
945-80100-96-00
530 Ds 96L
DS 96L |
945-80100-96-00 |
— | ||
|
32
|
32
946-58300-11-00
New Genuine Part
IN PRICE BOOK |
946-58300-11-00 |
— | ||
|
33
|
33
171-25371-00-00
Bar, Tension
|
171-25371-00-00 |
— | ||
|
34
|
34
90109-08184-00
Bolt
168-25378-00 |
90109-08184-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
168-25378-00 |
999-99999-99-00 |
— | ||
|
35
|
35
901-70081-85-00
New Genuine Part
IN PRICE BOOK |
901-70081-85-00 |
— | ||
|
36
|
36
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
36
|
36
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
37
|
37
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
38
|
38
90109-08375-00
Bolt
168-25373-00 |
90109-08375-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
168-25373-00 |
999-99999-99-00 |
— | ||
|
39
|
39
90179-08639-00 Nut, Spec''l Shape (30)30 |
90179-08639-00 |
from US $1.70 |
||
|
40
|
40
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
41
|
41
1A1-25399-00-00 Balancer, Wheel (10G)10G |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
41
|
41
5MT-25398-00-00 Balancer, Wheel (10G)10G |
5MT-25398-00-00 |
from US $7.65 |
||
|
41
|
41
1A1-25398-01-00 Balancer, Wheel (10G)10G |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
41
|
41
5MT-25398-00-00 Balancer, Wheel (10G)10G |
5MT-25398-00-00 |
from US $7.65 |
||
