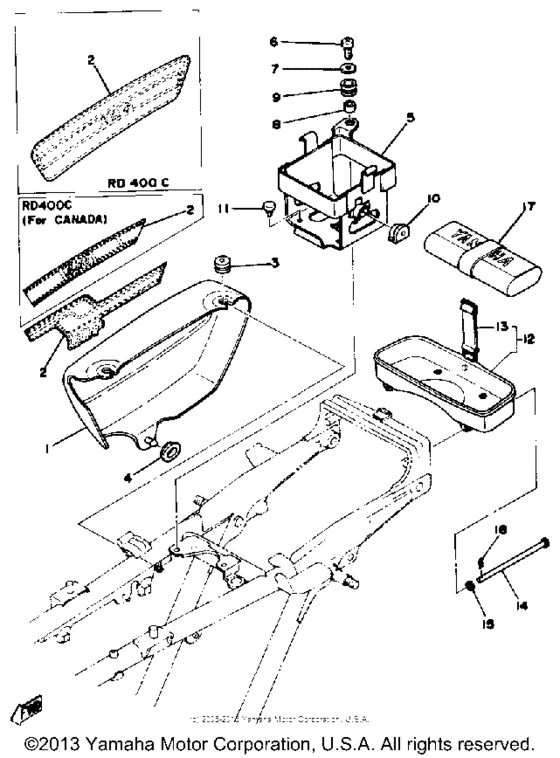

Side cover - box Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-21721-00-E1
Cover, Side 2
CHAPPY REDFOR U.S.A.FOR CANADA |
1A1-21721-00-E1 |
— | ||
|
1
|
1
1A1-21721-00-K6
Cover, Side 2
GENEVA GREENFOR U.S.A. |
1A1-21721-00-K6 |
— | ||
|
1
|
1
1A1-21721-00-G3
Cover, Side 2
FRENCH BLUEFOR U.S.A. |
1A1-21721-00-G3 |
— | ||
|
1
|
1
1A1-21721-00-98
New Genuine Part
IN PRICE BOOK FOR CANADAN/A |
1A1-21721-00-98 |
— | ||
|
2
|
2
1A1-21783-00-00
Graphic 3
CHAPPY REDFOR U.S.A. |
1A1-21783-00-00 |
— | ||
|
2
|
2
1A1-21784-50-00
Emblem 4
CHAPPY REDFOR U.S.A.FOR CANADA |
1A1-21784-50-00 |
— | ||
|
2
|
2
1A1-21783-10-00
New Genuine Part
IN PRICE BOOK FOR CANADAN/A |
1A1-21783-10-00 |
— | ||
|
2
|
2
1A1-21784-40-00
Emblem 4
FRENCH BLUEFOR U.S.A. |
1A1-21784-40-00 |
— | ||
|
2
|
2
1A1-21783-30-00
Graphic 3
GENEVA GREENFOR U.S.A. |
1A1-21783-30-00 |
— | ||
|
3
|
3
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.66 |
||
|
4
|
4
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $2.83 |
||
|
5
|
5
1A0-21170-01-33
Box, Batt
|
1A0-21170-01-33 |
— | ||
|
6
|
6
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
6
|
6
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
7
|
7
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
8
|
8
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
8
|
8
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
9
|
9
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
10
|
10
1A0-21746-01-00
Damper
|
1A0-21746-01-00 |
— | ||
|
11
|
11
1A1-21717-00-00
New Genuine Part
IN PRICE BOOK |
1A1-21717-00-00 |
— | ||
|
12
|
12
1A0-21107-00-00
Tool Box
|
1A0-21107-00-00 |
— | ||
|
13
|
13
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
13
|
13
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
14
|
14
917-01051-20-00
Pin, Clevis
|
917-01051-20-00 |
— | ||
|
15
|
15
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
15
|
15
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
16
|
16
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
17
|
17
1KT-W2810-00-00 Tool Kit |
1KT-W2810-00-00 |
US $192.55 |
||
| replacement | |||||
|
17
|
17
1KT-W2810-01-00
Tool Kit
|
1KT-W2810-01-00 |
— | ||
