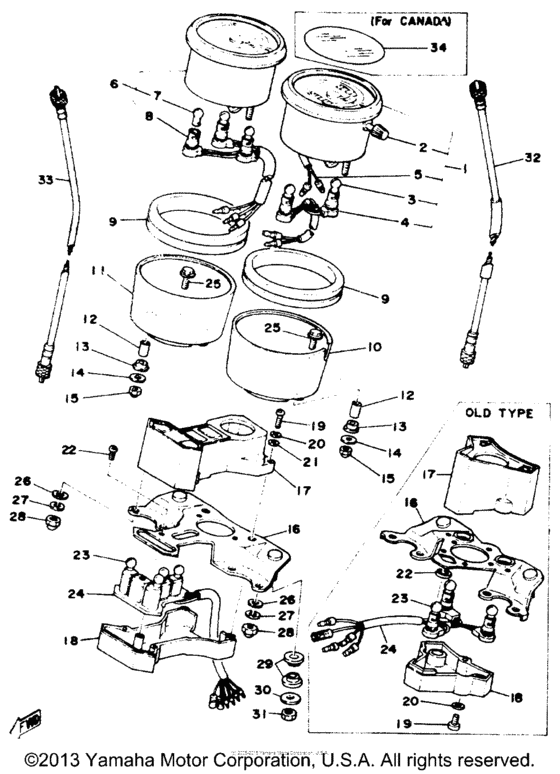

Speedometer & tachometer Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-83570-41-00
Speedometer Assembly
|
1A0-83570-41-00 |
— | ||
|
1
|
1
1A2-83570-21-00
Speedometer Assembly
FOR CANADA KM/H |
1A2-83570-21-00 |
— | ||
|
2
|
2
584-83578-71-00 Knob, Trip Meter |
584-83578-71-00 |
from US $14.17 |
||
| replacement | |||||
|
2
|
2
4SV-83578-00-00 Knob, Trip Meter |
4SV-83578-00-00 |
from US $14.17 |
||
|
3
|
3
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
4
|
4
1A0-83536-01-00
Socket, Meter
|
1A0-83536-01-00 |
— | ||
|
5
|
5
1A0-83556-01-00
Sender
|
1A0-83556-01-00 |
— | ||
|
6
|
6
1A0-83540-01-00
Tachometer Assembly
|
1A0-83540-01-00 |
— | ||
|
6
|
6
1A0-83540-02-00
Tachometer Assembly
301~ |
1A0-83540-02-00 |
— | ||
|
7
|
7
123-83516-21-00 Bulb (12V3.4W)12V-3.4W 301~ |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
7
|
7
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W 301~ |
123-83516-21-XX |
US $63.70 |
||
|
8
|
8
1A0-83572-00-00
Case, Spdmtr Lower
|
1A0-83572-00-00 |
— | ||
|
8
|
8
1A0-83520-01-00
Socket Cord Assembly 00
00 301~ |
1A0-83520-01-00 |
— | ||
|
9
|
9
1A0-83513-00-00
Damper
|
1A0-83513-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
1A0-83507-00-00
Cover, Speedometer
|
1A0-83507-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
1A0-83508-00-00
Cover, Tachometer
|
1A0-83508-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
1A0-83522-00-00
Collar
|
1A0-83522-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
584-83523-00-00 Damper |
584-83523-00-00 |
from US $8.36 |
||
| replacement | |||||
|
13
|
13
21L-H3523-10-00
Damper
|
21L-H3523-10-00 |
— | ||
|
14
|
14
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
15
|
15
95303-05800-00 Nut (Crown) |
95303-05800-00 |
US $1.56 |
||
| replacement | |||||
|
15
|
15
953-04058-00-00 Nut |
953-04058-00-00 |
from US $1.56 |
||
|
16
|
16
1A0-83519-00-00
Bracket, Meter
|
1A0-83519-00-00 |
— | ||
|
16
|
16
1A0-83519-01-00
Bracket, Meter
301~ |
1A0-83519-01-00 |
— | ||
|
17
|
17
1J3-83568-71-00
Pilot Box, Upper
301~ |
1J3-83568-71-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
301~ |
999-99999-99-00 |
— | ||
|
17
|
17
1A0-83568-00-00
Pilot Box, Upper
|
1A0-83568-00-00 |
— | ||
|
18
|
18
1J3-83569-71-00
Pilot Box, Lower
301~ |
1J3-83569-71-00 |
— | ||
|
18
|
18
584-83569-00-00
Pilot Box, Lower
|
584-83569-00-00 |
— | ||
|
19
|
19
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
19
|
19
98506-04020-00 Screw, Pan Head301~ |
98506-04020-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
985-17040-20-00 Screw, Pan Head301~ |
985-17040-20-00 |
from US $1.35 |
||
|
20
|
20
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
20
|
20
92906-04100-00 Washer, Spring301~ |
92906-04100-00 |
from US $1.21 |
||
| replacements | |||||
|
20
|
20
92907-04100-00 Washer, Spring301~ |
92907-04100-00 |
from US $1.21 |
||
|
20
|
20
999-99999-99-00
Not Available
301~ |
999-99999-99-00 |
— | ||
|
21
|
21
92906-04600-00 Washer |
92906-04600-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
22
|
22
985-80050-10-00
Screw, Pan Head
301~ |
985-80050-10-00 |
— | ||
| replacement | |||||
|
22
|
22
97885-05010-00 Screw, Pan Head301~ |
97885-05010-00 |
from US $1.01 |
||
|
22
|
22
1A0-83541-00-00
Damper
|
1A0-83541-00-00 |
— | ||
|
23
|
23
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
23
|
23
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
24
|
24
1J7-83509-70-00
Socket Cord Assembly
301~ |
1J7-83509-70-00 |
— | ||
|
24
|
24
1A0-83573-00-00
Socket Cord Assembly 3
|
1A0-83573-00-00 |
— | ||
|
25
|
25
584-83546-00-00 Bolt |
584-83546-00-00 |
from US $2.98 |
||
|
26
|
26
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
28
|
28
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
29
|
29
1A0-83523-00-00
Damper
|
1A0-83523-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
90201-06063-00 Washer, Plate |
90201-06063-00 |
from US $1.70 |
||
| replacement | |||||
|
30
|
30
90201-06095-00 Washer, Plate |
90201-06095-00 |
from US $1.70 |
||
|
31
|
31
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
32
|
32
55K-83550-01-00 Spdmtr Cable |
55K-83550-01-00 |
from US $26.30 |
||
| replacement | |||||
|
32
|
32
55K-83550-02-00 Speedometer Cable Assy |
55K-83550-02-00 |
from US $35.56 |
||
|
32
|
32
351-82531-00-00
Wire, Lead
IN PRICE BOOK N/A |
351-82531-00-00 |
— | ||
|
33
|
33
360-83560-01-00 Tachometer Cable (360-83560-00)360-83560-00 |
360-83560-01-00 |
from US $76.52 |
||
|
34
|
34
1A1-83585-00-00
New Genuine Part
IN PRICE BOOK FOR CANADA N/A |
1A1-83585-00-00 |
— | ||
