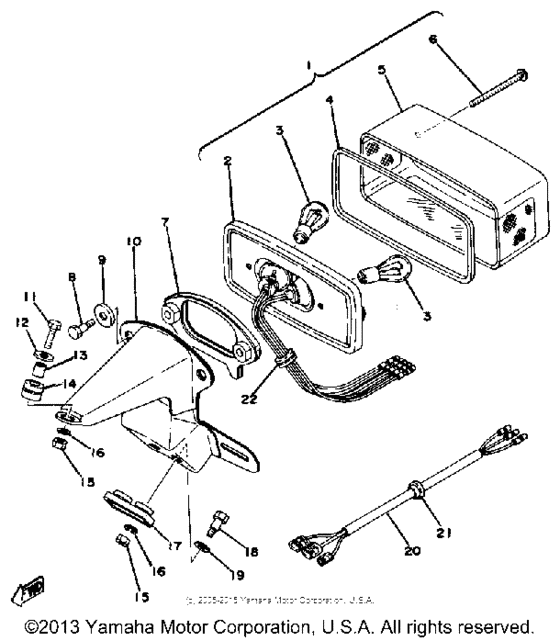

Tail lamp Diagram Yamaha RD
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A2-84710-60-00
Taillight Unit Assembly
|
2A2-84710-60-00 |
— | ||
|
2
|
2
1A0-84711-60-00
Base, Taillight
|
1A0-84711-60-00 |
— | ||
|
3
|
3
256-84714-61-00
Bulb (12V-27/8W)
12V-21/5W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
3
|
3
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
3
|
3
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
from US $4.53 |
||
|
4
|
4
1A0-84723-60-00
Gasket, Tail Lens
|
1A0-84723-60-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
1A0-84721-60-00
Lens, Taillight
|
1A0-84721-60-00 |
— | ||
|
6
|
6
98580-04055-00 Screw, Lens Fitting |
98580-04055-00 |
from US $4.25 |
||
|
7
|
7
1A0-84712-60-00
Sheet, Base
|
1A0-84712-60-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1A0-84726-60-00
Screw
|
1A0-84726-60-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
10
|
10
1A0-84751-60-33
Bracket, License
|
1A0-84751-60-33 |
— | ||
|
11
|
11
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
12
|
12
90209-06095-00 Washer |
90209-06095-00 |
from US $1.84 |
||
| replacement | |||||
|
12
|
12
90209-06012-00 Washer |
90209-06012-00 |
from US $1.84 |
||
|
13
|
13
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
13
|
13
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
14
|
14
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
17
|
17
214-84553-01-00 Damper |
214-84553-01-00 |
from US $10.06 |
||
|
18
|
18
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
19
|
19
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
20
|
20
8L1-84727-00-00
Cord, Taillight
|
8L1-84727-00-00 |
— | ||
|
21
|
21
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
22
|
22
90480-12067-00 Grommet |
90480-12067-00 |
from US $3.68 |
||
