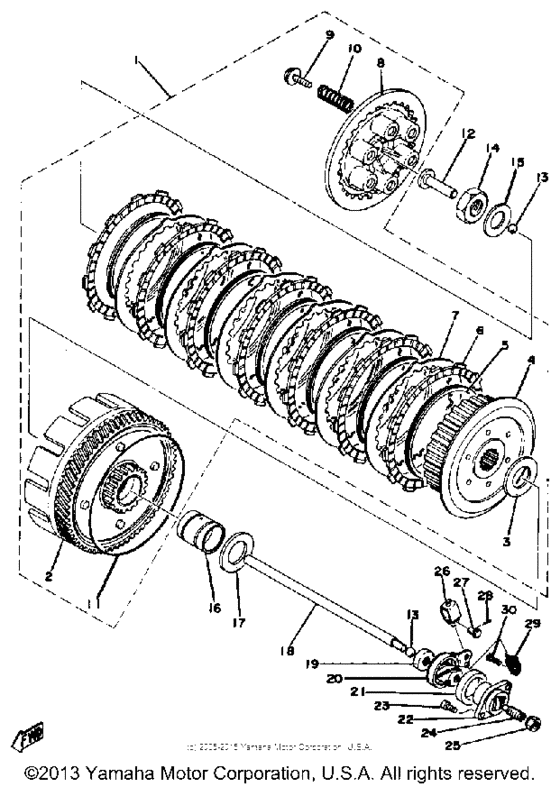

Clutch Diagram Yamaha RD
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-16301-00-00
Clutch Assembly
|
1A1-16301-00-00 |
— | ||
|
2
|
2
2R9-16150-00-00
Pri Drvn Gearcomp. (66T)
|
2R9-16150-00-00 |
— | ||
|
3
|
3
360-16154-00-00 Plate, Thrust 1 |
360-16154-00-00 |
from US $5.96 |
||
|
4
|
4
1A0-16371-00-00 Boss, Clutch |
1A0-16371-00-00 |
from US $42.66 |
||
|
5
|
5
278-16367-00-00 Ring, Cushion |
278-16367-00-00 |
from US $4.30 |
||
|
6
|
6
360-16321-00-00 Plate, Friction |
360-16321-00-00 |
from US $21.11 |
||
| replacement | |||||
|
6
|
6
5Y1-16331-01-00 Plate, Friction 2 |
5Y1-16331-01-00 |
from US $13.24 |
||
|
7
|
7
498-16325-00-00 Plate, Clutch 2 |
498-16325-00-00 |
from US $7.94 |
||
|
8
|
8
1A0-16351-00-00
Plate, Pressure 1
|
1A0-16351-00-00 |
— | ||
|
9
|
9
90159-06010-00 Screw, With Washer |
90159-06010-00 |
from US $1.56 |
||
|
10
|
10
905-01231-38-00 Spring, Compression |
905-01231-38-00 |
from US $2.66 |
||
|
11
|
11
93211-10232-00 O-Ring |
93211-10232-00 |
from US $6.30 |
||
|
12
|
12
174-16356-00-00 Rod, Push 1 |
174-16356-00-00 |
from US $14.59 |
||
|
13
|
13
93505-16006-00 Ball |
93505-16006-00 |
from US $1.70 |
||
|
14
|
14
90170-18089-00
Nut Hexagon 156161740000
|
90170-18089-00 |
— | ||
|
15
|
15
90215-18131-00 Washer, Lock |
90215-18131-00 |
from US $4.82 |
||
|
16
|
16
278-16181-01-00 Spacer 1 |
278-16181-01-00 |
from US $18.52 |
||
|
17
|
17
360-16154-00-00 Plate, Thrust 1 |
360-16154-00-00 |
from US $5.96 |
||
|
18
|
18
328-16357-00-00 Rod, Push 2 |
328-16357-00-00 |
from US $29.89 |
||
|
19
|
19
93109-08061-00 Oil Seal |
93109-08061-00 |
from US $2.98 |
||
|
20
|
20
360-16340-00-00
Push Lever Assembly
|
360-16340-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
214-16347-01-00
Seal, Dust
|
214-16347-01-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
371-16396-00-00
Housing, Push Screw
|
371-16396-00-00 |
— | ||
|
23
|
23
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
24
|
24
90113-08021-00 Bolt, Set |
90113-08021-00 |
from US $4.53 |
||
|
25
|
25
90179-08179-00 Nut |
90179-08179-00 |
from US $4.39 |
||
|
26
|
26
214-16389-00-00 Joint |
214-16389-00-00 |
from US $9.49 |
||
|
27
|
27
90240-06005-00 Pin, Clevis |
90240-06005-00 |
from US $5.53 |
||
|
28
|
28
914-01100-15-00
Pin, Cotter
|
914-01100-15-00 |
— | ||
|
29
|
29
90506-10069-00 Spring, Tension |
90506-10069-00 |
from US $2.06 |
||
|
30
|
30
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
