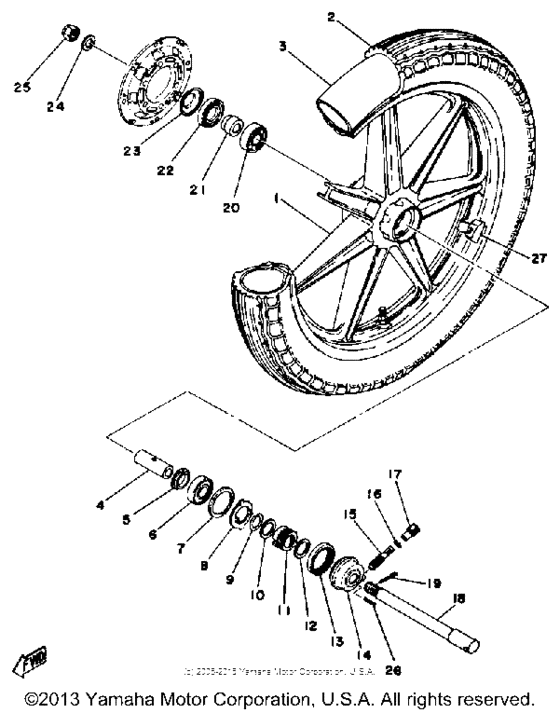

Front wheel Diagram Yamaha RD
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-25168-00-00
Wheel, Cast Front
|
1A1-25168-00-00 |
— | ||
|
2
|
2
941-32183-48-00
325S18 Y984C 4Ply
Y984C 4PLY |
941-32183-48-00 |
— | ||
|
3
|
3
94230-18084-00 Tube (3.00-18) |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
3
|
3
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
4
|
4
90560-17125-00
Spacer
|
90560-17125-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.40 |
||
|
6
|
6
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
6
|
6
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
7
|
7
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $2.98 |
||
|
8
|
8
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $3.54 |
||
|
9
|
9
341-25137-00-00
Ring, Stop
|
341-25137-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90201-25286-00 Washer, Plate (341-25147-00)341-25147-00 |
90201-25286-00 |
from US $3.40 |
||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
341-25147-00 |
999-99999-99-00 |
— | ||
|
11
|
11
341-25135-01-00 Gear, Drive |
341-25135-01-00 |
US $62.71 |
||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
13
|
13
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $11.05 |
||
|
14
|
14
341-25190-01-00 Gear Unit Assy |
341-25190-01-00 |
from US $82.51 |
||
| replacement | |||||
|
14
|
14
4TR-25190-20-00 Gear Unit Assy |
4TR-25190-20-00 |
from US $92.84 |
||
|
15
|
15
306-25138-00-00
Gear, Meter (10T)
|
306-25138-00-00 |
— | ||
|
16
|
16
102-18416-00-00
Shim, Rod
|
102-18416-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
306-25136-00-00
Bush
|
306-25136-00-00 |
— | ||
|
18
|
18
351-25181-10-00
Axle, Wheel
|
351-25181-10-00 |
— | ||
|
19
|
19
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
19
|
19
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
20
|
20
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
20
|
20
93306-30317-00 Bearing |
93306-30317-00 |
from US $28.19 |
||
|
21
|
21
90387-17433-00
Collar
|
90387-17433-00 |
— | ||
|
22
|
22
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $4.64 |
||
|
23
|
23
341-25118-00-00
Cover, Hub Dust
|
341-25118-00-00 |
— | ||
|
24
|
24
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
25
|
25
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
25
|
25
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
26
|
26
91609-20014-00 Pin, Spring |
91609-20014-00 |
from US $2 |
||
|
27
|
27
1A1-25399-00-00 Balancer, Wheel (10G)10G |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
27
|
27
5MT-25398-00-00 Balancer, Wheel (10G)10G |
5MT-25398-00-00 |
from US $7.65 |
||
|
27
|
27
1A1-25398-01-00 Balancer, Wheel (10G)10G |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
27
|
27
5MT-25398-00-00 Balancer, Wheel (10G)10G |
5MT-25398-00-00 |
from US $7.65 |
||
