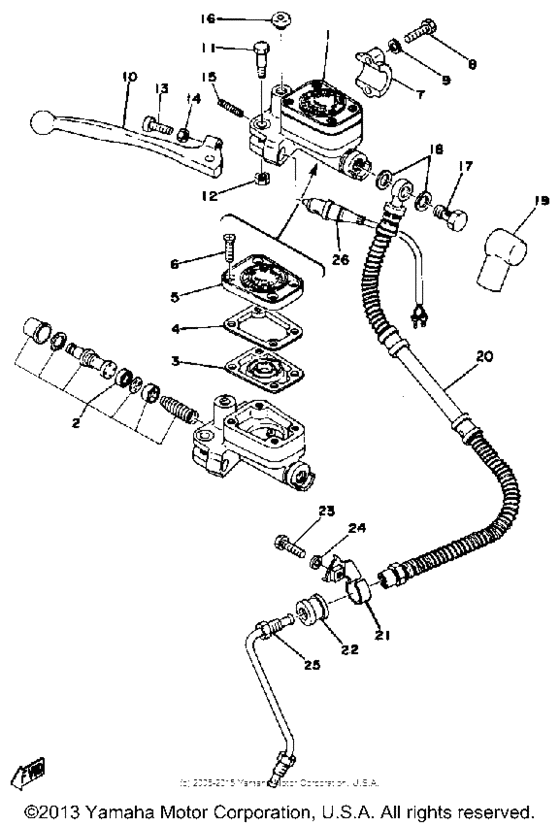

Master cylinder - brake hose Diagram Yamaha RD
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-25850-02-00
Mstr Cylinder Assembly (1A0-258
1A0-258 |
1A0-25850-02-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
1A0-258 |
999-99999-99-00 |
— | ||
|
2
|
2
1A0-W0041-00-00 Cylinder Kit, Master (360-200360-200 |
1A0-W0041-00-00 |
from US $174.64 |
||
|
3
|
3
1A0-25854-01-00
Diaphragm Reservor
|
1A0-25854-01-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
1A0-25855-01-00
Bush, Diaphragm
|
1A0-25855-01-00 |
— | ||
|
5
|
5
1A0-25893-01-00
Reservoir Cap Assembly
|
1A0-25893-01-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
1A0-25824-01-00 Screw, Flat HeadScrew asco |
1A0-25824-01-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
7
|
7
1J3-25867-00-00
Bracket, Master Cylinder (341-2
341-2 |
1J3-25867-00-00 |
— | ||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
341-83922-00-00
Lever R
|
341-83922-00-00 |
— | ||
|
11
|
11
90109-06465-00 Bolt |
90109-06465-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.34 |
||
|
12
|
12
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
12
|
12
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
12
|
12
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
13
|
13
90149-06131-00 Screw |
90149-06131-00 |
from US $1.70 |
||
|
13
|
13
90146-06005-00 Screw, Oval Flstr (306-83928-01306-83928-01 |
90146-06005-00 |
US $1.13 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
306-83928-01 |
999-99999-99-00 |
— | ||
|
14
|
14
90170-06010-00 Nut |
90170-06010-00 |
from US $1.84 |
||
|
15
|
15
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.56 |
||
|
16
|
16
90338-09012-00 Plug |
90338-09012-00 |
from US $3.12 |
||
|
17
|
17
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
17
|
17
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
18
|
18
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
|
19
|
19
360-25862-00-00 Boot, Master Cylinder |
360-25862-00-00 |
from US $18.84 |
||
|
20
|
20
1A0-25872-02-00
Hose, Brake 1
|
1A0-25872-02-00 |
— | ||
|
21
|
21
1A0-25876-00-00
Holder, Brke Hose 2
|
1A0-25876-00-00 |
— | ||
|
22
|
22
306-25881-00-00
Protc, Brake Hose
|
306-25881-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
23
|
23
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
25
|
25
1A0-25871-00-00
Pipe, Brake
|
1A0-25871-00-00 |
— | ||
|
26
|
26
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
26
|
26
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
