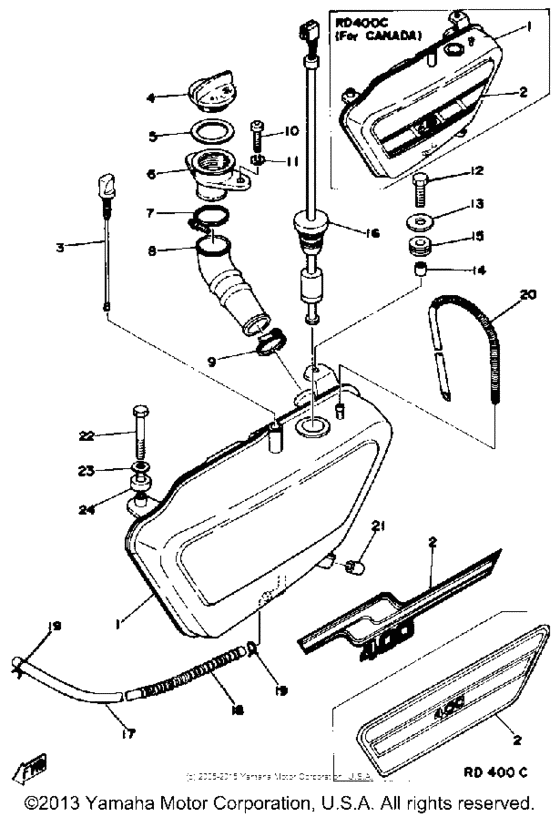

Oil tank Diagram Yamaha RD
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-21751-00-E1
Tank, Oil
FOR U.S.A.FOR CANADACHAPPY RED |
1A0-21751-00-E1 |
— | ||
|
1
|
1
1A0-21751-00-K6
Tank, Oil
FOR U.S.A.GENEVA GREEN |
1A0-21751-00-K6 |
— | ||
|
1
|
1
1A0-21751-00-G3
Tank, Oil
FOR U.S.A.FRENCH BLUE |
1A0-21751-00-G3 |
— | ||
|
1
|
1
1A0-21751-00-98
New Genuine Part
IN PRICE BOOK FOR CANADAN/A |
1A0-21751-00-98 |
— | ||
|
2
|
2
1A1-21784-00-00
Graphic 4
FOR U.S.A.CHAPPY RED |
1A1-21784-00-00 |
— | ||
|
2
|
2
1A1-21784-10-00
New Genuine Part
IN PRICE BOOK FOR CANADAN/A |
1A1-21784-10-00 |
— | ||
|
2
|
2
1A1-21783-40-00
Emblem 3
FOR U.S.A.FRENCH BLUE |
1A1-21783-40-00 |
— | ||
|
2
|
2
1A1-21783-50-00
Emblem 3
FOR U.S.A.FOR CANADACHAPPY RED |
1A1-21783-50-00 |
— | ||
|
2
|
2
1A1-21784-30-00
Graphic 4
FOR U.S.A.GENEVA GREEN |
1A1-21784-30-00 |
— | ||
|
3
|
3
1A0-21792-00-00
Gauge, Oil
|
1A0-21792-00-00 |
— | ||
|
4
|
4
1A0-21771-00-00 Body, Cap |
1A0-21771-00-00 |
from US $36.75 |
||
|
5
|
5
90430-27124-00 Gasket |
90430-27124-00 |
from US $1.70 |
||
|
6
|
6
360-21752-00-00
Tube, Filler 1
|
360-21752-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
90460-32182-00 Clamp, Hose(5U8) |
90460-32182-00 |
from US $3.67 |
||
| replacement | |||||
|
7
|
7
90460-32255-00 Clamp, Hose |
90460-32255-00 |
US $4.91 |
||
|
8
|
8
360-21753-00-00
Boss, Connector
|
360-21753-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
904-60260-07-00
Clamp, Hose
|
904-60260-07-00 |
— | ||
|
10
|
10
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
10
|
10
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
10
|
10
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
10
|
10
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
10
|
10
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
11
|
11
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
11
|
11
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
12
|
12
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
13
|
13
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
14
|
14
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
14
|
14
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
15
|
15
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
16
|
16
4L0-85720-00-00
Oil Lvl Guage Assembly
|
4L0-85720-00-00 |
— | ||
|
17
|
17
904-45091-22-00 Hose |
904-45091-22-00 |
from US $15.73 |
||
|
18
|
18
90501-08410-00 Spring, Compression |
90501-08410-00 |
from US $4.82 |
||
| replacement | |||||
|
18
|
18
90501-085L6-00 Spring, Compression |
90501-085L6-00 |
from US $2.32 |
||
|
19
|
19
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
20
|
20
1A0-21745-01-00
Pipe, Oil Tnk Brthr
|
1A0-21745-01-00 |
— | ||
|
21
|
21
437-21779-00-00 Damper, Oil Tank |
437-21779-00-00 |
from US $8.78 |
||
|
22
|
22
97313-06050-00 Bolt (661)661 |
97313-06050-00 |
from US $1.58 |
||
| replacement | |||||
|
22
|
22
97013-06050-00 Bolt661 |
97013-06050-00 |
from US $1.57 |
||
|
23
|
23
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
23
|
23
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
24
|
24
90385-10026-00 Bush |
90385-10026-00 |
from US $1.98 |
||
