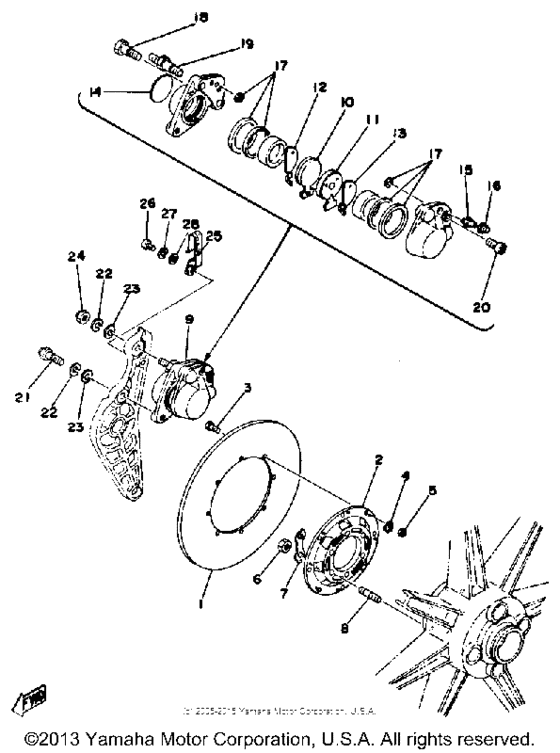

Rear disc brake - caliper Diagram Yamaha RD
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
351-25831-01-00
Disc, Brake
|
351-25831-01-00 |
— | ||
|
2
|
2
351-25832-00-00
Bracket, Disc
|
351-25832-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
90109-06018-00 Bolt |
90109-06018-00 |
from US $4.53 |
||
|
4
|
4
90215-06106-00 Washer, Lock (306-25834-00)306-25834-00 |
90215-06106-00 |
from US $1.48 |
||
|
5
|
5
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
6
|
6
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $1.84 |
||
|
7
|
7
341-25412-00-00 Washer |
341-25412-00-00 |
from US $8.93 |
||
|
8
|
8
90116-08218-00 Bolt, Stud |
90116-08218-00 |
from US $1.84 |
||
|
8
|
8
901-16082-42-00
Bolt, Stud
|
901-16082-42-00 |
— | ||
|
9
|
9
1A1-25810-51-00
Caliper Assembly
|
1A1-25810-51-00 |
— | ||
|
10
|
10
1A1-W0045-00-00
Brake Pad Kit, Frnt
|
1A1-W0045-00-00 |
— | ||
|
12
|
12
409-25827-50-00
Shim, Caliper
|
409-25827-50-00 |
— | ||
|
13
|
13
409-25828-50-00
Shim, Caliper (306-25828-02)
306-25828-02 |
409-25828-50-00 |
— | ||
|
14
|
14
306-25829-00-00
Emblem, Caliper
|
306-25829-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
306-25824-00-00
Screw, Bleed
|
306-25824-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
306-25825-01-00 Cap |
306-25825-01-00 |
from US $4.68 |
||
|
17
|
17
856-W0047-00-00 Caliper Seal Kit (856-20000-5856-20000-5 |
856-W0047-00-00 |
from US $69.77 |
||
|
18
|
18
306-25821-01-00
Bolt 1
|
306-25821-01-00 |
— | ||
|
19
|
19
306-25822-01-00
Bolt 2
|
306-25822-01-00 |
— | ||
|
20
|
20
306-25826-01-00
Bolt 3
|
306-25826-01-00 |
— | ||
|
21
|
21
901-09100-41-00
Bolt
|
901-09100-41-00 |
— | ||
|
22
|
22
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
23
|
23
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
24
|
24
90176-10013-00 Nut, Crown |
90176-10013-00 |
from US $1.70 |
||
| replacements | |||||
|
24
|
24
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.56 |
||
|
24
|
24
90176-10073-00 Nut, Crown |
90176-10073-00 |
from US $1.66 |
||
|
24
|
24
1A1-25875-02-00
Holder, Brke Hose 1
|
1A1-25875-02-00 |
— | ||
|
26
|
26
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
26
|
26
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
28
|
28
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
