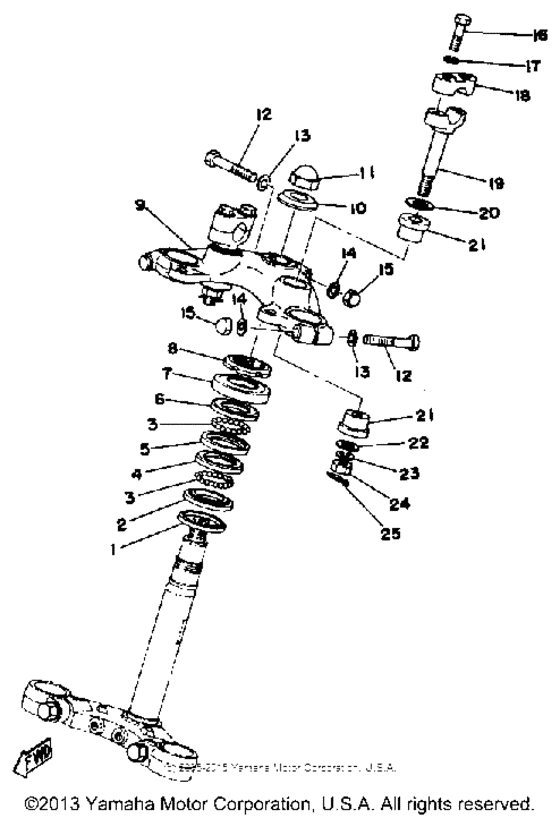

Steering Diagram Yamaha RD
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
2
|
2
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
2
|
2
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
3
|
3
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
3
|
3
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
4
|
4
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
5
|
5
183-23412-00-00 Race, Ball 2 |
183-23412-00-00 |
from US $6.09 |
||
| replacements | |||||
|
5
|
5
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.09 |
||
|
5
|
5
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
5
|
5
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
6
|
6
183-23411-00-00 Race, Ball 1 |
183-23411-00-00 |
from US $6.23 |
||
| replacement | |||||
|
6
|
6
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.23 |
||
|
7
|
7
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
8
|
8
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
8
|
8
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
8
|
8
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
9
|
9
1A0-23435-01-98
Crown, Handle
|
1A0-23435-01-98 |
— | ||
|
10
|
10
902-09170-57-00
Washer, Spec''l Shap
|
902-09170-57-00 |
— | ||
|
11
|
11
901-76160-16-00
Nut, Crown
|
901-76160-16-00 |
— | ||
|
12
|
12
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
12
|
12
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
13
|
13
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
15
|
15
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
|
16
|
16
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
16
|
16
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
16
|
16
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
16
|
16
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
18
|
18
401-23441-00-98
Holder, Handle Upper
|
401-23441-00-98 |
— | ||
|
19
|
19
256-23442-00-98
Holder, Handle Lwr
|
256-23442-00-98 |
— | ||
|
20
|
20
90201-12195-00 Washer, Plate |
90201-12195-00 |
from US $4.68 |
||
| replacement | |||||
|
20
|
20
90201-121J0-00 Washer, Plate |
90201-121J0-00 |
from US $4.68 |
||
|
21
|
21
903-85120-27-00 Bush, Spec''l Rubber |
903-85120-27-00 |
from US $4.68 |
||
|
22
|
22
90201-10146-00 Wahser, Plain |
90201-10146-00 |
from US $3.97 |
||
|
23
|
23
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
24
|
24
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
24
|
24
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
25
|
25
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
