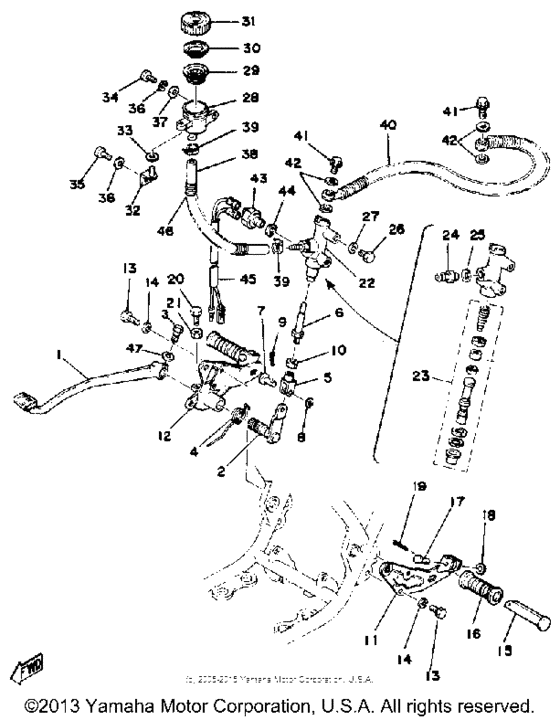

Brake pedal master cylinder Diagram Yamaha RD
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-27211-00-33
Pedal, Brake
|
1A0-27211-00-33 |
— | ||
|
2
|
2
1A1-27212-01-00
Inactive Part Number
|
1A1-27212-01-00 |
— | ||
|
3
|
3
90109-06468-00 Bolt |
90109-06468-00 |
from US $1.50 |
||
|
4
|
4
905-08403-48-00
Spring, Torsion (90508-35302)
90508-35302 |
905-08403-48-00 |
— | ||
|
5
|
5
1A1-27222-01-00
Joint
|
1A1-27222-01-00 |
— | ||
|
6
|
6
1A1-27231-01-00
Rod, Brake
|
1A1-27231-01-00 |
— | ||
|
7
|
7
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.59 |
||
|
8
|
8
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
9
|
9
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.39 |
||
|
10
|
10
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95380-08700-00 Nut |
95380-08700-00 |
from US $1.43 |
||
|
11
|
11
1A0-21445-01-33
Stay, Muffler 1
|
1A0-21445-01-33 |
— | ||
|
12
|
12
1A0-21446-01-33
Stay, Muffler 2
|
1A0-21446-01-33 |
— | ||
|
13
|
13
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
13
|
13
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.04 |
||
|
13
|
13
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $2.03 |
||
|
14
|
14
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
15
|
15
120-27431-00-00 Footrest, Rear 1 |
120-27431-00-00 |
from US $23.94 |
||
| replacement | |||||
|
15
|
15
2GV-27431-00-00 Footrest, Rear 1 |
2GV-27431-00-00 |
from US $7.20 |
||
|
16
|
16
120-27433-00-00 Cover, Rear Footrest |
120-27433-00-00 |
from US $2.76 |
||
|
17
|
17
91701-06035-00 Pin, Clevis (2F9) |
91701-06035-00 |
from US $1.80 |
||
|
18
|
18
902-01202-79-00 Washer, Plate |
902-01202-79-00 |
from US $1.13 |
||
|
19
|
19
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.39 |
||
|
20
|
20
901-01062-88-00
Bolt, Hexagon (360)
|
901-01062-88-00 |
— | ||
| replacement | |||||
|
20
|
20
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.43 |
||
|
21
|
21
953-80067-00-00
Nut
|
953-80067-00-00 |
— | ||
| replacement | |||||
|
21
|
21
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.43 |
||
|
22
|
22
1A1-25850-50-00
Mstr Cylinder Assembly
|
1A1-25850-50-00 |
— | ||
|
23
|
23
1A1-20000-50-00
Cylinder Kit
|
1A1-20000-50-00 |
— | ||
|
24
|
24
1A1-25899-50-00
Bolt, Union
|
1A1-25899-50-00 |
— | ||
|
25
|
25
1A1-25898-50-00
Gasket
|
1A1-25898-50-00 |
— | ||
|
26
|
26
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.28 |
||
| replacement | |||||
|
26
|
26
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $5.14 |
||
|
27
|
27
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
28
|
28
1A1-25894-01-00 Tank, Reservoir |
1A1-25894-01-00 |
from US $18.40 |
||
|
29
|
29
360-25854-00-00 Diaphragm, Reservoir |
360-25854-00-00 |
from US $15.26 |
||
| replacement | |||||
|
29
|
29
360-25854-01-00 Gasket, Diaphragm |
360-25854-01-00 |
from US $15.26 |
||
|
30
|
30
2GU-25855-00-00 Bush,diaphragm |
2GU-25855-00-00 |
from US $16.16 |
||
|
31
|
31
2KF-25852-50-00 Cap, Reservoir |
2KF-25852-50-00 |
from US $6.73 |
||
|
32
|
32
1A1-21798-00-00
Bracket, Damper
|
1A1-21798-00-00 |
— | ||
|
33
|
33
90201-06050-00 Washer, Plate |
90201-06050-00 |
US $1.35 |
||
| replacement | |||||
|
33
|
33
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.35 |
||
