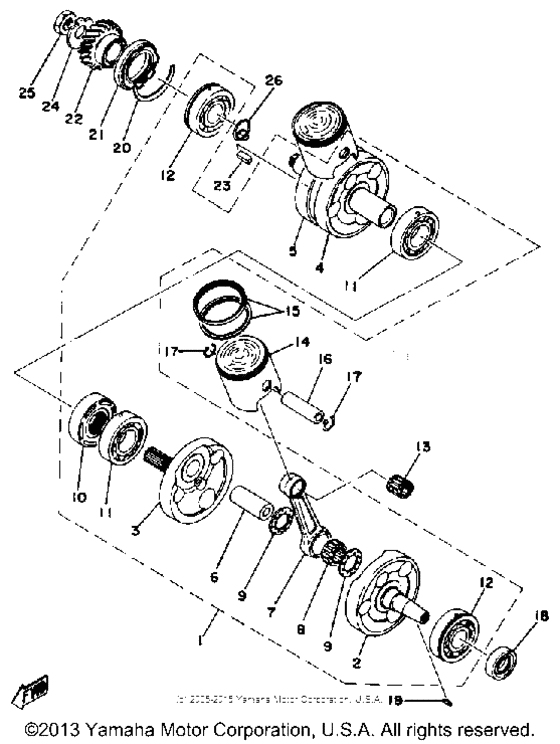

Crankshaft & piston Diagram Yamaha RD
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2V0-11400-00-00
Crankshaft Assembly
|
2V0-11400-00-00 |
— | ||
|
2
|
2
1A1-11412-01-00
Crank 1
|
1A1-11412-01-00 |
— | ||
|
3
|
3
2V0-11422-00-00
Crank 2
|
2V0-11422-00-00 |
— | ||
|
4
|
4
1A1-11432-01-00
Crank 3
|
1A1-11432-01-00 |
— | ||
|
5
|
5
1A1-11442-01-00
Crank 4
|
1A1-11442-01-00 |
— | ||
|
6
|
6
8G8-11681-00-00 Pin, Crank 1 |
8G8-11681-00-00 |
from US $31.63 |
||
|
7
|
7
2T2-11651-00-00
Rod, Connecting
|
2T2-11651-00-00 |
— | ||
|
8
|
8
933-10422-77-00 Bearing, Cylinder |
933-10422-77-00 |
from US $28.79 |
||
| replacement | |||||
|
8
|
8
933-10422-C8-00 Bearing, Cylinder |
933-10422-C8-00 |
from US $28.79 |
||
|
9
|
9
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $8.08 |
||
|
10
|
10
278-11515-00-00
Seal, Labyrinth 1
|
278-11515-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
933-06206-21-00 Bearing |
933-06206-21-00 |
from US $48.32 |
||
|
12
|
12
93306-30549-00 Bearing(1Ua) |
93306-30549-00 |
from US $45.14 |
||
|
13
|
13
93310-216E1-00 Bearing |
93310-216E1-00 |
from US $11.52 |
||
|
14
|
14
1A1-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALTERNATE PART |
1A1-11636-00-00 |
— | ||
|
14
|
14
1A1-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALTERNATE PART |
1A1-11635-00-00 |
— | ||
|
14
|
14
1A1-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 ALTERNATE PART |
1A1-11637-00-00 |
— | ||
|
14
|
14
1A1-11631-00-96
Piston Std
|
1A1-11631-00-96 |
— | ||
|
14
|
14
1A1-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 ALTERNATE PART |
1A1-11638-00-00 |
— | ||
|
15
|
15
1A1-11610-40-00
Piston Ringset 4Th
4TH ALTERNATE PART |
1A1-11610-40-00 |
— | ||
|
15
|
15
1A1-11610-30-00
Piston Ringset 3Rd
3RD ALTERNATE PART |
1A1-11610-30-00 |
— | ||
|
15
|
15
1A1-11610-20-00
Piston Ringset 2Nd
2ND ALTERNATE PART |
1A1-11610-20-00 |
— | ||
|
15
|
15
1A1-11610-00-00
Piston Ringset Std
|
1A1-11610-00-00 |
— | ||
|
15
|
15
1A1-11610-10-00
Piston Ringset 1St
1ST ALTERNATE PART |
1A1-11610-10-00 |
— | ||
|
16
|
16
4L0-11633-00-00 Pin, Piston |
4L0-11633-00-00 |
from US $9.26 |
||
|
17
|
17
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.65 |
||
|
18
|
18
93103-20076-00 Oil Seal, Sw-TypeOil seal (sw-20-40-10) |
93103-20076-00 |
from US $10.28 |
||
|
19
|
19
90280-04005-00
Key, Woodruff
|
90280-04005-00 |
— | ||
|
20
|
20
278-17424-01-00 Circlip 1 |
278-17424-01-00 |
from US $4.12 |
||
|
21
|
21
93103-40077-00 Oil Seal |
93103-40077-00 |
from US $9.60 |
||
|
22
|
22
1A1-16111-00-00
Gear, Pri Drive
23T |
1A1-16111-00-00 |
— | ||
|
23
|
23
90282-07023-00 Key, Straight (584) |
90282-07023-00 |
from US $4.94 |
||
|
24
|
24
90215-18131-00 Washer, Lock |
90215-18131-00 |
from US $4.19 |
||
|
25
|
25
90170-16182-00 Nut |
90170-16182-00 |
from US $2.84 |
||
| replacement | |||||
|
25
|
25
90170-16425-00 Nut |
90170-16425-00 |
from US $2.84 |
||
|
26
|
26
360-11526-00-00
Seal, Crankshaft
|
360-11526-00-00 |
— | ||
