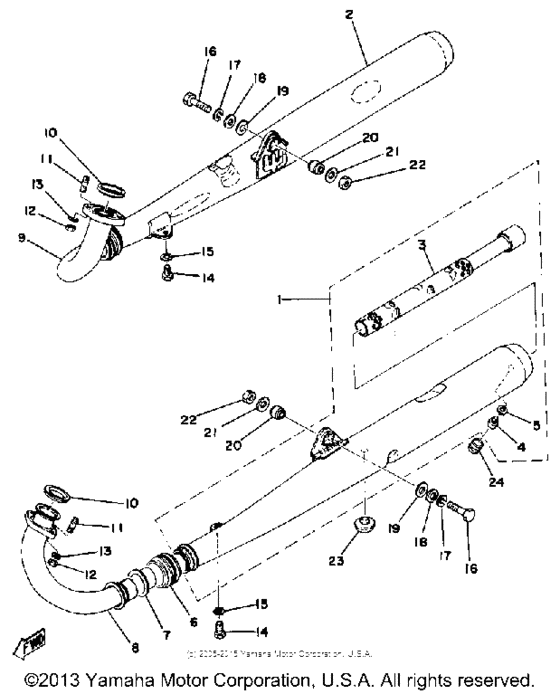

Exhaust Diagram Yamaha RD
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-14710-00-00
Muffler Assembly L
|
1A1-14710-00-00 |
— | ||
|
2
|
2
1A1-14720-00-00
Muffler Assembly R
|
1A1-14720-00-00 |
— | ||
|
3
|
3
521-14753-00-00 Silencer, Exhaust |
521-14753-00-00 |
from US $73.13 |
||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.43 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
6
|
6
1A1-14615-02-00
Joint, Exhaust L
|
1A1-14615-02-00 |
— | ||
|
7
|
7
1A1-14714-02-00
Gasket, Muffler
|
1A1-14714-02-00 |
— | ||
|
8
|
8
1A1-14611-00-00
Pipe, Exhaust L
|
1A1-14611-00-00 |
— | ||
|
9
|
9
1A1-14621-00-00
Pipe, Exhaust R
|
1A1-14621-00-00 |
— | ||
|
10
|
10
1A0-14613-00-00 Gasket, Exhaust Pipe |
1A0-14613-00-00 |
from US $8.08 |
||
| replacement | |||||
|
10
|
10
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.42 |
||
|
11
|
11
90116-08166-00 Bolt, Stud |
90116-08166-00 |
from US $8.68 |
||
| replacement | |||||
|
11
|
11
90116-08408-00 Bolt, Stud |
90116-08408-00 |
from US $8.68 |
||
|
12
|
12
953-33086-00-00
Nut
|
953-33086-00-00 |
— | ||
| replacement | |||||
|
12
|
12
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.40 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
14
|
14
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.28 |
||
| replacement | |||||
|
14
|
14
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $5.14 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.50 |
||
|
16
|
16
901-01102-57-00
Bolt, Flange
|
901-01102-57-00 |
— | ||
| replacement | |||||
|
16
|
16
95023-10035-00
Bolt
|
95023-10035-00 |
— | ||
|
17
|
17
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.38 |
||
|
18
|
18
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $0.90 |
||
|
19
|
19
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
19
|
19
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.65 |
||
|
20
|
20
168-21639-00-00 Damper 2 |
168-21639-00-00 |
from US $3.44 |
||
|
21
|
21
90201-15239-00
Washer, Plate
|
90201-15239-00 |
— | ||
|
22
|
22
901-79101-23-00
Nut, Spec''l Shape
|
901-79101-23-00 |
— | ||
|
23
|
23
1A0-27114-00-00 Stopper, Main Stand |
1A0-27114-00-00 |
from US $10.17 |
||
|
24
|
24
90480-14153-00 Grommet (420) |
90480-14153-00 |
from US $2.69 |
||
