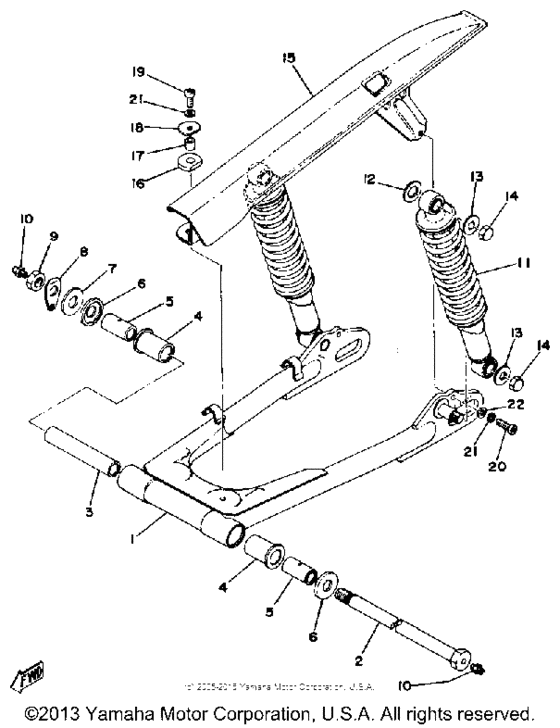

Rear arm rear cushion Diagram Yamaha RD
- Year
- 1978
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A1-22110-01-33
Rear Arm
|
1A1-22110-01-33 |
— | ||
|
2
|
2
156-22141-00-00
Shaft, Pivot
|
156-22141-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
903-87161-28-00
Collar (150-22126-00)
150-22126-00 |
903-87161-28-00 |
— | ||
|
4
|
4
903-86220-18-00 Bush, Spec''l Nylon (148-22123-148-22123- |
903-86220-18-00 |
from US $29.04 |
||
|
5
|
5
903-87162-26-00
Collar (150-22124-00)
150-22124-00 |
903-87162-26-00 |
— | ||
|
6
|
6
1A0-22128-00-00
Cover, Thrust 1
|
1A0-22128-00-00 |
— | ||
|
7
|
7
240-22127-00-00 Shim (0.3T)Shim,rear arm (26-34-0.1) |
240-22127-00-00 |
from US $8.78 |
||
|
8
|
8
1A0-22149-00-00
Washer, Lock
|
1A0-22149-00-00 |
— | ||
|
9
|
9
90170-14403-00 Nut |
90170-14403-00 |
from US $4.30 |
||
| replacement | |||||
|
9
|
9
90170-14800-00 Nut |
90170-14800-00 |
from US $4.53 |
||
|
10
|
10
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
11
|
11
1A1-22210-22-23
New Genuine Part
IN PRICE BOOK |
1A1-22210-22-23 |
— | ||
|
12
|
12
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $2.08 |
||
|
13
|
13
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
| replacement | |||||
|
13
|
13
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.70 |
||
|
14
|
14
90176-10013-00 Nut, Crown |
90176-10013-00 |
from US $1.70 |
||
| replacements | |||||
|
14
|
14
90176-10009-00 Nut, Cap (371) |
90176-10009-00 |
from US $1.66 |
||
|
14
|
14
901-76100-73-00
Nut, Crown
|
901-76100-73-00 |
— | ||
|
15
|
15
1A0-22311-00-33
Case, Chain
|
1A0-22311-00-33 |
— | ||
|
16
|
16
278-22332-00-00
Damper, Chain Case
|
278-22332-00-00 |
— | ||
|
17
|
17
90387-062N2-00 Collar |
90387-062N2-00 |
from US $1.42 |
||
|
18
|
18
902-09060-34-00
Washer, Spec''l Shap
|
902-09060-34-00 |
— | ||
|
19
|
19
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
20
|
20
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
20
|
20
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
22
|
22
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
