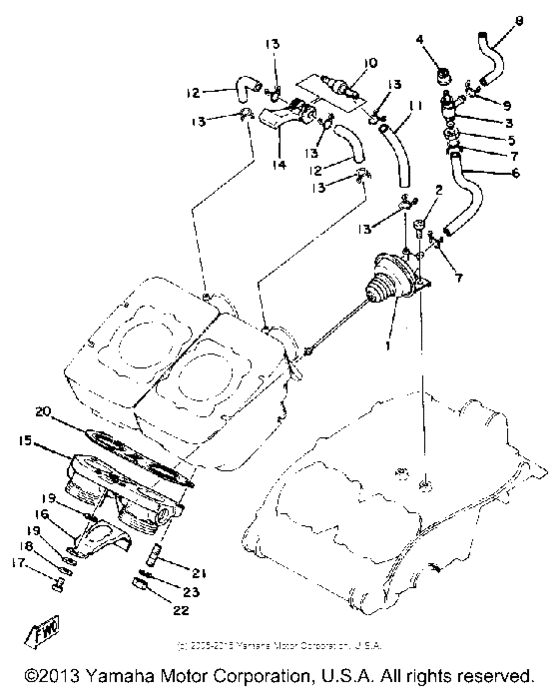

Actuater - exhaust valve Diagram Yamaha RD
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2V0-14830-00-00
Activator Comp
|
2V0-14830-00-00 |
— | ||
|
2
|
2
97602-06110-00 Screw, Pn/hd.w/wshr |
97602-06110-00 |
US $1.42 |
||
| replacement | |||||
|
2
|
2
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
3
|
3
2V0-14828-00-00
Opener, Ex. Valve
|
2V0-14828-00-00 |
— | ||
|
4
|
4
2V0-14829-00-00
Seal, Dust
|
2V0-14829-00-00 |
— | ||
|
5
|
5
2V0-14595-00-00
Nut
|
2V0-14595-00-00 |
— | ||
|
6
|
6
904-45104-00-00
Hose
|
904-45104-00-00 |
— | ||
|
7
|
7
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
7
|
7
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
7
|
7
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
8
|
8
90445-09074-00 Hose (L420) |
90445-09074-00 |
from US $6.52 |
||
| replacements | |||||
|
8
|
8
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
8
|
8
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
9
|
9
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
10
|
10
2V0-14848-00-00
Valve, Check
|
2V0-14848-00-00 |
— | ||
|
11
|
11
90445-10007-00 Hose (L110) |
90445-10007-00 |
from US $3.68 |
||
| replacement | |||||
|
11
|
11
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $4.03 |
||
|
12
|
12
90445-10399-00 Hose |
90445-10399-00 |
US $3.68 |
||
|
13
|
13
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
13
|
13
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
13
|
13
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
14
|
14
2V0-14849-00-00
Bracket
|
2V0-14849-00-00 |
— | ||
|
15
|
15
2V0-14810-00-00
Exhaust Valve Assembly
|
2V0-14810-00-00 |
— | ||
|
16
|
16
2V0-14826-00-00
Protector, Exhaust
|
2V0-14826-00-00 |
— | ||
|
17
|
17
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
19
|
19
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.50 |
||
|
20
|
20
2V0-14613-00-00
Gasket, Exhust
|
2V0-14613-00-00 |
— | ||
| replacement | |||||
|
20
|
20
2V0-14613-10-00
PEDAL,SHIFT
|
2V0-14613-10-00 |
— | ||
|
21
|
21
90116-08166-00 Bolt, Stud |
90116-08166-00 |
from US $10.20 |
||
| replacement | |||||
|
21
|
21
90116-08408-00 Bolt, Stud |
90116-08408-00 |
from US $10.20 |
||
|
22
|
22
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
22
|
22
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
