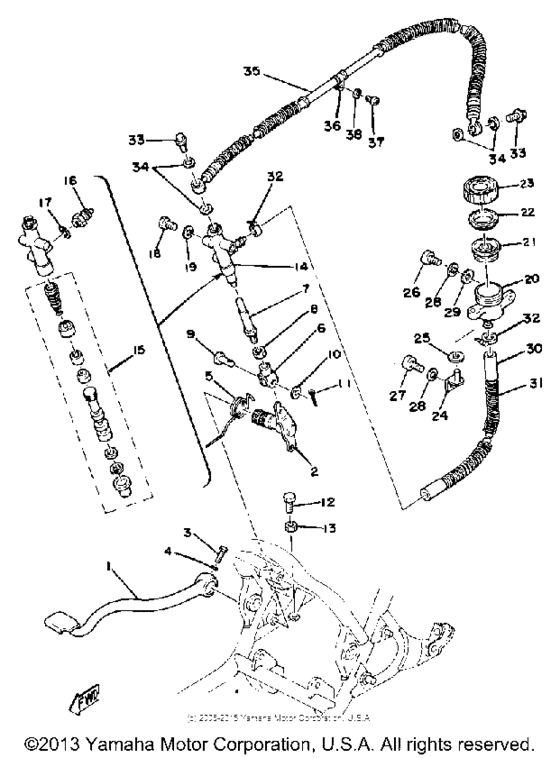

Brake pedal - rear master cylinder Diagram Yamaha RD
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2R8-27211-00-33
Pedal, Brake
|
2R8-27211-00-33 |
— | ||
|
2
|
2
2V0-27212-00-00
Shaft, Brake Pedal
|
2V0-27212-00-00 |
— | ||
|
3
|
3
90109-06468-00 Bolt |
90109-06468-00 |
from US $1.56 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
2R8-27216-00-00
Spring, Brake Pedal
|
2R8-27216-00-00 |
— | ||
|
6
|
6
1A1-27222-01-00
Joint
|
1A1-27222-01-00 |
— | ||
|
7
|
7
1A1-27231-01-00
Rod, Brake
|
1A1-27231-01-00 |
— | ||
|
8
|
8
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
9
|
9
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
10
|
10
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
11
|
11
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
12
|
12
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
13
|
13
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
13
|
13
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
14
|
14
2V0-25850-50-00
Mstr Cylinder Assembly
|
2V0-25850-50-00 |
— | ||
|
15
|
15
1A1-20000-50-00
Cylinder Kit
|
1A1-20000-50-00 |
— | ||
|
16
|
16
1A1-25899-50-00
Bolt, Union
|
1A1-25899-50-00 |
— | ||
|
17
|
17
1A1-25898-50-00
Gasket
|
1A1-25898-50-00 |
— | ||
|
18
|
18
970-16080-16-00
Bolt
|
970-16080-16-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
20
|
20
1A1-25894-01-00 Tank, Reservoir |
1A1-25894-01-00 |
from US $13.48 |
||
|
21
|
21
360-25854-00-00 Diaphragm, Reservoir |
360-25854-00-00 |
from US $15.58 |
||
| replacement | |||||
|
21
|
21
360-25854-01-00 Gasket, Diaphragm |
360-25854-01-00 |
from US $7.08 |
||
|
22
|
22
2GU-25855-00-00 Bush,diaphragm |
2GU-25855-00-00 |
from US $11.80 |
||
|
23
|
23
2KF-25852-50-00 Cap, Reservoir |
2KF-25852-50-00 |
from US $8.05 |
||
|
24
|
24
1A1-21798-00-00
Bracket, Damper
|
1A1-21798-00-00 |
— | ||
|
25
|
25
90201-06050-00 Washer, Plate |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
26
|
26
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
26
|
26
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
27
|
27
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
27
|
27
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
29
|
29
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
29
|
29
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
29
|
29
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
30
|
30
1A1-25895-00-00
Hose, Reservoir
|
1A1-25895-00-00 |
— | ||
|
31
|
31
905-01104-06-00
Spring, Compression
|
905-01104-06-00 |
— | ||
|
32
|
32
90601-11525-00 Clamp, Hose |
90601-11525-00 |
from US $6.38 |
||
| replacement | |||||
|
32
|
32
90467-14057-00 Clip |
90467-14057-00 |
from US $1.28 |
||
|
33
|
33
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
33
|
33
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
34
|
34
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
34
|
34
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
35
|
35
2R8-25872-50-00
Hose, Brake 1
|
2R8-25872-50-00 |
— | ||
|
36
|
36
90461-08031-00 Clamp |
90461-08031-00 |
from US $2.91 |
||
|
37
|
37
985-16060-12-00
Screw, Pan Head(3Xv)
|
985-16060-12-00 |
— | ||
| replacement | |||||
|
37
|
37
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
38
|
38
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
