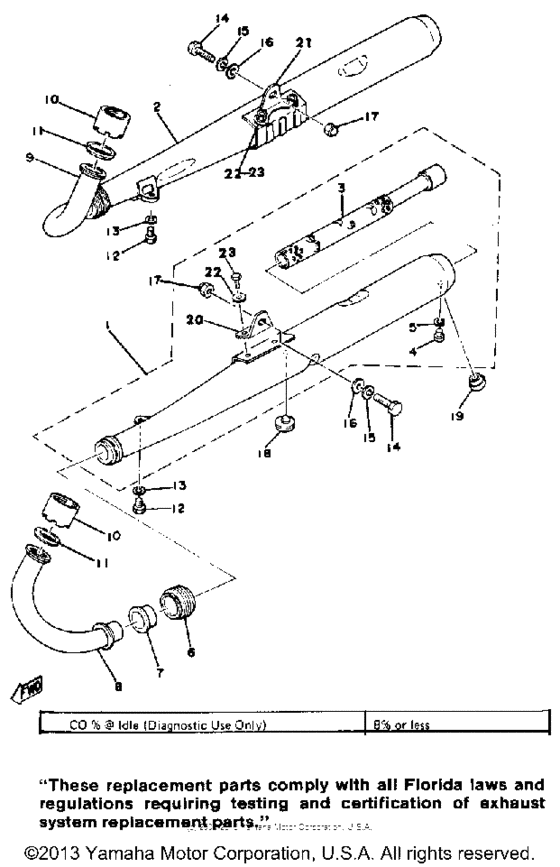

Exhaust Diagram Yamaha RD
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2V0-14710-00-00
Muffler Assembly L
|
2V0-14710-00-00 |
— | ||
|
2
|
2
2V0-14720-00-00
Muffler Assembly R
|
2V0-14720-00-00 |
— | ||
|
3
|
3
521-14753-00-00 Silencer, Exhaust |
521-14753-00-00 |
from US $89.06 |
||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010- |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
1A1-14615-02-00
Joint, Exhaust L
|
1A1-14615-02-00 |
— | ||
|
7
|
7
1A1-14714-02-00
Gasket, Muffler
|
1A1-14714-02-00 |
— | ||
|
8
|
8
2V0-14611-00-00
Pipe, Exhaust L
|
2V0-14611-00-00 |
— | ||
|
9
|
9
2V0-14621-00-00
Pipe, Exhaust R
|
2V0-14621-00-00 |
— | ||
|
10
|
10
2V0-14612-00-00
Nut, Ring
|
2V0-14612-00-00 |
— | ||
|
11
|
11
1A0-14613-00-00 Gasket, Exhaust Pipe |
1A0-14613-00-00 |
from US $9.35 |
||
| replacement | |||||
|
11
|
11
3PA-14613-10-00 Gasket, Exhaust Pipe |
3PA-14613-10-00 |
from US $9.98 |
||
|
12
|
12
97011-08016-00 Bolt(2Vy) |
97011-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
13
|
13
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
14
|
14
901-01100-56-00
Inactive Part Number
|
901-01100-56-00 |
— | ||
| replacements | |||||
|
14
|
14
901-01106-70-00
Bolt(2Jn)
|
901-01106-70-00 |
— | ||
|
14
|
14
90101-10513-00
Inactive Part Number
|
90101-10513-00 |
— | ||
|
15
|
15
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
16
|
16
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
17
|
17
95303-10800-00 Nut |
95303-10800-00 |
US $3.12 |
||
| replacement | |||||
|
17
|
17
95380-10800-00 Nut |
95380-10800-00 |
from US $3.12 |
||
|
18
|
18
1A0-27114-00-00 Stopper, Main Stand |
1A0-27114-00-00 |
from US $11.37 |
||
|
19
|
19
90480-14153-00 Grommet (420) |
90480-14153-00 |
from US $2.98 |
||
|
20
|
20
2V0-1471L-00-00
Stay, Muffler 1
|
2V0-1471L-00-00 |
— | ||
|
21
|
21
2V0-1472L-00-00
Stay, Muffler
|
2V0-1472L-00-00 |
— | ||
|
22
|
22
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
22
|
22
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
22
|
22
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
23
|
23
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
