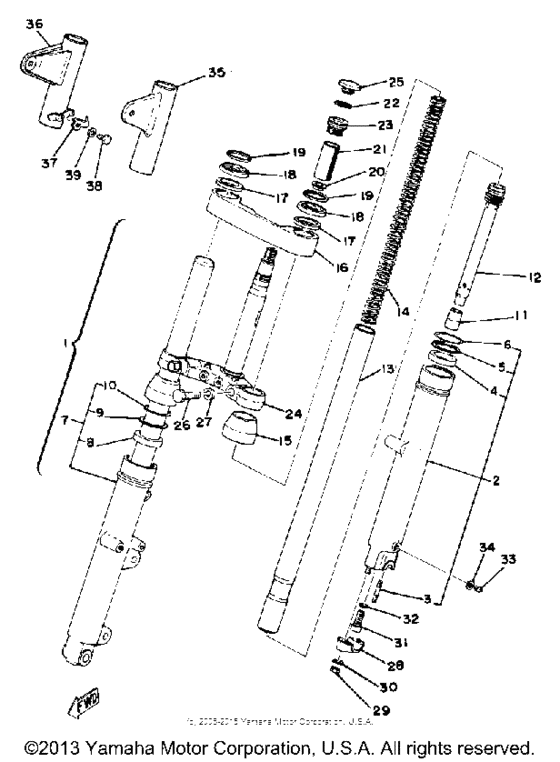

Front fork Diagram Yamaha RD
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2V0-23101-00-00
Front Fork Assembly
|
2V0-23101-00-00 |
— | ||
|
2
|
2
2R8-23126-00-38
Tube, Outer 1
|
2R8-23126-00-38 |
— | ||
|
3
|
3
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
4
|
4
1T3-23145-00-00 Oil Seal |
1T3-23145-00-00 |
from US $6.06 |
||
| replacement | |||||
|
4
|
4
93110-35019-00 Oil Seal |
93110-35019-00 |
from US $14.59 |
||
|
5
|
5
341-23146-50-00 Washer, Oil Seal |
341-23146-50-00 |
from US $10.58 |
||
|
6
|
6
341-23156-50-00 Clip, Oil Seal |
341-23156-50-00 |
from US $19.69 |
||
|
7
|
7
2R8-23136-00-38
Tube, Outer 2
|
2R8-23136-00-38 |
— | ||
|
8
|
8
1T3-23145-00-00 Oil Seal |
1T3-23145-00-00 |
from US $6.06 |
||
| replacement | |||||
|
8
|
8
93110-35019-00 Oil Seal |
93110-35019-00 |
from US $14.59 |
||
|
9
|
9
341-23146-50-00 Washer, Oil Seal |
341-23146-50-00 |
from US $10.58 |
||
|
10
|
10
341-23156-50-00 Clip, Oil Seal |
341-23156-50-00 |
from US $19.69 |
||
|
11
|
11
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
12
|
12
2R8-23170-00-00
Cylinder, Frtfrk
|
2R8-23170-00-00 |
— | ||
|
13
|
13
2R8-23110-00-00
Inner Tube 1
|
2R8-23110-00-00 |
— | ||
|
14
|
14
2J2-23141-00-00
Spring, Front Fork
|
2J2-23141-00-00 |
— | ||
|
15
|
15
1T3-23144-50-00 Seal, Dust |
1T3-23144-50-00 |
from US $32.09 |
||
|
16
|
16
2R8-23122-00-00
Cover, Outer 1
|
2R8-23122-00-00 |
— | ||
|
17
|
17
291-23163-61-00
Gasket (Lamp Stay)
|
291-23163-61-00 |
— | ||
|
18
|
18
2R8-23116-00-00
Guide, Cover Lower
|
2R8-23116-00-00 |
— | ||
|
19
|
19
2R8-23115-00-00
Guide, Cover Upper
|
2R8-23115-00-00 |
— | ||
|
20
|
20
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
21
|
21
1U6-23118-M0-00
Spacer
|
1U6-23118-M0-00 |
— | ||
|
22
|
22
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
23
|
23
1U6-23111-M1-00 Bolt, Cap (1U6-23111-M0)1U6-23111-M0 |
1U6-23111-M1-00 |
from US $25.61 |
||
|
24
|
24
2V0-23340-00-33
Under Bracket
|
2V0-23340-00-33 |
— | ||
|
25
|
25
1U6-23168-M1-00 Cap, Front Fork |
1U6-23168-M1-00 |
from US $10.31 |
||
|
26
|
26
306-23346-60-00
Bolt 1
|
306-23346-60-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
28
|
28
291-23167-61-00
Holder, Axle (291-23167-60)
291-23167-60 |
291-23167-61-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
291-23167-60 |
999-99999-99-00 |
— | ||
|
29
|
29
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
29
|
29
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
30
|
30
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
30
|
30
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
31
|
31
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
31
|
31
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
32
|
32
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
33
|
33
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
34
|
34
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
35
|
35
2V0-23121-00-33
Cover, Upper 1
YAMAHA BLACK |
2V0-23121-00-33 |
— | ||
|
36
|
36
2V0-23131-00-33
Cover, Upper 2
YAMAHA BLACK |
2V0-23131-00-33 |
— | ||
|
37
|
37
1A0-23164-00-00
Stay, Light Guard
|
1A0-23164-00-00 |
— | ||
|
38
|
38
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
38
|
38
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
