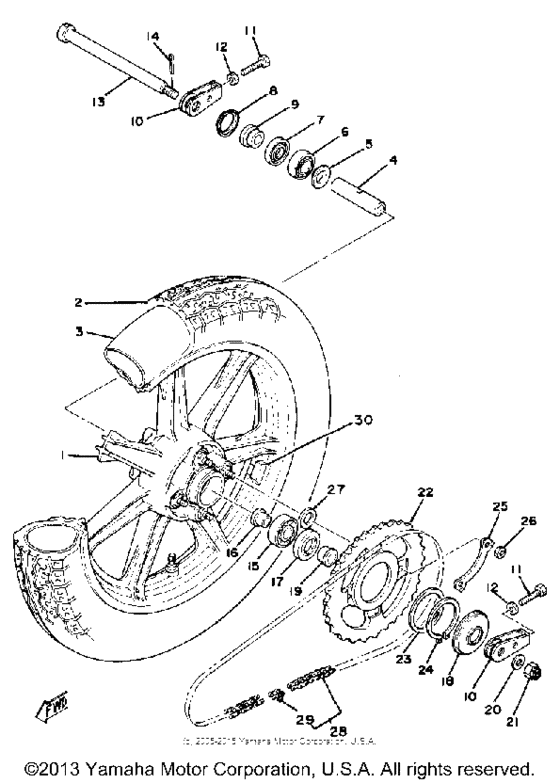

Rear wheel Diagram Yamaha RD
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- RD400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A2-W2533-20-00
Wheel, Cast Rear
|
2A2-W2533-20-00 |
— | ||
|
2
|
2
941-35183-80-00
Yoko 350S18Y 987
350S18Y 987 |
941-35183-80-00 |
— | ||
|
3
|
3
94235-18085-00 Tube (2.75-18)2.75-18 |
94235-18085-00 |
US $22.55 |
||
| replacement | |||||
|
3
|
3
94232-18113-00 Tube2.75-18 |
94232-18113-00 |
from US $24.92 |
||
|
4
|
4
1J3-25317-00-00 Spacer, Bearing |
1J3-25317-00-00 |
US $17.05 |
||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
1A1-25115-00-00 Flange, Spacer |
1A1-25115-00-00 |
from US $3.40 |
||
| replacement | |||||
|
5
|
5
146-25315-00-00 Flange, Spacer |
146-25315-00-00 |
from US $3.74 |
||
|
6
|
6
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
6
|
6
93306-30317-00 Bearing |
93306-30317-00 |
from US $27.74 |
||
|
7
|
7
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $7.07 |
||
|
8
|
8
1J3-25118-00-00
Cover, Hub Dust
|
1J3-25118-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90387-17536-00
Collar
|
90387-17536-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
168-25389-00-00
Puller, Chain 2
|
168-25389-00-00 |
— | ||
| replacement | |||||
|
10
|
10
12R-25389-00-00
Puller, Chain 2
|
12R-25389-00-00 |
— | ||
|
11
|
11
90101-08699-00 Bolt |
90101-08699-00 |
from US $3.42 |
||
| replacements | |||||
|
11
|
11
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
11
|
11
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.81 |
||
|
12
|
12
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
12
|
12
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
13
|
13
1J3-25381-00-00
Axle, Wheel
|
1J3-25381-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
14
|
14
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
15
|
15
93306-20417-00 Bearing |
93306-20417-00 |
from US $26.92 |
||
| replacement | |||||
|
15
|
15
93306-20469-00 Bearing |
93306-20469-00 |
from US $30.79 |
||
|
16
|
16
1A1-25377-00-00
Collar, Wheel
|
1A1-25377-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
93104-27026-00 Oil Seal, So-Type |
93104-27026-00 |
from US $10.91 |
||
|
18
|
18
1L9-25367-00-00
Cover, Hub Dust
|
1L9-25367-00-00 |
— | ||
|
19
|
19
90387-17551-00
Collar
|
90387-17551-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
21
|
21
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
21
|
21
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
22
|
22
1J3-25437-20-00
Sprocket, Drivn 37T
37T |
1J3-25437-20-00 |
— | ||
|
23
|
23
90201-66585-00
Washer, Plate
|
90201-66585-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
93410-65040-00
Circlip, S-Type
|
93410-65040-00 |
— | ||
|
25
|
25
1J3-25412-00-00
Washer
|
1J3-25412-00-00 |
— | ||
|
26
|
26
95301-12700-00 Nut |
95301-12700-00 |
from US $2.13 |
||
| replacement | |||||
|
26
|
26
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.35 |
||
|
27
|
27
90387-20565-00
Collar
|
90387-20565-00 |
— | ||
|
28
|
28
945-80100-96-00
530 Ds 96L
DS 96L |
945-80100-96-00 |
— | ||
|
29
|
29
94685-30011-00
Joint Chain
|
94685-30011-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
1A1-25399-00-00 Balancer, Wheel (10G)10G 10G |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
30
|
30
5MT-25398-00-00 Balancer, Wheel (10G)10G 10G |
5MT-25398-00-00 |
from US $8.46 |
||
|
30
|
30
1A1-25398-01-00 Balancer, Wheel (10G)20G 20G |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
30
|
30
5MT-25398-00-00 Balancer, Wheel (10G)20G 20G |
5MT-25398-00-00 |
from US $8.46 |
||
|
30
|
30
2M0-25399-00-00 Balancer, Wheel (30G)30G 30G |
2M0-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
30
|
30
5MT-25398-00-00 Balancer, Wheel (10G)30G 30G |
5MT-25398-00-00 |
from US $8.46 |
||
