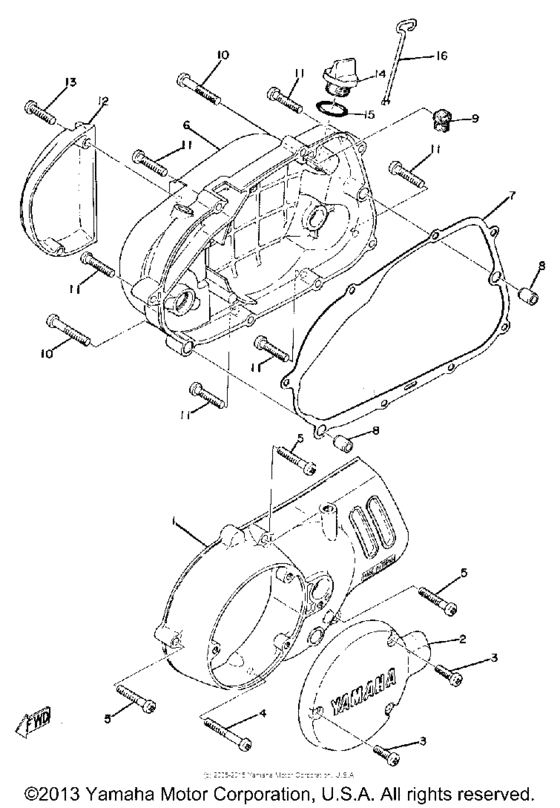

Crankcase cover Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-15411-00-Y4
Cover, Crankcase L (353-15411-0
353-15411-0 |
353-15411-00-Y4 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
353-15411-0 |
999-99999-99-00 |
— | ||
|
2
|
2
353-15415-00-Y4
Cover, Generator
|
353-15415-00-Y4 |
— | ||
|
3
|
3
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
4
|
4
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
5
|
5
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
5
|
5
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
6
|
6
353-15421-00-00
Cover, Crankcase R
|
353-15421-00-00 |
— | ||
|
7
|
7
3MT-15451-00-00 Gasket, Crcs Cover |
3MT-15451-00-00 |
from US $20.54 |
||
|
8
|
8
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
8
|
8
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
8
|
8
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
9
|
9
353-15437-02-00
Scraper, Oil
|
353-15437-02-00 |
— | ||
|
10
|
10
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
11
|
11
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
12
|
12
353-15416-00-00 Cover, Oil Pump |
353-15416-00-00 |
US $39.44 |
||
|
13
|
13
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
14
|
14
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $17.14 |
||
|
15
|
15
932-10211-90-00 O-Ring |
932-10211-90-00 |
from US $1.70 |
||
|
16
|
16
353-15361-00-00
Gauge, Level
|
353-15361-00-00 |
— | ||
