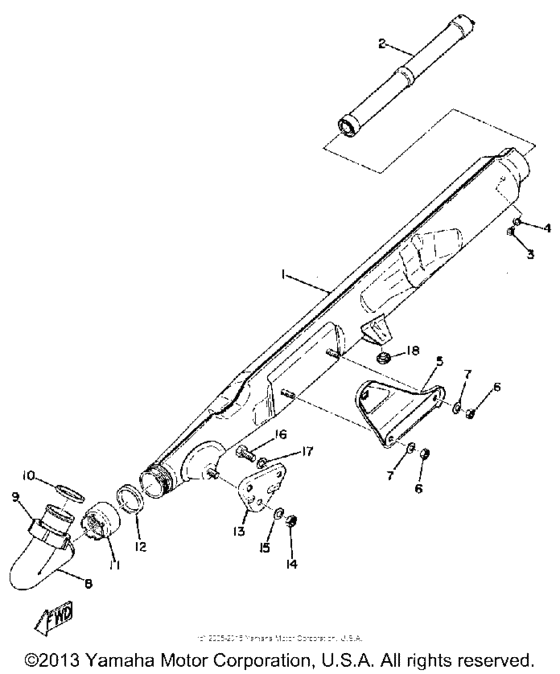

Exhaust Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-14710-00-00
Muffler Assembly L
|
353-14710-00-00 |
— | ||
|
2
|
2
353-14753-01-00
Silencer, Exhaust
|
353-14753-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
3
|
3
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
4
|
4
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
5
|
5
353-14772-00-00
Stay, Muffler 2
|
353-14772-00-00 |
— | ||
|
6
|
6
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
353-14611-00-00
Pipe, Exhaust L
|
353-14611-00-00 |
— | ||
|
9
|
9
1L4-14612-00-00 Nut, Ring |
1L4-14612-00-00 |
from US $15.73 |
||
|
10
|
10
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
10
|
10
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.53 |
||
|
11
|
11
132-14713-00-00 Nut, Muffler Joint |
132-14713-00-00 |
US $29.32 |
||
|
12
|
12
3NA-14714-01-00 Gasket, Muffler |
3NA-14714-01-00 |
from US $16.43 |
||
|
13
|
13
353-14771-00-00
Stay, Muffler 1
|
353-14771-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
16
|
16
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
16
|
16
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
18
|
18
1M3-27114-00-00 Stopper, Main Stand |
1M3-27114-00-00 |
from US $10.89 |
||
