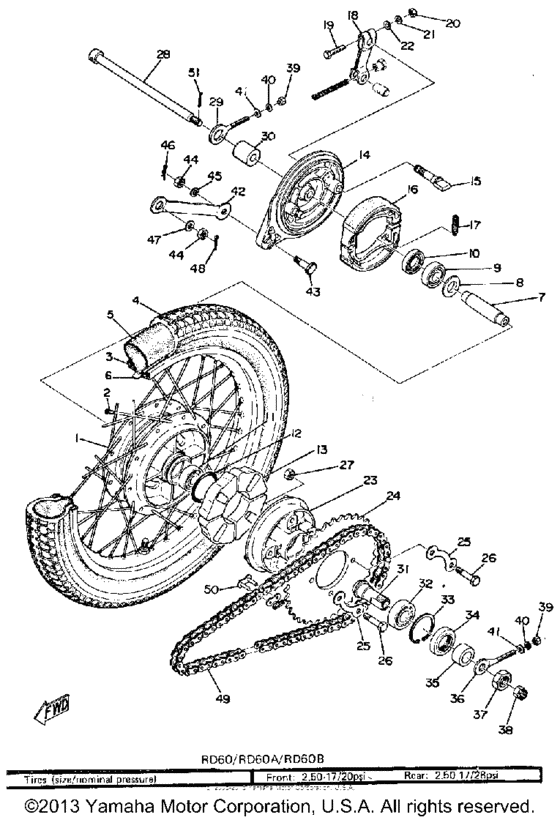

Rear wheel Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
296-25311-00-00
Hub, Rear
|
296-25311-00-00 |
— | ||
|
2
|
2
296-25304-00-00 Spoke Set, Rear |
296-25304-00-00 |
US $108.18 |
||
| replacement | |||||
|
2
|
2
296-25304-10-00 Spoke Set, Rear |
296-25304-10-00 |
US $108.18 |
||
|
3
|
3
94414-17003-00 Rim 1.40X171.40X17 |
94414-17003-00 |
US $114.95 |
||
|
4
|
4
941-25173-14-00
2.50-17 Irc
|
941-25173-14-00 |
— | ||
|
5
|
5
94225-17082-00
Tube (2.50-17)
|
94225-17082-00 |
— | ||
| replacement | |||||
|
5
|
5
94222-17269-00
Tube (2.25-17)(1Aj)
|
94222-17269-00 |
— | ||
|
6
|
6
943-31170-23-00
New Genuine Part
IN PRICE BOOK |
943-31170-23-00 |
— | ||
|
7
|
7
296-25317-00-00
Spacer, Bearing
|
296-25317-00-00 |
— | ||
|
8
|
8
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
9
|
9
93306-20211-00 Bearing (B6202) |
93306-20211-00 |
from US $19.13 |
||
|
10
|
10
931-04210-32-00
Oil Seal, So-Type
|
931-04210-32-00 |
— | ||
|
11
|
11
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $9.92 |
||
|
12
|
12
93210-41041-00 O-Ring |
93210-41041-00 |
from US $1.70 |
||
|
13
|
13
304-25364-01-00 Damper, Clutch |
304-25364-01-00 |
from US $4.96 |
||
|
14
|
14
339-25320-10-00 Brake Shoe Plt Assembly |
339-25320-10-00 |
US $94.64 |
||
|
15
|
15
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
16
|
16
296-W2536-00-00 Brake Shoe Kit |
296-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
16
|
16
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
17
|
17
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
18
|
18
122-25355-00-00 Lever, Camshaft |
122-25355-00-00 |
from US $24.65 |
||
|
19
|
19
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
19
|
19
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
23
|
23
296-25366-01-98 Clutch, Hub |
296-25366-01-98 |
from US $51.88 |
||
| replacement | |||||
|
23
|
23
296-25366-01-33 Clutch, Hub |
296-25366-01-33 |
from US $74.86 |
||
|
24
|
24
122-25441-10-33
Sprocket, Drivn 41T
41T STDU.R.U.R.U.R. |
122-25441-10-33 |
— | ||
|
24
|
24
122-25442-10-00
Sprocket, Drivn 42T
42T U.R.U.R.U.R. |
122-25442-10-00 |
— | ||
|
25
|
25
102-25412-00-00 Washer, Lock |
102-25412-00-00 |
from US $2.55 |
||
| replacements | |||||
|
25
|
25
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
25
|
25
3M5-25412-00-00 Washer, Lock |
3M5-25412-00-00 |
from US $4.39 |
||
|
26
|
26
90101-08672-00 Bolt |
90101-08672-00 |
from US $1.34 |
||
|
27
|
27
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
27
|
27
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
27
|
27
90179-08639-00 Nut, Spec''l Shape (30)30 |
90179-08639-00 |
from US $1.70 |
||
|
28
|
28
353-25381-00-00 Axle, Wheel |
353-25381-00-00 |
from US $27.25 |
||
|
29
|
29
102-25389-00-00 Puller, Chain |
102-25389-00-00 |
from US $10.58 |
||
| replacements | |||||
|
29
|
29
3AC-2538G-10-00 Puller, Chain |
3AC-2538G-10-00 |
from US $10.63 |
||
|
29
|
29
4GL-2538G-10-00 Puller, Chain |
4GL-2538G-10-00 |
from US $10.34 |
||
|
30
|
30
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
31
|
31
353-25387-00-00
Axle, Sprocket
|
353-25387-00-00 |
— | ||
|
32
|
32
93306-00406-00 Bearing |
93306-00406-00 |
from US $15.44 |
||
| replacement | |||||
|
32
|
32
93306-00438-00 Bearing |
93306-00438-00 |
from US $11.58 |
||
|
33
|
33
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.56 |
||
|
34
|
34
93106-30004-00 Oil Seal |
93106-30004-00 |
from US $7.37 |
||
|
35
|
35
90387-18143-00 Collar |
90387-18143-00 |
US $8.08 |
||
|
36
|
36
1NX-25388-00-00 Puller, Chain |
1NX-25388-00-00 |
from US $6.08 |
||
| replacement | |||||
|
36
|
36
4GL-2538A-10-00 Puller, Chain |
4GL-2538A-10-00 |
from US $14.17 |
||
|
37
|
37
90170-18165-00 Nut |
90170-18165-00 |
from US $7.65 |
||
|
38
|
38
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
38
|
38
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
39
|
39
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
40
|
40
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
41
|
41
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
42
|
42
353-25371-00-00
Bar, Tension
|
353-25371-00-00 |
— | ||
|
42
|
42
102-25371-00-00 Bar, Tension |
102-25371-00-00 |
US $10.06 |
||
|
43
|
43
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
43
|
43
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
43
|
43
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
44
|
44
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
44
|
44
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
45
|
45
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
46
|
46
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
47
|
47
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
48
|
48
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
48
|
48
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
49
|
49
945-80521-06-00
Chain(D.i.d.420M 106L)
94504-20106 |
945-80521-06-00 |
— | ||
|
50
|
50
94680-52001-00 Joint, Chain(Did 420M)420M |
94680-52001-00 |
from US $2.98 |
||
|
51
|
51
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
51
|
51
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
