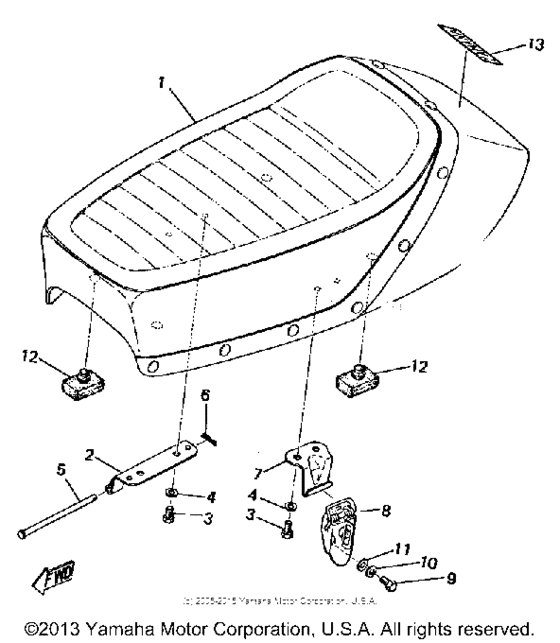

Seat Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-24770-01-29
Semi-Dbl Seat Assembly
|
353-24770-01-29 |
— | ||
|
1
|
1
353-24770-01-K7
Semi-Dbl Seat Assembly
|
353-24770-01-K7 |
— | ||
|
1
|
1
353-24770-01-66
Semi-Dbl Seat Assembly
|
353-24770-01-66 |
— | ||
|
2
|
2
353-24726-00-00
Hinge, Seat
|
353-24726-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
3
|
3
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
917-01051-05-00
Pin, Clevis (3M7)
3M7 |
917-01051-05-00 |
— | ||
|
6
|
6
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
7
|
7
214-24728-00-33
Bracket, Seat
|
214-24728-00-33 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
526-24705-00-00
Seat Lock Assembly
|
526-24705-00-00 |
— | ||
|
9
|
9
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
12
|
12
214-24724-00-00 Damper, Seat |
214-24724-00-00 |
from US $7.65 |
||
|
13
|
13
353-24786-10-00
Emblem
|
353-24786-10-00 |
— | ||
|
13
|
13
353-24786-02-00 Emblem, Yamaha |
353-24786-02-00 |
from US $7.65 |
||
| replacements | |||||
|
13
|
13
3WF-2153E-10-00 Emblem, Yamaha |
3WF-2153E-10-00 |
from US $7.65 |
||
|
13
|
13
3WF-2153E-11-00 |
3WF-2153E-11-00 |
from US $7.65 |
||
