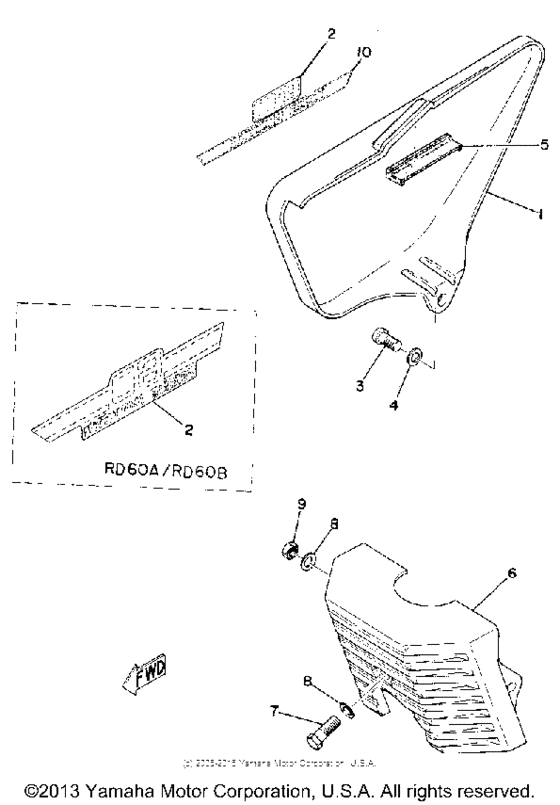

Side cover - front cover Diagram Yamaha RD
- Year
- 1973
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-21721-00-F2
Cover, Side 2
BUTTERFLY BLUE |
353-21721-00-F2 |
— | ||
|
1
|
1
353-21721-00-K7
Cover, Side 2
IVY GREEN |
353-21721-00-K7 |
— | ||
|
1
|
1
353-21721-00-66
Cover, Side 2
SUNSHINE RED |
353-21721-00-66 |
— | ||
|
2
|
2
388-21737-00-00
Emblem
|
388-21737-00-00 |
— | ||
|
2
|
2
388-21737-10-00
Emblem
|
388-21737-10-00 |
— | ||
|
2
|
2
388-21737-02-00
Emblem
|
388-21737-02-00 |
— | ||
|
3
|
3
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
3
|
3
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
4
|
4
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
5
|
5
353-21717-00-00
Damper
|
353-21717-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
353-21731-00-00
Cover, Side 3
|
353-21731-00-00 |
— | ||
|
7
|
7
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
7
|
7
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
8
|
8
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
10
|
10
360-21787-00-00
Emblem 7
|
360-21787-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
