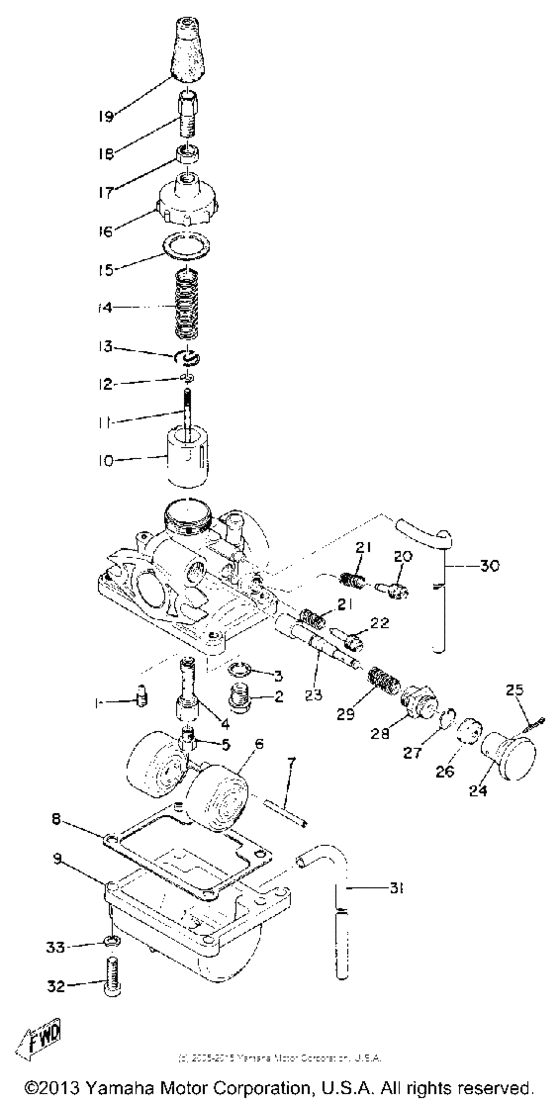

Carburetor Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
260-14142-25-00 Jet, Pilot# 25 |
260-14142-25-00 |
from US $10.46 |
||
|
1
|
1
388-14101-00-00
Carburetor Assembly 1
|
388-14101-00-00 |
— | ||
|
2
|
2
2E9-14190-12-00 Needle Valve Assembly (127-14127-14 |
2E9-14190-12-00 |
from US $61.88 |
||
|
3
|
3
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
4
|
4
127-14141-14-00 Nozzle, Main |
127-14141-14-00 |
from US $24.09 |
||
|
5
|
5
127-14143-18-00 Jet, Main #90#90 U.R.U.R.U.R. |
127-14143-18-00 |
US $16.31 |
||
|
5
|
5
127-14143-20-00 Jet, Main #100#100 U.R.U.R.U.R. |
127-14143-20-00 |
from US $9.99 |
||
|
5
|
5
127-14143-19-00 Jet, Main #95#95 U.R.U.R.U.R. |
127-14143-19-00 |
US $4.79 |
||
|
5
|
5
127-14143-22-00 Jet, Main #110#110 U.R.U.R.U.R. |
127-14143-22-00 |
from US $10.84 |
||
|
6
|
6
353-14185-01-00
Float
|
353-14185-01-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
353-14186-00-00 Pin, Float |
353-14186-00-00 |
from US $4.39 |
||
|
8
|
8
353-14184-00-00 Gasket, Float Chmbr |
353-14184-00-00 |
from US $13.18 |
||
|
10
|
10
353-14112-20-00
Valve, Throttle 1
|
353-14112-20-00 |
— | ||
|
11
|
11
353-14116-02-00
Needle
|
353-14116-02-00 |
— | ||
|
12
|
12
353-14137-00-00
Clip
|
353-14137-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
439-14136-01-00
Seat, Spring
|
439-14136-01-00 |
— | ||
|
14
|
14
353-14131-00-00
Spring, Thrtl Valve
|
353-14131-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
353-14126-00-00
Gasket
|
353-14126-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
353-14158-00-00
Top, Mixing Chamber
|
353-14158-00-00 |
— | ||
|
17
|
17
802-14161-00-00 Nut, Cable Adjusting |
802-14161-00-00 |
from US $2 |
||
|
18
|
18
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $10.63 |
||
|
19
|
19
802-14169-00-00 Cap |
802-14169-00-00 |
from US $5.81 |
||
| replacement | |||||
|
19
|
19
8A7-14169-00-00 Cap |
8A7-14169-00-00 |
from US $5.81 |
||
|
20
|
20
17L-14104-00-00 Air Screw Set |
17L-14104-00-00 |
from US $9.40 |
||
| replacement | |||||
|
20
|
20
36R-14104-00-00 Air Screw Set |
36R-14104-00-00 |
from US $9.92 |
||
|
21
|
21
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $9.49 |
||
|
22
|
22
12G-14103-00-00 Throttle Screw Set |
12G-14103-00-00 |
from US $21.39 |
||
|
23
|
23
304-14171-00-00
Plunger, Starter
|
304-14171-00-00 |
— | ||
|
24
|
24
304-14261-00-00 Holder |
304-14261-00-00 |
from US $31.17 |
||
|
25
|
25
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
26
|
26
132-14173-00-00 Cover, Plunger Cap |
132-14173-00-00 |
from US $8.08 |
||
|
27
|
27
353-14138-00-00 Clip, Plunger |
353-14138-00-00 |
from US $7.76 |
||
|
28
|
28
152-14174-00-00 Cap, Plunger |
152-14174-00-00 |
from US $27.49 |
||
|
29
|
29
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
30
|
30
353-14197-00-00
Pipe, Airvent
|
353-14197-00-00 |
— | ||
|
31
|
31
353-14196-00-00
Pipe, Overflow
|
353-14196-00-00 |
— | ||
| replacement | |||||
|
31
|
31
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
|
32
|
32
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
32
|
32
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
33
|
33
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
33
|
33
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
