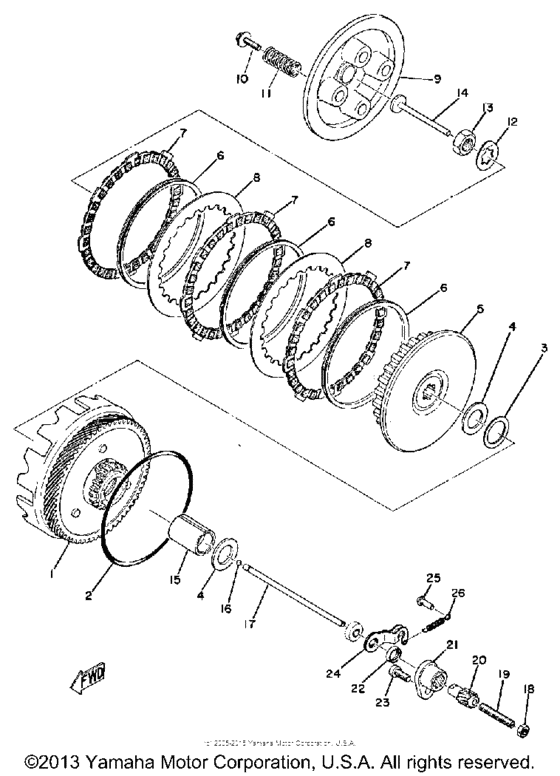

Clutch Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-16301-01-00
Clutch Assembly
|
353-16301-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
353-16150-02-00
Pri Drvn Gear
|
353-16150-02-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
93210-98202-00 O-Ring |
93210-98202-00 |
from US $4.96 |
||
|
3
|
3
90201-23315-00
Washer, Plate
|
90201-23315-00 |
— | ||
|
4
|
4
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
5
|
5
353-16371-00-00
Boss, Clutch
|
353-16371-00-00 |
— | ||
|
6
|
6
131-16367-00-00 Ring, Cushion |
131-16367-00-00 |
from US $13.12 |
||
|
7
|
7
131-16321-00-00
Plate, Friction
|
131-16321-00-00 |
— | ||
| replacement | |||||
|
7
|
7
4EU-16321-00-00 Plate, Friction |
4EU-16321-00-00 |
from US $23.52 |
||
|
8
|
8
257-16324-00-00 Plate, Clutch 1 |
257-16324-00-00 |
from US $14.02 |
||
|
9
|
9
353-16351-00-00
Plate, Pressure 1
|
353-16351-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90119-05001-00 Bolt, With Washer |
90119-05001-00 |
from US $1.84 |
||
|
11
|
11
90501-20125-00 Spring, Compression |
90501-20125-00 |
from US $4.11 |
||
|
12
|
12
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $2.20 |
||
|
13
|
13
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.41 |
||
|
14
|
14
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $6.62 |
||
|
15
|
15
90560-17123-00 Spacer |
90560-17123-00 |
US $32.54 |
||
|
16
|
16
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
16
|
16
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
17
|
17
353-16357-00-00 Rod, Push 2 |
353-16357-00-00 |
from US $12.49 |
||
|
18
|
18
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
18
|
18
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
19
|
19
90113-06013-00 Bolt, Set |
90113-06013-00 |
from US $2.69 |
||
|
20
|
20
241-16341-01-00 Screw, Push |
241-16341-01-00 |
from US $16.01 |
||
|
21
|
21
353-16396-00-00 Housing, Push Screw |
353-16396-00-00 |
from US $32.16 |
||
|
22
|
22
93104-10085-00 Oil Seal, So-Type |
93104-10085-00 |
from US $2 |
||
|
23
|
23
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
23
|
23
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
24
|
24
451-16342-00-00 Lever, Push |
451-16342-00-00 |
from US $25.43 |
||
|
25
|
25
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
26
|
26
90506-07066-00 Spring, Tension |
90506-07066-00 |
from US $4.25 |
||
