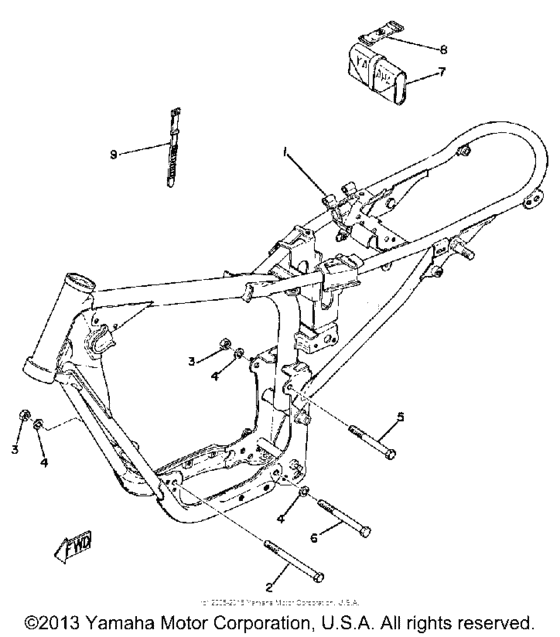

Frame Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-21110-02-33
Frame
|
353-21110-02-33 |
— | ||
|
2
|
2
95811-08120-00 Bolt, Flange (22W) |
95811-08120-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
95817-08120-00 Bolt, Flange |
95817-08120-00 |
from US $4.53 |
||
|
3
|
3
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
3
|
3
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
3
|
3
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
3
|
3
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
4
|
4
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
5
|
5
97023-08090-00
Bolt (97321-08090)
97321-08090 |
97023-08090-00 |
— | ||
|
5
|
5
95811-08090-00 Bolt, Flange (2K7) |
95811-08090-00 |
from US $5.24 |
||
| replacement | |||||
|
5
|
5
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
6
|
6
901-06080-21-00 Bolt, Dome Head |
901-06080-21-00 |
US $4.84 |
||
|
7
|
7
353-28100-10-00
Tool Kit
|
353-28100-10-00 |
— | ||
| replacement | |||||
|
7
|
7
353-W2810-01-00 Tool Kit |
353-W2810-01-00 |
US $76.23 |
||
|
8
|
8
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
|
9
|
9
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
