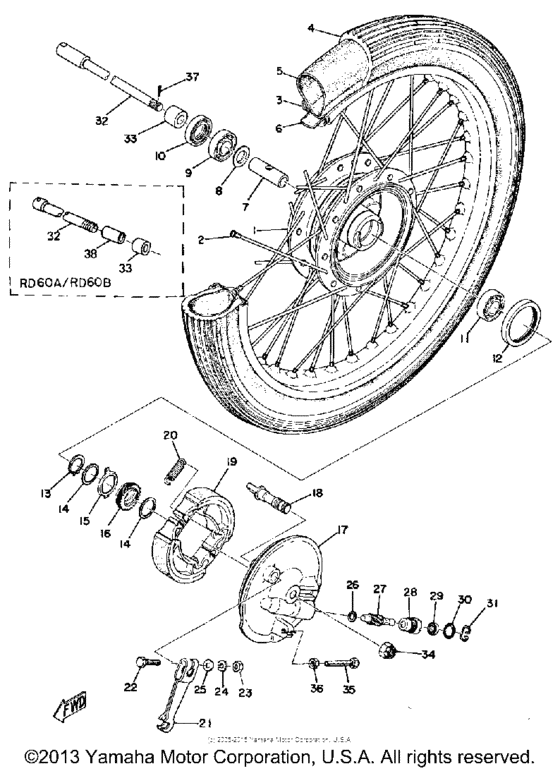

Front wheel Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
296-25111-00-00
Hub, Front
|
296-25111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
109-25104-00-00 Spoke Set, Front |
109-25104-00-00 |
US $90.91 |
||
| replacement | |||||
|
2
|
2
109-25104-10-00 Spoke Set, Front |
109-25104-10-00 |
US $90.91 |
||
|
3
|
3
94414-17003-00 Rim 1.40X171.40X17 |
94414-17003-00 |
US $114.95 |
||
|
4
|
4
941-25173-13-00
250X17 Frntrib
|
941-25173-13-00 |
— | ||
|
5
|
5
94225-17082-00
Tube (2.50-17)
|
94225-17082-00 |
— | ||
| replacement | |||||
|
5
|
5
94222-17269-00
Tube (2.25-17)(1Aj)
|
94222-17269-00 |
— | ||
|
6
|
6
94332-17112-00 Band, Rim (2.75-17)2.75-17 |
94332-17112-00 |
from US $5.67 |
||
|
7
|
7
905-60103-03-00
Spacer, Bearing
|
905-60103-03-00 |
— | ||
|
8
|
8
2E9-25116-00-00 Flange, Spacer 2 |
2E9-25116-00-00 |
from US $3.12 |
||
|
9
|
9
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $9.60 |
||
|
10
|
10
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
11
|
11
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $9.60 |
||
|
12
|
12
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $5.64 |
||
|
13
|
13
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
14
|
14
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
15
|
15
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
16
|
16
296-25135-00-00 Gear, Drive |
296-25135-00-00 |
US $36.06 |
||
|
17
|
17
393-25016-10-35
Brake Shoe Plt Assembly
|
393-25016-10-35 |
— | ||
|
18
|
18
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
19
|
19
296-W2536-00-00 Brake Shoe Kit |
296-W2536-00-00 |
from US $23.89 |
||
| replacement | |||||
|
19
|
19
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
19
|
19
326-W2536-00-00
Brakeshoe Set-2Pcs (326-25330-1
326-25330-1 |
326-W2536-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4BE-W253E-00-00 Brake Shoe Kit326-25330-1 |
4BE-W253E-00-00 |
from US $27.27 |
||
|
20
|
20
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
21
|
21
109-25155-00-00 Lever, Camshaft 1 |
109-25155-00-00 |
US $49.32 |
||
|
22
|
22
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
23
|
23
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
26
|
26
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
27
|
27
296-25138-00-00 Gear, Meter |
296-25138-00-00 |
US $28.76 |
||
|
28
|
28
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
29
|
29
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
30
|
30
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
30
|
30
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
31
|
31
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $2.69 |
||
|
32
|
32
999-99021-88-00
Axle, Wheel (353-25181-03-00)
353-25181-03-00 |
999-99021-88-00 |
— | ||
|
33
|
33
90387-10077-00
Collar
|
90387-10077-00 |
— | ||
| replacement | |||||
|
33
|
33
90387-12095-00 Collar |
90387-12095-00 |
from US $5.95 |
||
|
34
|
34
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
34
|
34
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
35
|
35
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
36
|
36
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
37
|
37
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
38
|
38
90387-10264-00
Collar
|
90387-10264-00 |
— | ||
