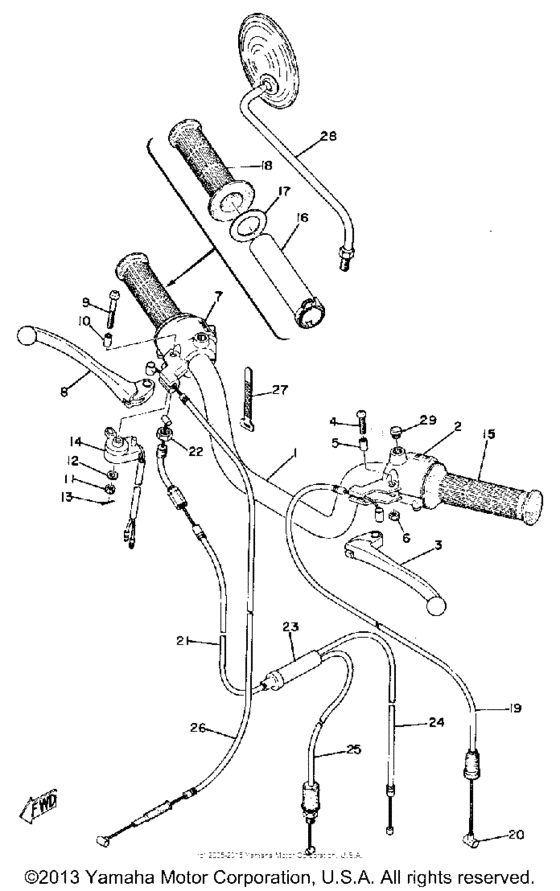

Handle - wire Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
132-26111-01-00
Handlebar
|
132-26111-01-00 |
— | ||
|
1
|
1
388-26111-01-00
Handlebar
662~RD60B |
388-26111-01-00 |
— | ||
|
2
|
2
353-82910-01-00
Lever Holder Assembly 1
|
353-82910-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
388-82910-01-00
Lever Holder Assembly 1
|
388-82910-01-00 |
— | ||
|
3
|
3
137-83912-02-38 Lever L |
137-83912-02-38 |
from US $28.71 |
||
|
4
|
4
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
5
|
5
137-83913-01-00
Collar, Lever 1
|
137-83913-01-00 |
— | ||
|
6
|
6
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
7
|
7
232-82920-32-94
Lever Holder Assembly 2
|
232-82920-32-94 |
— | ||
|
7
|
7
388-82920-93-00
Lever Holder Assembly 2
|
388-82920-93-00 |
— | ||
|
8
|
8
2N3-83922-00-00 Lever R |
2N3-83922-00-00 |
from US $23.09 |
||
|
9
|
9
98501-05046-00 Screw, Pan Head |
98501-05046-00 |
from US $3.54 |
||
| replacement | |||||
|
9
|
9
98580-05545-00 Screw, Pan Head |
98580-05545-00 |
from US $3.54 |
||
|
10
|
10
137-83913-01-00
Collar, Lever 1
|
137-83913-01-00 |
— | ||
|
11
|
11
953-01059-00-00
Nut, Slotted
|
953-01059-00-00 |
— | ||
| replacement | |||||
|
11
|
11
953-07059-00-00
NUT(CROWN)
|
953-07059-00-00 |
— | ||
|
12
|
12
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
13
|
13
91401-12018-00
Pin, Cotter
|
91401-12018-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
395-83980-00-00 Front Stop Switch AsAS |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
14
|
14
395-83980-09-00 Front Stop Switch AssyAS |
395-83980-09-00 |
from US $28.79 |
||
|
14
|
14
232-83980-30-00 Stop Switch Assembly |
232-83980-30-00 |
from US $52.78 |
||
|
15
|
15
353-26241-00-00 Grip LhLH |
353-26241-00-00 |
from US $11.76 |
||
|
16
|
16
1V1-26243-00-00 Tube, Thrtl Guide |
1V1-26243-00-00 |
from US $17.10 |
||
|
17
|
17
150-26249-00-00
Ring, Leaf
|
150-26249-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
353-26242-00-00 Grip RhGrip,right RH |
353-26242-00-00 |
from US $11.76 |
||
|
19
|
19
353-26335-00-00
Cable, clutch
|
353-26335-00-00 |
— | ||
|
19
|
19
353-26335-02-00
Cable, clutch
|
353-26335-02-00 |
— | ||
|
20
|
20
164-26363-00-00 End, Cable |
164-26363-00-00 |
from US $3.54 |
||
|
21
|
21
353-26311-00-00
Cable, Throttle 1
|
353-26311-00-00 |
— | ||
|
21
|
21
353-26311-02-00
Cable, Throttle 1
|
353-26311-02-00 |
— | ||
|
22
|
22
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
23
|
23
4U1-26261-00-00 Connector, Cable |
4U1-26261-00-00 |
from US $20.97 |
||
|
24
|
24
367-26312-01-00 Cable, Throttle 2 |
367-26312-01-00 |
US $9.92 |
||
| replacements | |||||
|
24
|
24
336-26312-00-00 Cable, Throttle 2 |
336-26312-00-00 |
US $9.92 |
||
|
24
|
24
3T2-26312-00-00 Cable, Throttle 2 |
3T2-26312-00-00 |
US $9.92 |
||
|
24
|
24
253-26312-00-00
New Genuine Part
IN PRICE BOOK |
253-26312-00-00 |
— | ||
|
25
|
25
353-26321-00-00
Cable, Pump
|
353-26321-00-00 |
— | ||
|
25
|
25
353-26321-02-00
Cable, Pump
|
353-26321-02-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
353-26341-00-00
Cable, Brake
|
353-26341-00-00 |
— | ||
|
26
|
26
353-26341-02-00
Cable, Brake
|
353-26341-02-00 |
— | ||
|
27
|
27
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
28
|
28
266-26290-00-00
Mirror Assembly Rh
RH ALTERNATE PARTS |
266-26290-00-00 |
— | ||
|
28
|
28
266-26290-10-00
3Mirror Assembly Lh
LH |
266-26290-10-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
29
|
29
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
29
|
29
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
