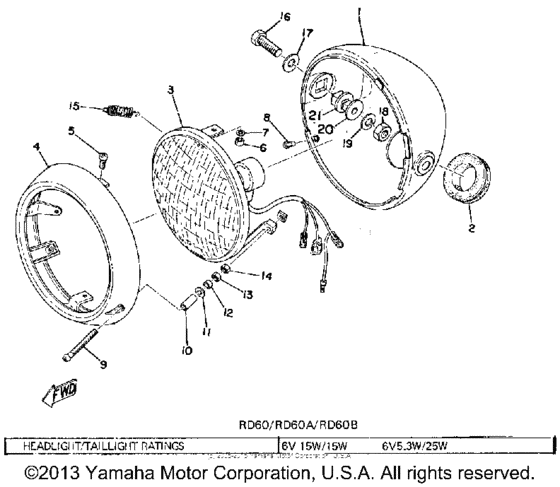

Head lamp Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
388-84130-60-F2
Body Assembly, Headlight
|
388-84130-60-F2 |
— | ||
|
1
|
1
388-84130-60-K7
Body Assembly, Headlight
|
388-84130-60-K7 |
— | ||
|
1
|
1
388-84130-60-66
Body Assembly, Headlight
|
388-84130-60-66 |
— | ||
|
2
|
2
214-84153-60-00 Grommet, Wire Harness |
214-84153-60-00 |
from US $3.12 |
||
|
3
|
3
338-84120-60-00
Lens Assembly
|
338-84120-60-00 |
— | ||
|
4
|
4
261-84315-61-00
Rim, Headlight
|
261-84315-61-00 |
— | ||
|
5
|
5
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
6
|
6
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
7
|
7
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
8
|
8
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
9
|
9
198-84331-60-00
Screw, Rim Adjusting
|
198-84331-60-00 |
— | ||
|
10
|
10
233-84133-60-00
Collar, Screw
|
233-84133-60-00 |
— | ||
|
11
|
11
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
12
|
12
132-84328-60-00
Spacer
|
132-84328-60-00 |
— | ||
|
13
|
13
95301-04600-00 Nut |
95301-04600-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
14
|
14
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.12 |
||
|
15
|
15
132-84335-60-00
Spring
|
132-84335-60-00 |
— | ||
|
16
|
16
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
17
|
17
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
18
|
18
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
19
|
19
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
20
|
20
214-84145-60-00 Collar, Body FtngM6-028 |
214-84145-60-00 |
US $22.66 |
||
|
21
|
21
214-84143-60-00
Damper, Hdlt Stay
M6-028 |
214-84143-60-00 |
— | ||
