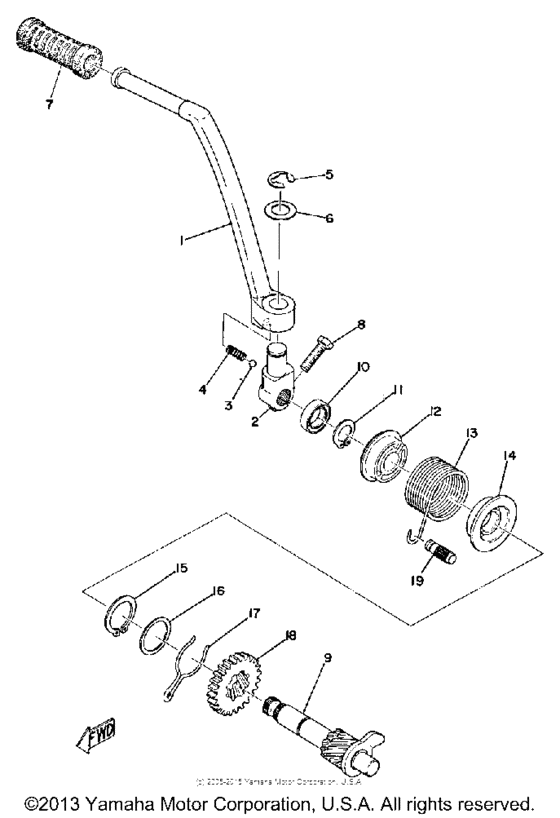

Kick starter Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5G1-15620-00-00 Kick Crank Assembly |
5G1-15620-00-00 |
from US $118.62 |
||
|
2
|
2
337-15621-01-00 Boss, Kick Crank |
337-15621-01-00 |
from US $103.84 |
||
|
3
|
3
93507-32031-00 Ball 7-32 |
93507-32031-00 |
from US $1.66 |
||
|
4
|
4
90501-12081-00 Spring, Compression |
90501-12081-00 |
from US $1.56 |
||
|
5
|
5
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
6
|
6
90201-15234-00 Washer, Plate (1.5T)1.5T |
90201-15234-00 |
from US $1.70 |
||
|
7
|
7
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $2 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
9
|
9
353-15660-01-00
Kick Axle Assembly
|
353-15660-01-00 |
— | ||
|
10
|
10
93109-15001-00 Oil Seal |
93109-15001-00 |
from US $4.11 |
||
|
11
|
11
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
12
|
12
132-15676-01-00 Cover, Spring |
132-15676-01-00 |
from US $9.92 |
||
|
13
|
13
90508-26136-00 Spring, Torsion |
90508-26136-00 |
from US $8.93 |
||
|
14
|
14
90508-26136-00 Spring, Torsion |
90508-26136-00 |
from US $8.93 |
||
|
15
|
15
93410-25017-00 Circlip |
93410-25017-00 |
from US $2.32 |
||
|
16
|
16
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.70 |
||
|
17
|
17
90468-26038-00
Clip
|
90468-26038-00 |
— | ||
|
18
|
18
353-15641-00-00
Gear, Kick
24T |
353-15641-00-00 |
— | ||
|
19
|
19
248-15668-00-00 Stopper |
248-15668-00-00 |
from US $2.32 |
||
