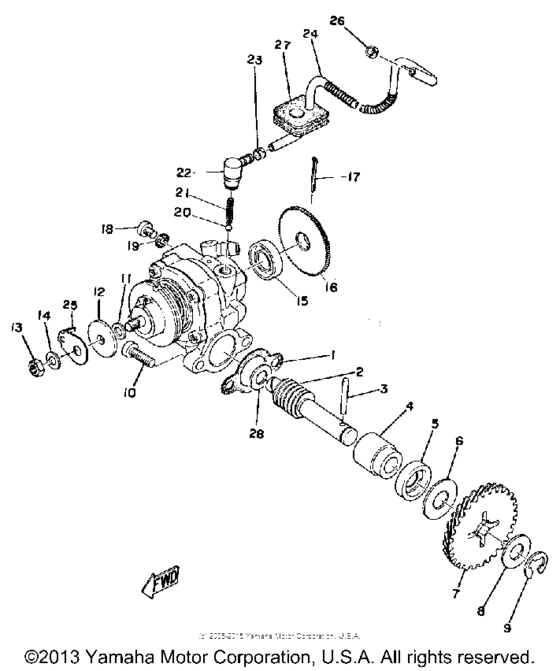

Oil pump Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3MT-13116-00-00
Gasket, Pump Case
|
3MT-13116-00-00 |
— | ||
| replacement | |||||
|
1
|
1
126-13116-01-00 Gasket, Pump Case |
126-13116-01-00 |
from US $1.70 |
||
|
1
|
1
367-13101-00-00
Oil Pump Assembly
|
367-13101-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
257-13175-00-00
Shaft, Worm
|
257-13175-00-00 |
— | ||
|
3
|
3
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.66 |
||
|
4
|
4
1E7-13176-00-00
Metal, Worm Shaft Outer
|
1E7-13176-00-00 |
— | ||
| replacement | |||||
|
4
|
4
137-13176-00-00 Metal, Worm Shaft Outer |
137-13176-00-00 |
from US $9.59 |
||
|
5
|
5
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $2.98 |
||
|
6
|
6
90201-106M5-00 Washer, Plate |
90201-106M5-00 |
from US $2.13 |
||
|
7
|
7
353-13178-00-00
Gear, Pump Drive
|
353-13178-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
902-01101-29-00
Washer, Plate
|
902-01101-29-00 |
— | ||
|
9
|
9
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
10
|
10
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
11
|
11
137-13137-00-10 Shim (T=1.0) |
137-13137-00-10 |
from US $3.26 |
||
|
12
|
12
137-13138-01-00 Plate, Adjusting |
137-13138-01-00 |
from US $7.93 |
||
|
13
|
13
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $2.98 |
||
|
16
|
16
353-13128-00-00
Plate, Starter
|
353-13128-00-00 |
— | ||
|
17
|
17
91401-12018-00
Pin, Cotter
|
91401-12018-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
989-01040-08-00
Screw, Bind
|
989-01040-08-00 |
— | ||
| replacement | |||||
|
18
|
18
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
19
|
19
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
20
|
20
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
21
|
21
90501-02018-00 Spring, Compression |
90501-02018-00 |
from US $3.97 |
||
|
22
|
22
353-13552-01-00 Nozzle |
353-13552-01-00 |
from US $10.98 |
||
|
23
|
23
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
24
|
24
90445-05217-00 Hose (L700) |
90445-05217-00 |
US $4.96 |
||
| replacement | |||||
|
24
|
24
904-4505M-07-00 Hose (L700) |
904-4505M-07-00 |
from US $4.34 |
||
|
25
|
25
367-13146-01-00 Cover,adjust Pulley |
367-13146-01-00 |
from US $3.40 |
||
|
26
|
26
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
|
27
|
27
248-13174-00-00 Holder, Oil Pipe |
248-13174-00-00 |
from US $5.53 |
||
|
28
|
28
256-17837-00-00 New Genuine PartIN PRICE BOOK |
256-17837-00-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
90201-08624-00 Washer, PlateIN PRICE BOOK |
90201-08624-00 |
from US $1.70 |
||
