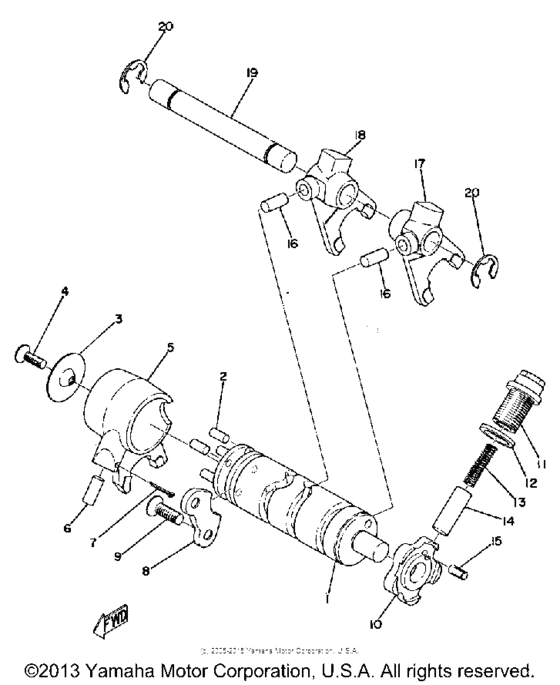

Shift shaft (1) Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4U5-18540-00-00
Shift Cam Assembly
|
4U5-18540-00-00 |
— | ||
|
2
|
2
93604-10011-00 Pin, Dowel |
93604-10011-00 |
from US $1.34 |
||
|
3
|
3
214-18561-00-00
Plate, Side 1
|
214-18561-00-00 |
— | ||
|
4
|
4
98701-05012-00 Screw, Countersunk |
98701-05012-00 |
from US $1.26 |
||
| replacement | |||||
|
4
|
4
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $1.98 |
||
|
5
|
5
353-18511-01-00
Fork, Shift 1
|
353-18511-01-00 |
— | ||
|
6
|
6
93606-14081-00 Pin, Dowel |
93606-14081-00 |
from US $1.28 |
||
|
7
|
7
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
7
|
7
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
8
|
8
353-18562-00-00
Plate, Stopper 2
|
353-18562-00-00 |
— | ||
|
9
|
9
98701-06014-00 Screw Flat Head |
98701-06014-00 |
from US $2.27 |
||
| replacements | |||||
|
9
|
9
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $1.34 |
||
|
9
|
9
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
10
|
10
353-18141-00-00
Plate, Stopper
M5-043 |
353-18141-00-00 |
— | ||
|
11
|
11
90109-14485-00 Bolt |
90109-14485-00 |
from US $8.86 |
||
|
12
|
12
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
12
|
12
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
13
|
13
90501-09292-00
Spring, Compression
|
90501-09292-00 |
— | ||
|
13
|
13
353-18557-00-00
Spring, Cam Stopper
|
353-18557-00-00 |
— | ||
|
14
|
14
278-18547-02-00
Stopper, Cam
|
278-18547-02-00 |
— | ||
|
14
|
14
353-18547-00-00
Stopper, Cam
|
353-18547-00-00 |
— | ||
|
15
|
15
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
15
|
15
902-56050-02-00
Pin, Grvd Straight
|
902-56050-02-00 |
— | ||
|
16
|
16
93606-14081-00 Pin, Dowel |
93606-14081-00 |
from US $1.28 |
||
|
17
|
17
353-18512-01-00
Fork, Shift 2
|
353-18512-01-00 |
— | ||
|
18
|
18
353-18513-01-00
Fork, Shift 3
|
353-18513-01-00 |
— | ||
|
19
|
19
214-18531-00-00 Bar, Shift Fork Guide 1 |
214-18531-00-00 |
US $18.42 |
||
|
20
|
20
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
