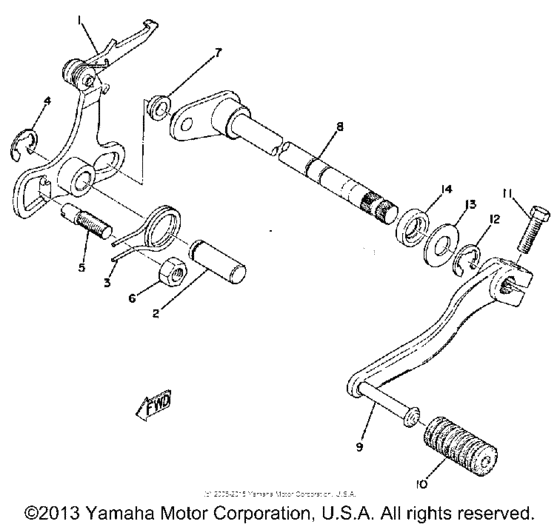

Shift shaft (2) Diagram Yamaha RD
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-18120-00-00
Shift Lever Assembly
|
353-18120-00-00 |
— | ||
|
2
|
2
367-18197-00-00
Shaft
|
367-18197-00-00 |
— | ||
|
3
|
3
90508-32054-00 Spring, Torsion |
90508-32054-00 |
from US $3.85 |
||
|
4
|
4
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
5
|
5
90149-08094-00 Screw |
90149-08094-00 |
from US $4.96 |
||
|
6
|
6
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
7
|
7
214-18178-00-00 Roller, Shift Lever |
214-18178-00-00 |
US $17.75 |
||
|
8
|
8
353-18101-03-00
Shift Shaft Assembly
|
353-18101-03-00 |
— | ||
|
9
|
9
2J5-18111-00-00 Pedal, Shift |
2J5-18111-00-00 |
from US $69.44 |
||
| replacement | |||||
|
9
|
9
2W5-18111-00-00 Pedal, Shift |
2W5-18111-00-00 |
from US $57.96 |
||
|
10
|
10
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
11
|
11
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
12
|
12
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
13
|
13
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.66 |
||
|
14
|
14
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.53 |
||
