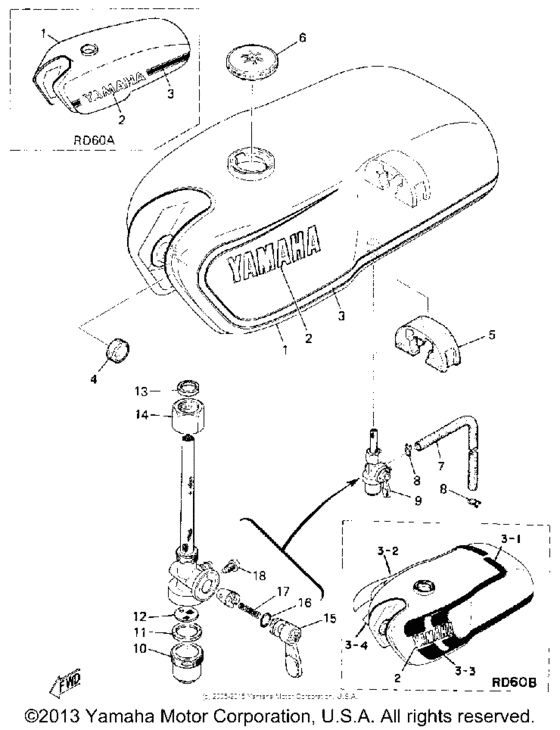

Fuel tank Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2L4-24110-Y0-02
Fuel Tank
|
2L4-24110-Y0-02 |
— | ||
|
1
|
1
2L4-24110-Y0-06
Fuel Tank
|
2L4-24110-Y0-06 |
— | ||
|
1
|
1
353-24110-00-X5
Fuel Tank
|
353-24110-00-X5 |
— | ||
|
1
|
1
388-24244-00-00
Graphic, Fuel Tnk 1
|
388-24244-00-00 |
— | ||
|
2
|
2
322-24161-00-00
Emblem, Yamaha
|
322-24161-00-00 |
— | ||
| replacements | |||||
|
2
|
2
99221-00140-00 Emblem, Yamaha |
99221-00140-00 |
from US $5.80 |
||
|
2
|
2
992-41001-40-00 Emblem, Yamaha |
992-41001-40-00 |
from US $15.73 |
||
|
2
|
2
388-24245-00-00
Graphic, Fuel Tnk 2
|
388-24245-00-00 |
— | ||
|
3
|
3
353-24244-00-00
Graphic, Fuel Tnk 1
|
353-24244-00-00 |
— | ||
|
3
|
3
353-24245-00-00
Graphic, Fuel Tnk 2
|
353-24245-00-00 |
— | ||
|
3
|
3
360-24258-00-00
Grphc, Fuel Tank 11
11 |
360-24258-00-00 |
— | ||
|
3
|
3
388-24246-00-00
Graphic, Fuel Tnk 3
|
388-24246-00-00 |
— | ||
|
4
|
4
122-24181-00-00 Damper, Locating 1 |
122-24181-00-00 |
from US $3.51 |
||
|
4
|
4
388-24247-00-00
Graphic, Fuel Tnk 4
|
388-24247-00-00 |
— | ||
|
5
|
5
353-24182-00-00 Damper, Locating 2 |
353-24182-00-00 |
from US $14.31 |
||
|
6
|
6
122-24610-01-00 Cap Assembly |
122-24610-01-00 |
from US $22.53 |
||
|
7
|
7
90445-09073-00 Hose (L420) |
90445-09073-00 |
from US $6.52 |
||
| replacement | |||||
|
7
|
7
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
8
|
8
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
9
|
9
367-24500-04-00 Fuel Cock Assembly 1 |
367-24500-04-00 |
from US $122.26 |
||
|
10
|
10
122-24521-00-00
Cup, Filter
|
122-24521-00-00 |
— | ||
|
11
|
11
102-24522-01-00 Gasket |
102-24522-01-00 |
from US $5.24 |
||
| replacement | |||||
|
11
|
11
102-24522-02-00 Gasket |
102-24522-02-00 |
US $7.88 |
||
|
12
|
12
122-24515-00-00
Net, Filter 2
|
122-24515-00-00 |
— | ||
|
13
|
13
122-24532-00-00 Gasket |
122-24532-00-00 |
from US $5.67 |
||
|
14
|
14
122-24531-00-00
Nut
|
122-24531-00-00 |
— | ||
|
15
|
15
122-24524-00-00
Lever, Cock
|
122-24524-00-00 |
— | ||
|
16
|
16
122-24534-00-00
Seal, Cock
|
122-24534-00-00 |
— | ||
|
17
|
17
905-01070-29-00
Spring, Compression
|
905-01070-29-00 |
— | ||
|
18
|
18
127-24535-00-00
Screw, Lvr Fitting
|
127-24535-00-00 |
— | ||
