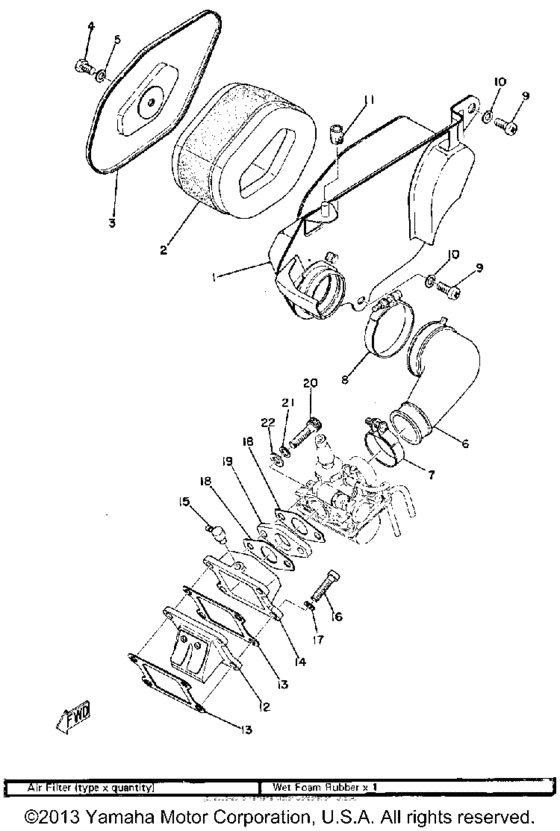

Intake Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-14411-00-33
Case, Air Cleaner 1
YAMAHA BLACK |
353-14411-00-33 |
— | ||
|
2
|
2
353-14451-09-00
Element, Air Clnr
|
353-14451-09-00 |
— | ||
|
3
|
3
388-14412-00-33
Cap, Cleaner Case 1
YAMAHA BLACK |
388-14412-00-33 |
— | ||
|
4
|
4
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
6
|
6
353-14453-01-00
Joint, Air Clnr 1
|
353-14453-01-00 |
— | ||
|
7
|
7
90460-33013-00
Clamp, Hose (353-14455-00-00)
353-14455-00-00 |
90460-33013-00 |
— | ||
|
8
|
8
904-60492-48-00
Clamp, Hose
|
904-60492-48-00 |
— | ||
|
9
|
9
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
9
|
9
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
11
|
11
353-21778-00-00
Damper, Locating 1
|
353-21778-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
353-13610-01-00
Reed Valve Assembly
|
353-13610-01-00 |
— | ||
|
13
|
13
3MT-13621-00-00 Gasket, Valve Seat |
3MT-13621-00-00 |
from US $5.81 |
||
|
14
|
14
353-13565-00-00
Joint, Carburetor
|
353-13565-00-00 |
— | ||
|
15
|
15
278-13552-02-00
Nozzle
|
278-13552-02-00 |
— | ||
| replacement | |||||
|
15
|
15
3XV-13741-00-00
Nozzle
|
3XV-13741-00-00 |
— | ||
|
16
|
16
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
16
|
16
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
16
|
16
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
3FD-13556-00-00 Gasket, Manifold |
3FD-13556-00-00 |
from US $5.81 |
||
|
19
|
19
353-13555-00-00
Manifold, Intake
|
353-13555-00-00 |
— | ||
|
20
|
20
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
20
|
20
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
