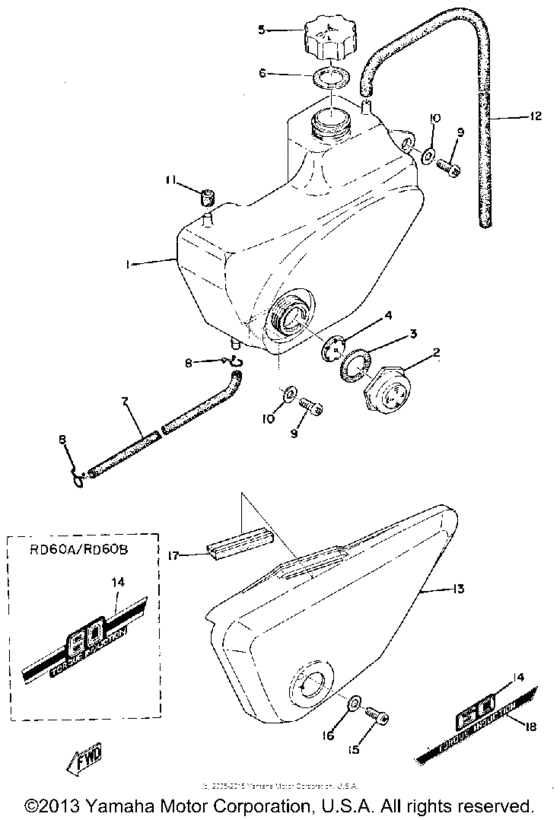

Oil tank Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
353-21751-00-00
Tank, Oil
|
353-21751-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
353-21764-00-00
Lens, Level Gauge
|
353-21764-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
353-21763-00-00
Gasket, Level Gauge
|
353-21763-00-00 |
— | ||
|
4
|
4
353-21761-00-00
Gauge, Level
|
353-21761-00-00 |
— | ||
|
5
|
5
296-21771-62-00
Body, Cap
|
296-21771-62-00 |
— | ||
|
6
|
6
296-21772-00-00
Gasket, Cap
|
296-21772-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
90445-09107-00 Hose (L420) |
90445-09107-00 |
from US $6.52 |
||
| replacements | |||||
|
7
|
7
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $4.96 |
||
|
7
|
7
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
8
|
8
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
9
|
9
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
9
|
9
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
10
|
10
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
11
|
11
353-21778-00-00
Damper, Locating 1
|
353-21778-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
353-21745-00-00
Pipe, Oil Tnk Brthr
|
353-21745-00-00 |
— | ||
|
13
|
13
353-21711-00-F2
Cover, Side 1
BUTTERFLY BLUE |
353-21711-00-F2 |
— | ||
|
13
|
13
353-21711-00-K7
Cover, Side 1
IVY GREEN |
353-21711-00-K7 |
— | ||
|
13
|
13
353-21711-00-66
Cover, Side 1
SUNSHINE RED |
353-21711-00-66 |
— | ||
|
14
|
14
388-21737-00-00
Emblem
|
388-21737-00-00 |
— | ||
|
14
|
14
388-21737-02-00
Emblem
|
388-21737-02-00 |
— | ||
|
14
|
14
388-21737-10-00
Emblem
|
388-21737-10-00 |
— | ||
|
15
|
15
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
15
|
15
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
16
|
16
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
17
|
17
353-21717-00-00
Damper
|
353-21717-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
360-21787-00-00
Emblem 7
|
360-21787-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
