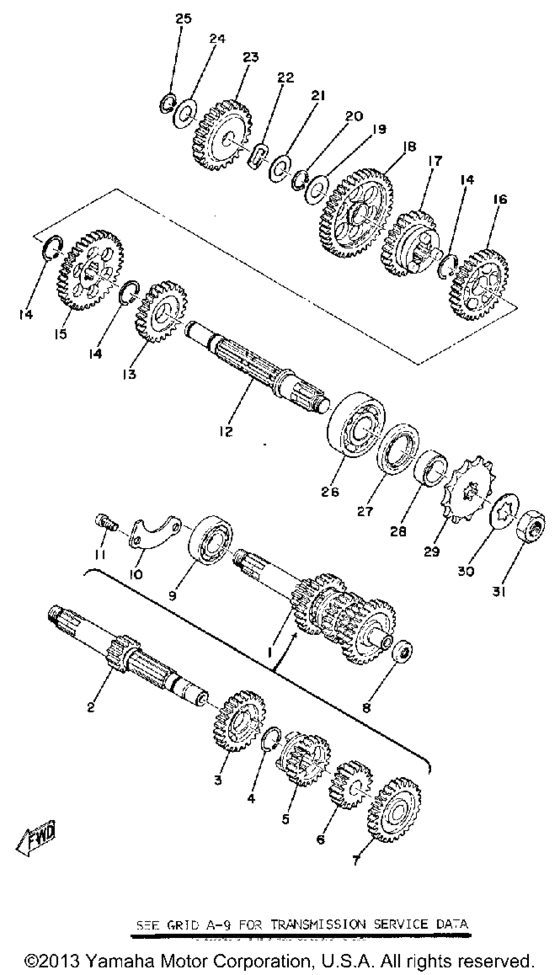

Transmission Diagram Yamaha RD
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 600
- Model
- RD60
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
353-17411-01-00
Axle, Main
|
353-17411-01-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
353-17141-12-00 Gear, 4Th Pinion4TH PINION |
353-17141-12-00 |
US $93.62 |
||
|
4
|
4
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
5
|
5
353-17131-10-00 Gear, 3Rd Pinion3RD PINION |
353-17131-10-00 |
US $97.67 |
||
|
6
|
6
353-17121-11-00 Gear, 2Nd Pinion2ND PINION |
353-17121-11-00 |
US $79.45 |
||
|
7
|
7
353-17151-00-00
Gear, 5Th Pinion
5TH PINION |
353-17151-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
5TH PINION |
999-99999-99-00 |
— | ||
|
8
|
8
93102-04382-00 Oil Seal, Sd-Type |
93102-04382-00 |
from US $6.38 |
||
|
9
|
9
93306-20333-00 Bearing(39K) |
93306-20333-00 |
from US $15.30 |
||
| replacement | |||||
|
9
|
9
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
10
|
10
353-17471-00-00
Plate, Cover
|
353-17471-00-00 |
— | ||
|
11
|
11
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
12
|
12
598-17421-00-00
Axle, Drive
|
598-17421-00-00 |
— | ||
|
13
|
13
353-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
353-17251-00-00 |
— | ||
|
14
|
14
93440-16089-00 Circlip (4V0) |
93440-16089-00 |
from US $2.13 |
||
|
15
|
15
353-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
353-17221-00-00 |
— | ||
|
16
|
16
353-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
353-17231-00-00 |
— | ||
|
17
|
17
353-17241-00-00
Gear, 4Th Wheel (27T)
4TH WHEEL |
353-17241-00-00 |
— | ||
|
18
|
18
353-17211-01-00
Gear, 1St Wheel
1ST WHEEL |
353-17211-01-00 |
— | ||
|
19
|
19
257-17219-00-00 Shim |
257-17219-00-00 |
from US $2.70 |
||
|
20
|
20
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
21
|
21
90201-13202-00 Washer Plate 201156530000 |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
22
|
22
90206-15021-00 Washer, Wave |
90206-15021-00 |
from US $3.12 |
||
|
23
|
23
353-15651-00-00
Gear, Kick Idle
|
353-15651-00-00 |
— | ||
|
24
|
24
902-0112M-34-00 Washer, Plate |
902-0112M-34-00 |
from US $2.69 |
||
|
25
|
25
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
26
|
26
93306-30302-00 Brg,r-B 6303 47Mm 115G Nk |
93306-30302-00 |
from US $19.55 |
||
|
27
|
27
93102-25017-00 Oil Seal |
93102-25017-00 |
from US $2.98 |
||
|
28
|
28
90387-17137-00
Collar
|
90387-17137-00 |
— | ||
|
29
|
29
93811-12009-00 Sprocket, Driven (257-17461-21)257-17461-21 U.R.U.R.U.R. |
93811-12009-00 |
from US $17.21 |
||
|
29
|
29
93811-13020-00 Sprocket, Drive (257-17461-31)Sprocket, drive (2571746131) 257-17461-31 U.R.U.R.U.R.STD |
93811-13020-00 |
US $15.53 |
||
| replacement | |||||
|
29
|
29
938-11130-19-00 Sprocket,drive 13T(12N1746131)257-17461-31 U.R.U.R.U.R.STD |
938-11130-19-00 |
US $15.08 |
||
|
29
|
29
93811-14033-00 Sprocket, DriveSprocket, drive |
93811-14033-00 |
from US $18.56 |
||
|
29
|
29
93811-11005-00 Sprocket, Drive (257-17461-11)257-17461-11 U.R.U.R.U.R. |
93811-11005-00 |
from US $17.96 |
||
| replacement | |||||
|
29
|
29
938-11110-04-00 Sprocket,drive 11T(13N1746111)257-17461-11 U.R.U.R.U.R. |
938-11110-04-00 |
from US $17.93 |
||
|
30
|
30
90215-13019-00 Washer,lock |
90215-13019-00 |
from US $4.39 |
||
| replacement | |||||
|
30
|
30
902-15130-26-00 Washer Lock 283174640000 |
902-15130-26-00 |
from US $3.24 |
||
|
31
|
31
90179-12181-00 Nut, Spec''l Shape |
90179-12181-00 |
from US $10.15 |
||
