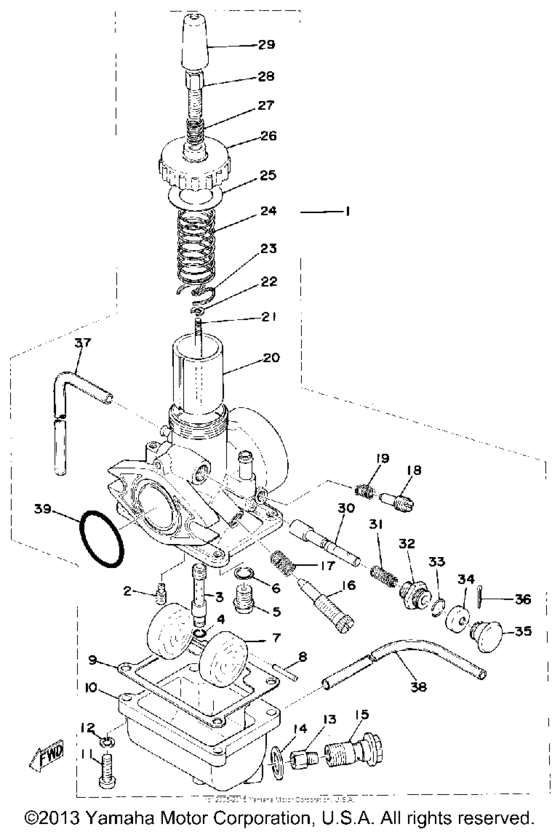

Carburetor Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
463-14101-90-00
Carburetor Assembly 1
|
463-14101-90-00 |
— | ||
|
2
|
2
260-14142-22-A0 Jet, Pilot #22.5#22.5 |
260-14142-22-A0 |
from US $11.50 |
||
|
3
|
3
437-14141-36-00
Nozzle, Main
|
437-14141-36-00 |
— | ||
|
4
|
4
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $3.04 |
||
|
5
|
5
353-14190-15-00 Needle Valve Assembly |
353-14190-15-00 |
from US $45.32 |
||
|
6
|
6
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
7
|
7
304-14185-00-00 Float |
304-14185-00-00 |
from US $26.95 |
||
| replacement | |||||
|
7
|
7
4NR-14185-00-00 Float |
4NR-14185-00-00 |
from US $40.48 |
||
|
8
|
8
137-14186-00-01
New Genuine Part
IN PRICE BOOK |
137-14186-00-01 |
— | ||
|
9
|
9
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $4.04 |
||
|
10
|
10
437-14181-00-00
Body, Float Chmbr 1
|
437-14181-00-00 |
— | ||
|
11
|
11
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
11
|
11
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
137-14143-22-A0 Jet, Main #110Jet, main (110) #110 U.RSTD |
137-14143-22-A0 |
from US $10.37 |
||
|
13
|
13
137-14143-24-00 Jet, Main (#120)Jet, main (120) #120 #120 U.R |
137-14143-24-00 |
from US $7.36 |
||
|
13
|
13
137-14143-26-A0 Jet, Main #130Jet, main (130) |
137-14143-26-A0 |
from US $9.95 |
||
|
13
|
13
137-14143-18-00 Jet, Main (#90)#90 U.R |
137-14143-18-00 |
US $4.39 |
||
|
13
|
13
137-14143-20-00 Jet, Main (#100)#100 U.R |
137-14143-20-00 |
from US $10.35 |
||
|
14
|
14
304-14198-00-00 Gasket |
304-14198-00-00 |
from US $8.78 |
||
|
15
|
15
248-14166-00-00
Bolt, Banjo
|
248-14166-00-00 |
— | ||
| replacement | |||||
|
15
|
15
479-14166-00-00
Bolt, Banjo
|
479-14166-00-00 |
— | ||
|
16
|
16
304-14122-00-00 Screw, Throttle |
304-14122-00-00 |
US $22.39 |
||
|
17
|
17
137-14133-00-00 Spring, Throttle Stop |
137-14133-00-00 |
from US $5.10 |
||
|
18
|
18
22K-14104-00-00 Air Screw Set |
22K-14104-00-00 |
from US $12.13 |
||
|
19
|
19
174-14134-00-00 Spring, Air Adjusting |
174-14134-00-00 |
from US $7.79 |
||
|
20
|
20
304-14112-20-00
Valve,throttle 1
|
304-14112-20-00 |
— | ||
| replacement | |||||
|
20
|
20
53V-14112-20-00
Valve, Throttle 1
|
53V-14112-20-00 |
— | ||
|
21
|
21
152-14116-10-00 Needle |
152-14116-10-00 |
from US $20.23 |
||
|
22
|
22
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
22
|
22
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
23
|
23
137-14136-00-00 Seat, Spring |
137-14136-00-00 |
US $16.20 |
||
|
24
|
24
3X3-14131-00-00 Spring, Thrtl Valve |
3X3-14131-00-00 |
from US $14.45 |
||
|
25
|
25
193-14126-00-00 Gasket |
193-14126-00-00 |
from US $3.26 |
||
|
26
|
26
193-14158-00-00 Top, Mixing Chamber |
193-14158-00-00 |
from US $12.29 |
||
|
27
|
27
193-14133-00-00
Spring, Thrtl Stop
|
193-14133-00-00 |
— | ||
|
28
|
28
193-14124-26-00
Screw, Cable Adjusting
|
193-14124-26-00 |
— | ||
|
29
|
29
307-14169-10-00 Cap |
307-14169-10-00 |
from US $9.97 |
||
|
30
|
30
304-14171-00-00
Plunger, Starter
|
304-14171-00-00 |
— | ||
|
31
|
31
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
32
|
32
152-14174-00-00 Cap, Plunger |
152-14174-00-00 |
from US $27.49 |
||
|
33
|
33
353-14138-00-00 Clip, Plunger |
353-14138-00-00 |
from US $7.76 |
||
|
34
|
34
132-14173-00-00 Cover, Plunger Cap |
132-14173-00-00 |
from US $8.08 |
||
|
35
|
35
304-14261-00-00 Holder |
304-14261-00-00 |
from US $31.17 |
||
|
36
|
36
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
37
|
37
183-14197-01-00 Pipe, Airvent |
183-14197-01-00 |
from US $18.56 |
||
|
38
|
38
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
|
39
|
39
241-14147-00-00 O-Ring |
241-14147-00-00 |
from US $9.92 |
||
