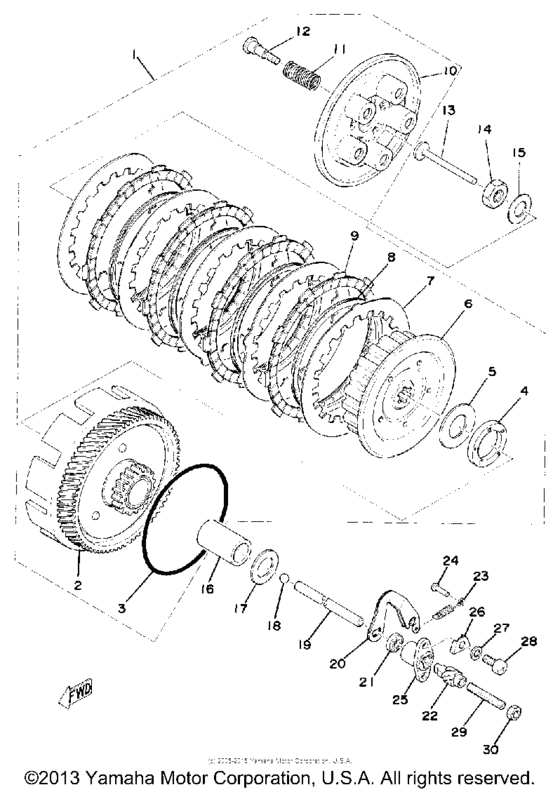

Clutch Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
336-16301-00-00
Clutch Assembly
|
336-16301-00-00 |
— | ||
|
2
|
2
336-16150-00-00
Pri Drvn Gear
|
336-16150-00-00 |
— | ||
|
3
|
3
132-16369-00-00 Ring, Friction |
132-16369-00-00 |
from US $10.67 |
||
|
4
|
4
93341-22302-00
Bearing, Flat #41
|
93341-22302-00 |
— | ||
|
5
|
5
276-16154-00-00 Plate, Thrust 1 |
276-16154-00-00 |
US $13.74 |
||
|
6
|
6
132-16371-02-00 Boss, Clutch |
132-16371-02-00 |
US $75.44 |
||
|
7
|
7
336-16324-00-00 Plate, Clutch 1 |
336-16324-00-00 |
from US $8.42 |
||
| replacement | |||||
|
7
|
7
336-16324-10-00 PLATE, CLUTCH 1 |
336-16324-10-00 |
from US $2.36 |
||
|
8
|
8
137-16367-00-00 Ring, Cushion |
137-16367-00-00 |
from US $11.33 |
||
|
9
|
9
132-16321-01-00 Plate, Friction |
132-16321-01-00 |
from US $24.37 |
||
| replacement | |||||
|
9
|
9
3HA-16321-00-00 Plate, Friction |
3HA-16321-00-00 |
from US $7.42 |
||
|
10
|
10
132-16351-00-00 Plate, Pressure 1 |
132-16351-00-00 |
from US $13.82 |
||
|
11
|
11
90501-20122-00 Spring, Compression |
90501-20122-00 |
from US $3.83 |
||
|
12
|
12
901-49051-47-00
Screw, Specl Shape
|
901-49051-47-00 |
— | ||
|
13
|
13
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $18.99 |
||
|
14
|
14
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.31 |
||
|
15
|
15
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
15
|
15
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
16
|
16
90560-17146-00 Spacer |
90560-17146-00 |
from US $20.26 |
||
|
17
|
17
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
18
|
18
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
19
|
19
276-16357-00-00 Rod, Push 2 (2)2 |
276-16357-00-00 |
from US $10.24 |
||
|
20
|
20
463-16342-01-00 Lever, Push |
463-16342-01-00 |
US $17.43 |
||
|
21
|
21
93104-10085-00 Oil Seal, So-Type |
93104-10085-00 |
from US $2.36 |
||
|
22
|
22
241-16341-01-00 Screw, Push |
241-16341-01-00 |
from US $16.01 |
||
|
23
|
23
90506-07066-00 Spring, Tension |
90506-07066-00 |
from US $4.25 |
||
|
24
|
24
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
25
|
25
314-16396-01-00 Housing, Push Screw |
314-16396-01-00 |
from US $28.48 |
||
|
26
|
26
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
26
|
26
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
26
|
26
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
28
|
28
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
29
|
29
901-13060-13-00 Bolt, Set |
901-13060-13-00 |
from US $2.69 |
||
|
30
|
30
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
30
|
30
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
