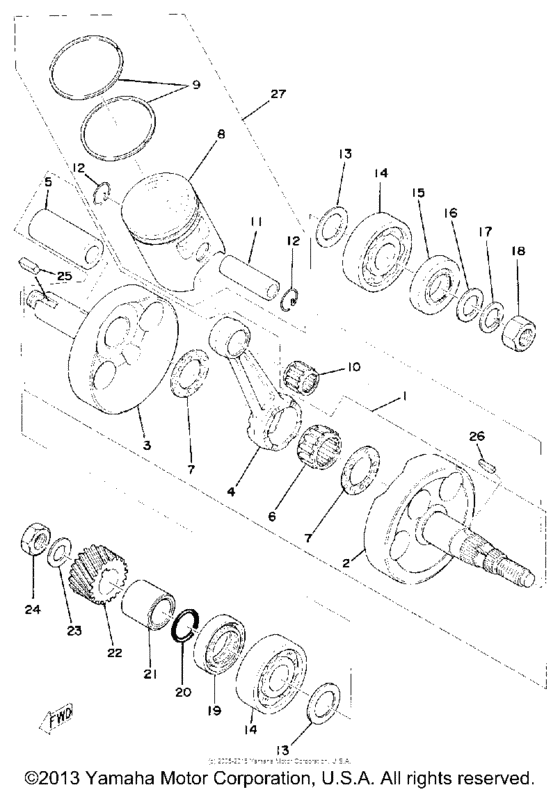

Crankshaft & Piston Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M7-11400-00-00 Crankshaft Assembly |
1M7-11400-00-00 |
from US $494.09 |
||
|
2
|
2
427-11412-00-00
Crank 1
|
427-11412-00-00 |
— | ||
|
3
|
3
336-11422-01-00
Crank 2
|
336-11422-01-00 |
— | ||
|
4
|
4
1M7-11651-00-00 Rod, Connecting |
1M7-11651-00-00 |
from US $129.56 |
||
|
5
|
5
5E2-11681-00-00 Pin, Crank 1 |
5E2-11681-00-00 |
from US $34.94 |
||
|
6
|
6
93310-422E7-00 Bearing, Cyl. #10Bearing, cylindrical |
93310-422E7-00 |
from US $11.76 |
||
|
7
|
7
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $4.38 |
||
|
8
|
8
463-11631-01-96
Piston Std
|
463-11631-01-96 |
— | ||
|
8
|
8
463-11635-01-00
Piston 1 O/s 0.25
O/S 0.25 ALTERNATE PARTS |
463-11635-01-00 |
— | ||
|
8
|
8
463-11638-01-00
Piston 4 O/s 1.00
O/S 1.00 ALTERNATE PARTS |
463-11638-01-00 |
— | ||
|
8
|
8
463-11637-01-00
Piston 3 O/s 0.75
O/S 0.75 ALTERNATE PARTS |
463-11637-01-00 |
— | ||
|
8
|
8
463-11636-01-00
Piston 2 O/s 0.50
O/S 0.50 ALTERNATE PARTS |
463-11636-01-00 |
— | ||
|
9
|
9
335-11601-00-00 Piston Ringset Std |
335-11601-00-00 |
from US $42.44 |
||
|
9
|
9
335-11601-10-00 Piston Ringset 1St1ST ALTERNATE PARTS |
335-11601-10-00 |
from US $38.27 |
||
|
9
|
9
335-11601-30-00 Piston Ringset 3Rd3RD ALTERNATE PARTS |
335-11601-30-00 |
from US $34.40 |
||
|
9
|
9
335-11601-20-00 Piston Ringset 2Nd (+0.50)2ND ALTERNATE PARTS |
335-11601-20-00 |
from US $34.40 |
||
|
9
|
9
335-11601-40-00 Piston Ringset 4Th4TH ALTERNATE PARTS |
335-11601-40-00 |
US $46.01 |
||
|
10
|
10
93310-21403-00 Bearing |
93310-21403-00 |
from US $7.36 |
||
|
11
|
11
131-11633-00-00 Pin, Piston |
131-11633-00-00 |
from US $15.58 |
||
|
12
|
12
93450-15023-00 Circlip |
93450-15023-00 |
from US $1.70 |
||
|
13
|
13
136-11561-00-04
Shim, Crank 1
U.R. |
136-11561-00-04 |
— | ||
|
13
|
13
136-11561-00-03
Shim, Crank 1
U.R. |
136-11561-00-03 |
— | ||
|
13
|
13
136-11561-00-05
Shim, Crank 1
U.R. |
136-11561-00-05 |
— | ||
|
13
|
13
136-11561-00-06
Shim, Crank 1
U.R. |
136-11561-00-06 |
— | ||
|
13
|
13
136-11561-00-07
Shim, Crank 1
U.R. |
136-11561-00-07 |
— | ||
|
13
|
13
136-11561-00-08
Shim, Crank 1
U.R. |
136-11561-00-08 |
— | ||
|
14
|
14
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
14
|
14
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
15
|
15
931-02204-47-00 Oil Seal |
931-02204-47-00 |
from US $4.72 |
||
|
16
|
16
90201-12535-00 Washer, Plate |
90201-12535-00 |
from US $2.27 |
||
|
17
|
17
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
17
|
17
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
18
|
18
90170-12175-00 Nut |
90170-12175-00 |
from US $2.55 |
||
|
19
|
19
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $6.40 |
||
|
20
|
20
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $2.02 |
||
|
21
|
21
90387-20175-00 Collar |
90387-20175-00 |
from US $8.78 |
||
|
22
|
22
336-16111-00-00 Gear, Primary DriveGear, primary drive 19T |
336-16111-00-00 |
US $83.18 |
||
|
23
|
23
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
23
|
23
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
24
|
24
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
24
|
24
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
25
|
25
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
26
|
26
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
27
|
27
463-11630-00-00
Piston Kit Std
12 |
463-11630-00-00 |
— | ||
|
27
|
27
463-11630-20-00
Piston Kit 2Nd
2ND 12 |
463-11630-20-00 |
— | ||
