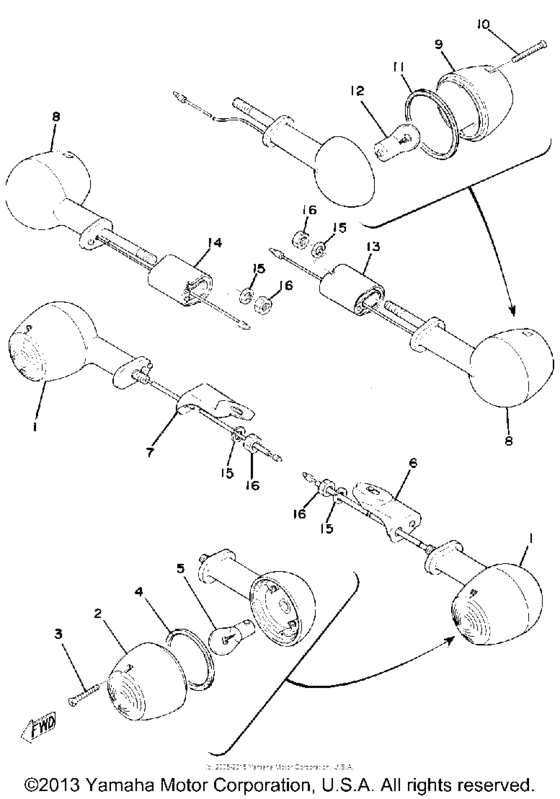

Flasher lamp Diagram Yamaha RS100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- RS100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
232-83320-62-93
Frt Flshr Lite Assembly
|
232-83320-62-93 |
— | ||
|
2
|
2
183-83312-70-00 Lens, Flasher |
183-83312-70-00 |
from US $20.57 |
||
|
3
|
3
183-83333-71-00 Screw, Lens Fitting |
183-83333-71-00 |
from US $5.95 |
||
|
4
|
4
183-83313-70-00 Gasket, Flshr Lens |
183-83313-70-00 |
from US $6.09 |
||
|
5
|
5
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
5
|
5
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
6
|
6
507-83318-00-00
Stay, Flasher 1
|
507-83318-00-00 |
— | ||
|
7
|
7
507-83328-00-00
Stay, Flasher 2
|
507-83328-00-00 |
— | ||
|
8
|
8
388-83330-60-93
R Flshr Lite Assembly
|
388-83330-60-93 |
— | ||
|
9
|
9
211-83332-75-00
Lens, Flasher
|
211-83332-75-00 |
— | ||
|
10
|
10
183-83333-71-00 Screw, Lens Fitting |
183-83333-71-00 |
from US $5.95 |
||
|
11
|
11
183-83313-70-00 Gasket, Flshr Lens |
183-83313-70-00 |
from US $6.09 |
||
|
12
|
12
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
12
|
12
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
13
|
13
353-83316-30-00
Collar, Flasher 1
|
353-83316-30-00 |
— | ||
|
14
|
14
353-83326-30-00 Collar, Flasher 2 |
353-83326-30-00 |
US $58.52 |
||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
